Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.14.100.041/0000SWITCH TACTILE SPST-NO 0.25A 35V RAFI USA |
1,625 | 6.69 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Red | - | 296gf | - | - | -25°C ~ 70°C |
|

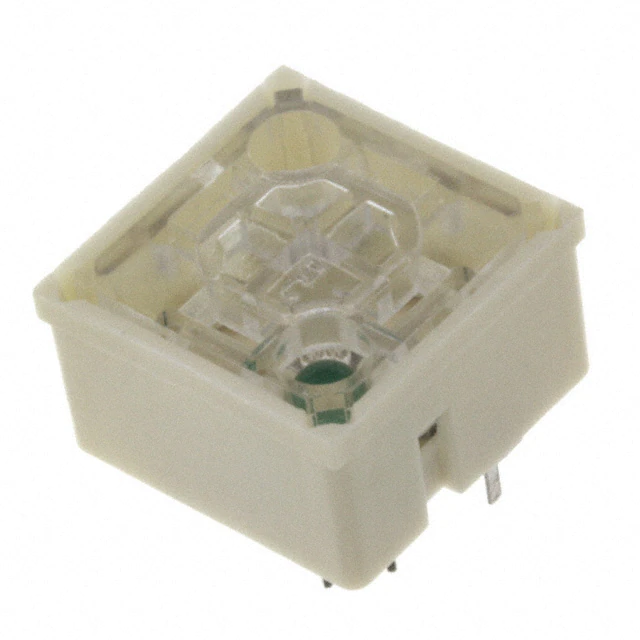

3.14.100.032/0000SWITCH TACTILE SPST-NO 0.1A 35V RAFI USA |
3,669 | 6.93 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|

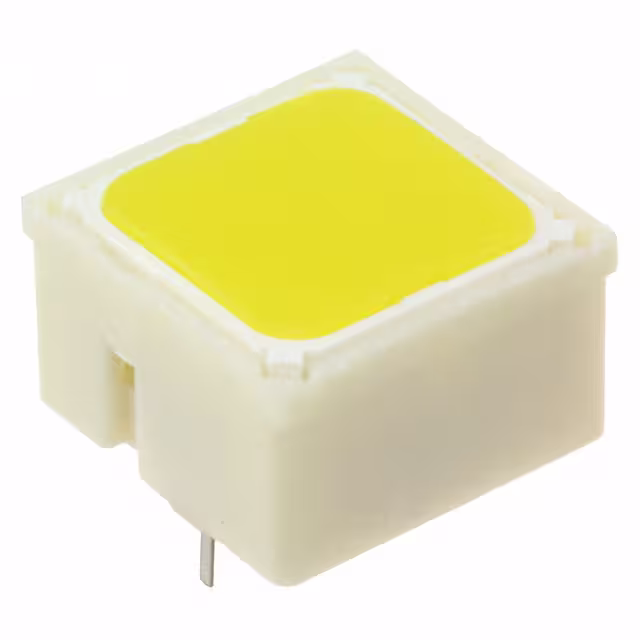

3.14.200.023/0000SWITCH TACTILE SPST-NO 0.25A 35V RAFI USA |
2,171 | 14.18 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Yellow | - | 296gf | - | - | -25°C ~ 70°C |
|

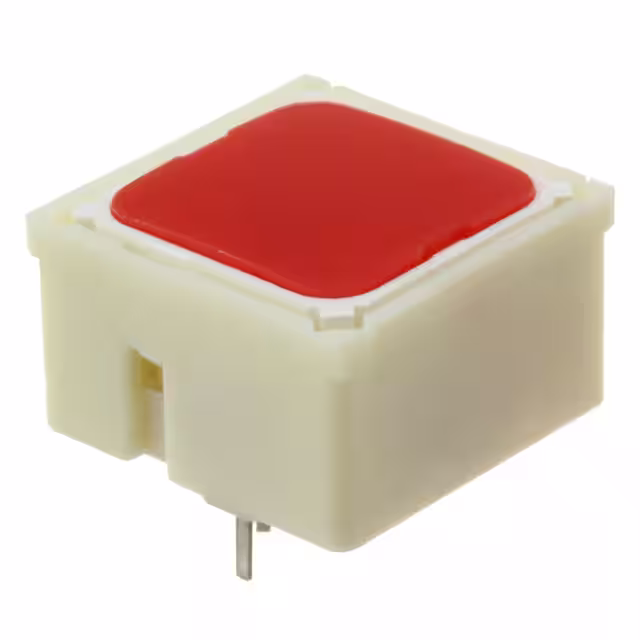

3.14.200.021/0000SWITCH TACTILE SPST-NO 0.25A 35V RAFI USA |
4,689 | 14.18 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Red | - | 296gf | - | - | -25°C ~ 70°C |
|

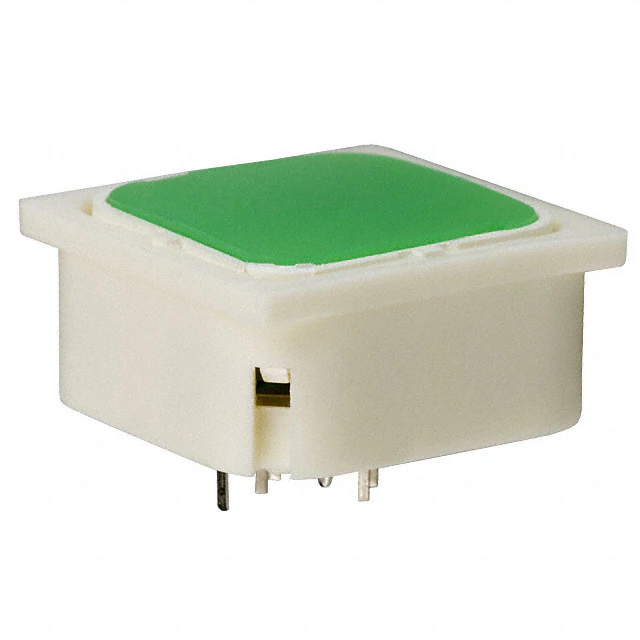

3.14.002.012/0000SWITCH TACTILE SPST-NO 0.1A 42V RAFI USA |
2,637 | 14.23 |
|
Datasheet |
RF19 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Green | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|

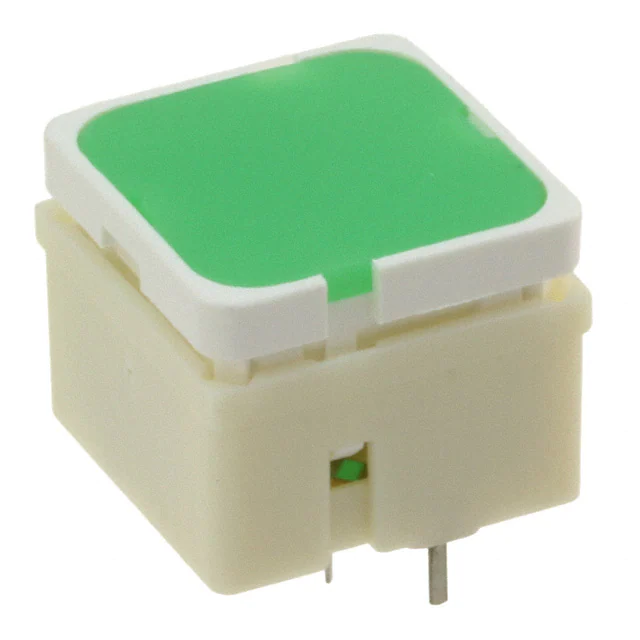

3.14.200.732/0000SWITCH TACTILE SPST-NO 0.1A 35V RAFI USA |
1,476 | 15.22 |
|
Datasheet |
RF15H | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|

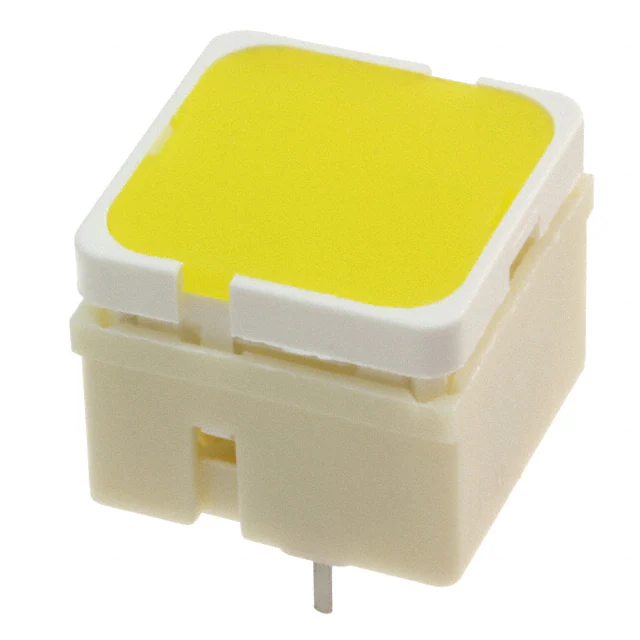

3.14.200.733/0000SWITCH TACTILE SPST-NO 0.1A 35V RAFI USA |
1,715 | 14.78 |
|
Datasheet |
RF15H | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Yellow | - | 296gf | - | - | -25°C ~ 70°C |
|
1.14.005.006/0000SWITCH TACTILE SPST-NO 0.1A 35V RAFI USA |
100 | 0.00 |
|
Datasheet |
MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.85mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 612gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
1.14.005.106/0000SWITCH TACTILE SPST-NO 0.1A 35V RAFI USA |
3,358 | 0.00 |
|
Datasheet |
MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.85mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 408gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
|
1.14.005.116/0000SWITCH TACTILE SPST-NO 0.1A 35V RAFI USA |
3,092 | 0.00 |
|
Datasheet |
MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.85mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 816gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
