Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-14E-100-C2-R0HEATSINK 45X45X25MM R-TAB T766 |
1,303 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-15E-66-C2-R0HEATSINK 40X40X35MM L-TAB T766 |
2,967 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-15E-70-C2-R0HEATSINK 45X45X25MM L-TAB T766 |
1,929 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-15E-96-C2-R0HEATSINK 40X40X35MM R-TAB T766 |
3,743 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.63°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-15E-100-C2-R0HEATSINK 45X45X25MM R-TAB T766 |
3,931 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-16E-66-C2-R0HEATSINK 40X40X35MM L-TAB T766 |
3,424 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-16E-70-C2-R0HEATSINK 45X45X25MM L-TAB T766 |
4,327 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-16E-100-C2-R0HEATSINK 45X45X25MM R-TAB T766 |
2,365 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-70-C2-R0HEATSINK 45X45X25MM L-TAB T766 |
1,842 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-100-C2-R0HEATSINK 45X45X25MM R-TAB T766 |
1,117 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-17E-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
3,060 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18E-66-C2-R0HEATSINK 40X40X35MM L-TAB T766 |
2,949 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18E-70-C2-R0HEATSINK 45X45X25MM L-TAB T766 |
4,566 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18E-96-C2-R0HEATSINK 40X40X35MM R-TAB T766 |
4,982 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.63°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-66-C2-R0HEATSINK 40X40X35MM L-TAB T766 |
2,214 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-70-C2-R0HEATSINK 45X45X25MM L-TAB T766 |
3,123 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-100-C2-R0HEATSINK 45X45X25MM R-TAB T766 |
3,974 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
1,504 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

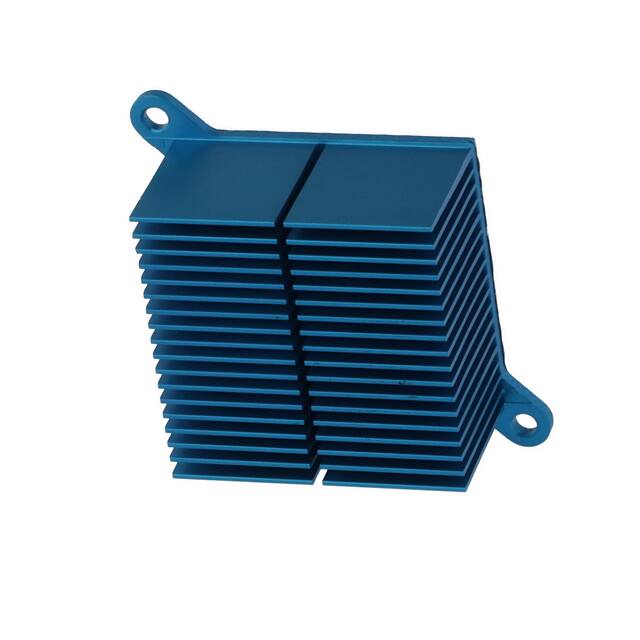

ATS-21E-100-C2-R0HEATSINK 45X45X25MM R-TAB T766 |
3,351 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
2,696 | 7.85 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
