SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T820167504DHSCR PHASE CTRL MOD 1600V 750A |
2,359 | 0.00 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 750 A | 1175 A | 3 V | 150 mA | 10950A, 12000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
xxx-xxIO1.jpg)
|
MCMA265P1600KASCR MODULE 1.6KV 260A Y1-CU |
5,228 | 0.00 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 260 A | 408 A | 2 V | 150 mA | 8500A, 9180A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
VS-VSKT170-16PBFMODULE DIODE SCR 170A MAGN-A-PAK |
9,064 | 0.00 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 170 A | 377 A | 3 V | 200 mA | 5100A, 5350A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
ND421825SCR MOD ISO DUAL 1800V 250A |
3,637 | 0.00 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 250 A | 393 A | 3 V | 150 mA | 8800A @ 60Hz | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
MDMA660U1600PT-PCMDMA660U1600PTEH-PC |
4,993 | 0.00 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F1857HD1000MODULE SCR/DIODE 55A 380VAC |
4,053 | 0.00 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

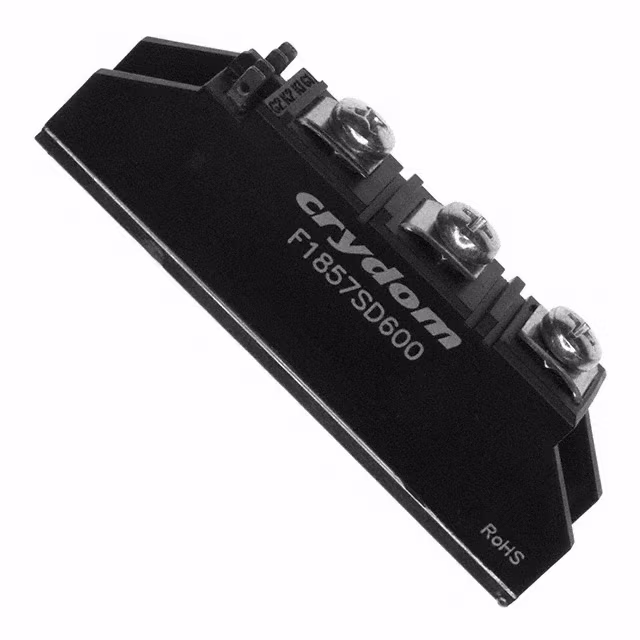

F1857SD600MODULE SCR/DIODE 55A 240VAC |
3,286 | 0.00 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MDNA300P2200PT-PCMDNA300P2200PTSF-PC |
2,274 | 0.00 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TT180N16KOFHPSA2MODULE |
7,513 | 0.00 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 180 A | 285 A | 2 V | 150 mA | 4800A @ 50Hz | 200 mA | 130°C (TJ) | - | - | Chassis Mount |
|
|
T9G0041003DHSCR PHASE CTRL MOD 400V 1000A |
4,744 | 0.00 |
|
Datasheet |
- | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 400 V | 1000 A | 1590 A | 3 V | 200 mA | 15500A, 17000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1892CAH400MODULE SCR/DIODE 90A 120VAC |
7,180 | 0.00 |
|
Datasheet |
F18 | Module | Bulk | Obsolete | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 400 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T880N14TOFXPSA1SCR MODULE 1800V 1750A DO200AB |
3,671 | 0.00 |
|
Datasheet |
- | DO-200AB, B-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 880 A | 1750 A | 2.2 V | 250 mA | 17500A @ 50Hz | 300 mA | -40°C ~ 120°C | - | - | Clamp On |
|
|
T9G0041203DHSCR PHASE CTRL MOD 400V 1200A |
2,814 | 0.00 |
|
Datasheet |
- | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 400 V | 1200 A | 1880 A | 3 V | 200 mA | 24650A, 27000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TT140N22KOFHPSA2THYR / DIODE MODULE DK |
9,057 | 0.00 |
|
Datasheet |
TT | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 159 A | 250 A | 2 V | 150 mA | 4000A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD255-18IO1MOD THYRISTOR/DIODE 1800V Y1-CU |
2,843 | 0.00 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 250 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCO500-14IO1MOD THYRISTOR SGL 1400V Y1-CU |
9,045 | 0.00 |
|
Datasheet |
- | Y1-CU | Box | Active | Single | 1 SCR | 1.4 kV | 560 A | 880 A | 2 V | 300 mA | 17000A, 16000A | 300 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
T820187504DHSCR PHASE CTRL MOD 1800V 750A |
2,698 | 0.00 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.8 kV | 750 A | 1175 A | 3 V | 150 mA | 10950A, 12000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
ND431825SCR MOD ISO DUAL 1800V 250A |
8,357 | 0.00 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 250 A | 393 A | 3 V | 150 mA | 8800A @ 60Hz | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKV250-12PBFMODULE THYRISTOR 250A MAGN-A-PAK |
7,688 | 0.00 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Last Time Buy | Common Anode - All SCRs | 2 SCRs | 1.2 kV | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
VS-VSKH250-04PBFMODULE DIODE 250A MAGN-A-PAK |
3,371 | 0.00 |
|
Datasheet |
- | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
