Single Zener Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CZRER52C13DIODE ZENER 13V 150MW 503 |
5,837 | 0.00 |
|
Datasheet |
- | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 13 V | ±5% | 150 mW | 25 Ohms | 100 nA @ 10 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|

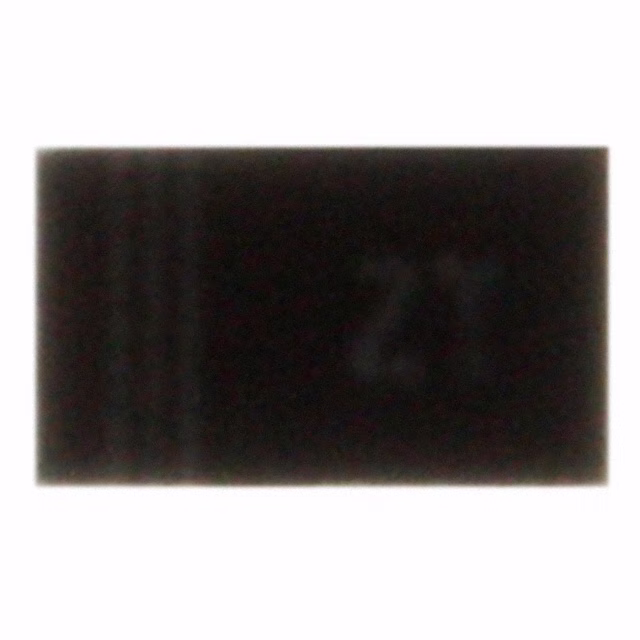

CZRER52C22DIODE ZENER 22V 150MW 503 |
9,838 | 0.00 |
|
Datasheet |
- | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 22 V | ±5% | 150 mW | 55 Ohms | 100 nA @ 17 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
|
CZRER52C24DIODE ZENER 24V 150MW 503 |
5,679 | 0.00 |
|
Datasheet |
- | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 24 V | ±5% | 150 mW | 80 Ohms | 100 nA @ 18 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
|
CZRER52C27DIODE ZENER 27V 150MW 503 |
4,883 | 0.00 |
|
Datasheet |
- | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 27 V | ±5% | 150 mW | 80 Ohms | 100 nA @ 20 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
CZRER52C3DIODE ZENER 3V 150MW 503 |
5,375 | 0.00 |
|
Datasheet |
- | 0503 (1308 Metric) | Tape & Reel (TR) | Active | 3 V | ±5% | 150 mW | 95 Ohms | 50 µA @ 1 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
|
CZRER52C3V3DIODE ZENER 3.3V 150MW 503 |
2,230 | 0.00 |
|
Datasheet |
- | 0503 (1308 Metric) | Tape & Reel (TR) | Obsolete | 3.3 V | ±5% | 150 mW | 95 Ohms | 25 µA @ 1 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0503 (1308 Metric) |
|
SMAJ5918BE3/TR13DIODE ZENER 5.1V 3W DO214AC |
9,026 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Obsolete | 5.1 V | ±5% | 3 W | 4 Ohms | 5 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
BZX85C82-TRDIODE ZENER 82V 1.3W DO204AL |
4,440 | 0.00 |
|
Datasheet |
BZX85 | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | 82 V | ±5% | 1.3 W | 200 Ohms | 500 nA @ 62 V | - | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | DO-204AL (DO-41) |
|
BZX84C27 TRDIODE ZENER 27V 350MW SOT23 |
9,121 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 27 V | ±5% | 350 mW | 80 Ohms | 50 nA @ 18.9 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOT-23 |
|
BZG05C9V1-HE3-TRDIODE ZENER 9.1V 1.25W DO214AC |
6,287 | 0.00 |
|
Datasheet |
BZG05C | DO-214AC, SMA | Tape & Reel (TR) | Obsolete | 9.1 V | ±5% | 1.25 W | 5 Ohms | 1 µA @ 6.8 V | 1.2 V @ 200 mA | 150°C | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
BZX884S-B13YLDIODE ZENER 13V 365MW DFN1006BD |
2,071 | 0.00 |
|
Datasheet |
- | SOD-882 | Tape & Reel (TR) | Obsolete | 13 V | ±2.31% | 365 mW | 30 Ohms | 100 nA @ 8 V | 900 mV @ 10 mA | 150°C (TJ) | - | - | Surface Mount | DFN1006BD-2 |
|
|
BZX884S-B7V5YLDIODE ZENER 7.5V 365MW DFN1006BD |
5,495 | 0.00 |
|
Datasheet |
- | SOD-882 | Tape & Reel (TR) | Obsolete | 7.5 V | ±2% | 365 mW | 15 Ohms | 1 µA @ 5 V | 900 mV @ 10 mA | 150°C (TJ) | - | - | Surface Mount | DFN1006BD-2 |
|
1SMA4745_R1_00001DIODE ZENER 16V 1W DO214AC |
3,262 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 16 V | ±5% | 1 W | 16 Ohms | 100 nA @ 12.2 V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
1SMA4744_R1_00001DIODE ZENER 15V 1W DO214AC |
5,824 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 15 V | ±5% | 1 W | 14 Ohms | 100 nA @ 11.4 V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
1N4756A_R2_00001DIODE ZENER 47V 1W DO41 |
9,337 | 0.00 |
|
Datasheet |
1N4728A | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | 47 V | ±5% | 1 W | 80 Ohms | 100 nA @ 35.8 V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-41 |
|
|
1SMA4752_R1_00001DIODE ZENER 33V 1W DO214AC |
3,214 | 0.00 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 33 V | ±5% | 1 W | 45 Ohms | 100 nA @ 25.1 V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SZMM5Z11VT5GDIODE ZENER 11V 500MW SOD523 |
2,058 | 0.00 |
|
Datasheet |
SZMM5ZxxxT1G | SC-79, SOD-523 | Tape & Reel (TR) | Active | 11 V | ±5.45% | 500 mW | 20 Ohms | 100 nA @ 8 V | 900 mV @ 10 mA | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
|
SZMM5Z39VT1GDIODE ZENER 39V 500MW SOD523 |
6,649 | 0.00 |
|
Datasheet |
SZMM5ZxxxT1G | SC-79, SOD-523 | Tape & Reel (TR) | Active | 39 V | ±5.13% | 500 mW | 130 Ohms | 50 nA @ 27.3 V | 900 mV @ 10 mA | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
CZRB5345B-HFDIODE ZENER 8.7V 5W DO214AA |
9,073 | 0.00 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | 8.7 V | ±5% | 5 W | 2 Ohms | 10 µA @ 6.6 V | 1.2 V @ 200 mA | -55°C ~ 150°C | - | - | Surface Mount | DO-214AA (SMB) |
|
BZD27C200PHR3GDIODE ZENER 200V 1W SUB SMA |
7,418 | 0.00 |
|
Datasheet |
- | DO-219AB | Tape & Reel (TR) | Active | 200 V | ±6% | 1 W | 750 Ohms | 1 µA @ 150 V | 1.2 V @ 200 mA | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Sub SMA |
