Single Zener Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DL4743A-TPDIODE ZENER 13V 1W MELF |
8,434 | 0.00 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 13 V | ±5% | 1 W | 10 Ohms | 5 µA @ 9.9 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL4750A-TPDIODE ZENER 27V 1W MELF |
7,987 | 0.00 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 27 V | ±5% | 1 W | 35 Ohms | 5 µA @ 20.6 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
DL5227B-TPDIODE ZENER 3.6V 500MW MINI MELF |
4,633 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 3.6 V | ±5% | 500 mW | 24 Ohms | 15 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5228B-TPDIODE ZENER 3.9V 500MW MINI MELF |
5,204 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 3.9 V | ±5% | 500 mW | 23 Ohms | 10 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5229B-TPDIODE ZENER 4.3V 500MW MINI MELF |
2,122 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 4.3 V | ±5% | 500 mW | 22 Ohms | 5 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|

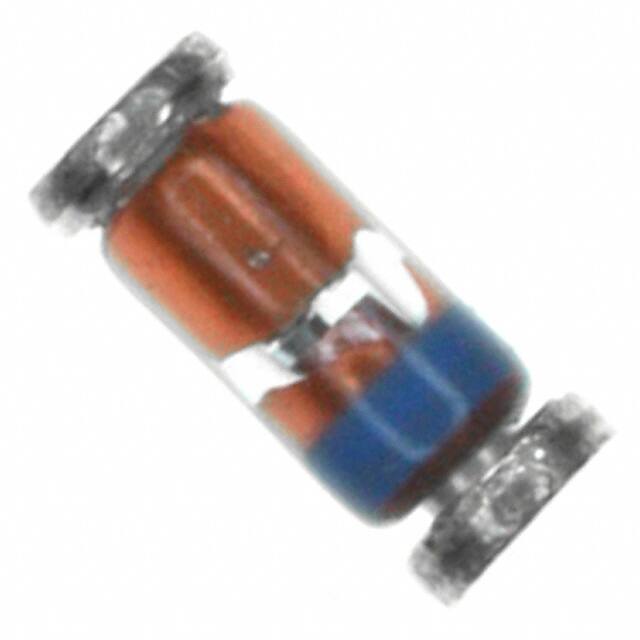

DL5236B-TPDIODE ZENER 7.5V 500MW MINI MELF |
8,999 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 7.5 V | ±5% | 500 mW | 6 Ohms | 3 µA @ 6 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5237B-TPDIODE ZENER 8.2V 500MW MINI MELF |
4,629 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 8.2 V | ±5% | 500 mW | 8 Ohms | 3 µA @ 6.5 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5240B-TPDIODE ZENER 10V 500MW MINI MELF |
2,149 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 10 V | ±5% | 500 mW | 17 Ohms | 3 µA @ 8 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5241B-TPDIODE ZENER 11V 500MW MINI MELF |
2,858 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 11 V | ±5% | 500 mW | 22 Ohms | 2 µA @ 8.4 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5244B-TPDIODE ZENER 14V 500MW MINI MELF |
5,842 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 14 V | ±5% | 500 mW | 15 Ohms | 100 nA @ 10 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5245B-TPDIODE ZENER 15V 500MW MINI MELF |
2,637 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 15 V | ±5% | 500 mW | 16 Ohms | 100 nA @ 11 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5246B-TPDIODE ZENER 16V 500MW MINI MELF |
9,660 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 16 V | ±5% | 500 mW | 17 Ohms | 100 nA @ 12 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5247B-TPDIODE ZENER 17V 500MW MINI MELF |
6,392 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 17 V | ±5% | 500 mW | 19 Ohms | 100 nA @ 13 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5249B-TPDIODE ZENER 19V 500MW MINI MELF |
8,977 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 19 V | ±5% | 500 mW | 23 Ohms | 100 nA @ 14 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|

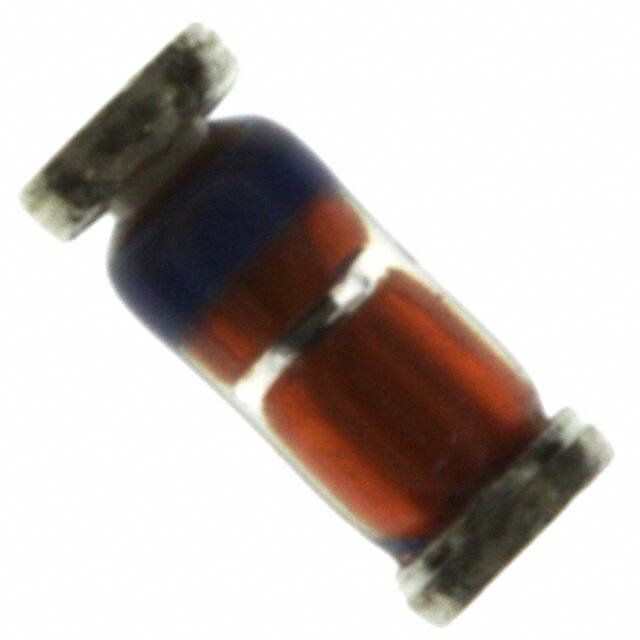

DL5252B-TPDIODE ZENER 24V 500MW MINI MELF |
7,711 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 24 V | ±5% | 500 mW | 33 Ohms | 100 nA @ 18 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5254B-TPDIODE ZENER 27V 500MW MINI MELF |
9,624 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 27 V | ±5% | 500 mW | 41 Ohms | 100 nA @ 21 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5257B-TPDIODE ZENER 33V 500MW MINI MELF |
6,988 | 0.00 |
|
Datasheet |
- | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 33 V | ±5% | 500 mW | 58 Ohms | 100 nA @ 25 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
MMSZ5250ET1GDIODE ZENER 20V 500MW SOD123 |
4,070 | 0.00 |
|
Datasheet |
MMSZ52xxxT1G | SOD-123 | Tape & Reel (TR) | Obsolete | 20 V | ±5% | 500 mW | 25 Ohms | 100 nA @ 15 V | 900 mV @ 10 mA | -55°C ~ 150°C | - | - | Surface Mount | SOD-123 |
|
|
DL4732A-TPDIODE ZENER 4.7V 1W MELF |
5,387 | 0.00 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 4.7 V | ±5% | 1 W | 8 Ohms | 10 µA @ 1 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
|
|
DL4734A-TPDIODE ZENER 5.6V 1W MELF |
4,724 | 0.00 |
|
Datasheet |
- | DO-213AB, MELF | Tape & Reel (TR) | Obsolete | 5.6 V | ±5% | 1 W | 5 Ohms | 10 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | MELF |
