Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MB-V09-531-Q(M)BUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
1,000 | 23.55 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 5 ~ 24V | 2.9kHz | Piezo | Pulse, Medium | - | 95dB @ 24V, 61cm | 5 ~ 15mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
MWV09531QMBUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
1,000 | 23.55 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 5 ~ 24V | 2.6kHz ~ 3kHz | Piezo | Warble, Medium | - | 95dB @ 24V, 61cm | 5 ~ 15mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|

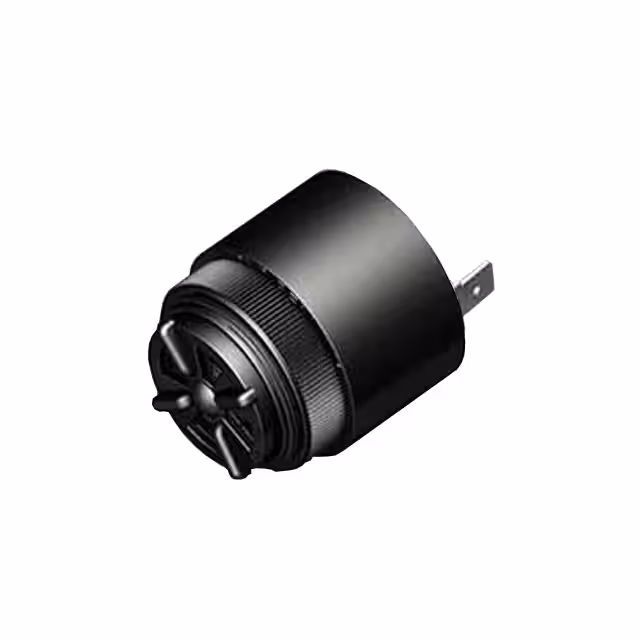

MB-V09-531-Q(U)BUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
1,000 | 23.55 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 5 ~ 24V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 24V, 61cm | 5 ~ 15mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
MB-V09-531-Q(F)BUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
1,000 | 23.55 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 5 ~ 24V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 24V, 61cm | 5 ~ 15mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
MW-V09-550-QBUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
1,000 | 23.55 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 15 ~ 36V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 36V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
MW-V09-531-Q(F)BUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
1,000 | 23.55 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 5 ~ 24V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 24V, 61cm | 5 ~ 15mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|

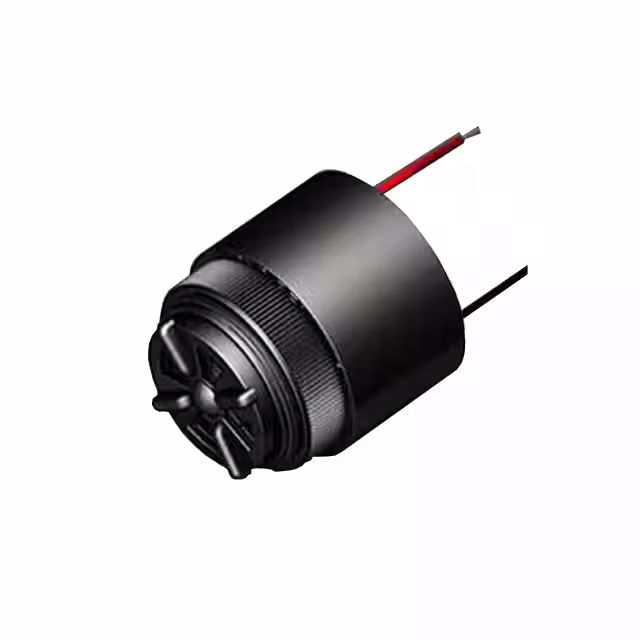

MW-V09-550-WBUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
1,000 | 23.55 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 15 ~ 36V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 36V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
.jpg)
|
XB-V09-312-S(U)BUZZER PIEZO 35.8MM PNL MNT Floyd Bell Inc |
1,000 | 23.75 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 12V | 2.9kHz | Piezo | Pulse, Slow | - | 103dB @ 12V, 61cm | 15 ~ 40mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
.jpg)
|
XB-V09-312-S(S)BUZZER PIEZO 35.8MM PNL MNT Floyd Bell Inc |
1,000 | 23.75 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 12V | 2.9kHz | Piezo | Pulse, Slow | - | 103dB @ 12V, 61cm | 15 ~ 40mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
.jpg)
|
XB-V09-312-S(F)BUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
1,000 | 23.75 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 12V | 2.9kHz | Piezo | Pulse, Fast | - | 103dB @ 12V, 61cm | 15 ~ 40mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
