Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWV09531SMBUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
1,000 | 23.76 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 5 ~ 24V | 2.6kHz ~ 3kHz | Piezo | Warble, Medium | - | 95dB @ 24V, 61cm | 5 ~ 15mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|

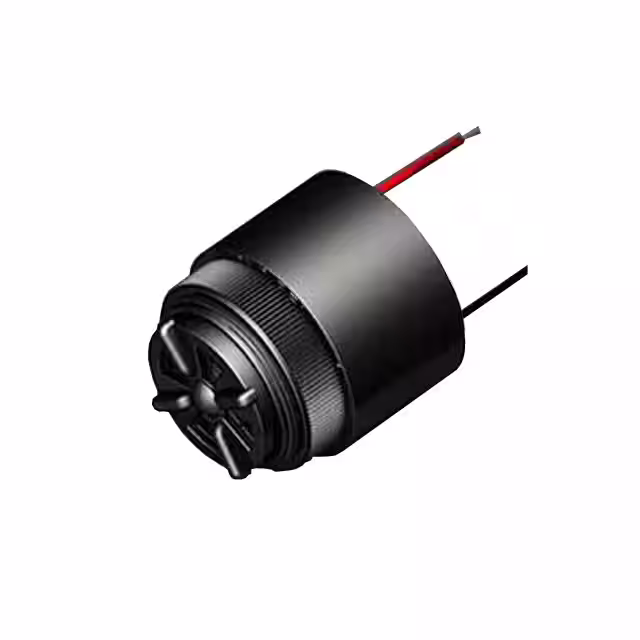

MB-V09-531-W(F)BUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
1,000 | 23.76 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 5 ~ 24V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 24V, 61cm | 5 ~ 15mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
.jpg)
|

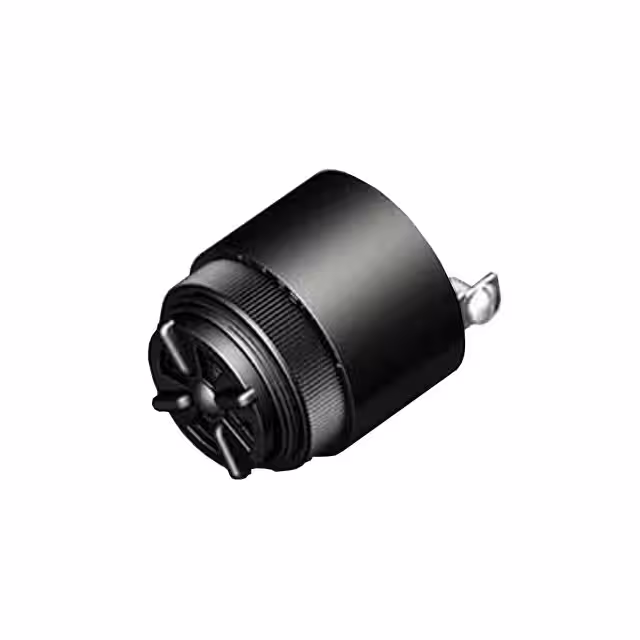

MW-V09-531-S(F)BUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
999 | 23.76 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 5 ~ 24V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 24V, 61cm | 5 ~ 15mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
MW-V09-550-SBUZZER PIEZO 35.81MM PNL MNT Floyd Bell Inc |
997 | 23.76 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 15 ~ 36V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 36V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
UB-05-515-P(S)BUZZER PIEZO 35.56MM TH Floyd Bell Inc |
1,000 | 23.78 |
|
Datasheet |
Ultra Loud Beep | Bulk | Active | - | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Pulse, Slow | - | 97dB @ 5V, 61cm | 30 ~ 60mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.400" Dia (35.56mm) |
.jpg)
|
UB-05-628-P(F)BUZZER PIEZO 35.56MM TH Floyd Bell Inc |
1,000 | 23.78 |
|
Datasheet |
Ultra Loud Beep | Bulk | Active | - | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Pulse, Fast | - | 93dB @ 6V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.400" Dia (35.56mm) |
.jpg)
|
UW-05-628-P(S)BUZZER PIEZO 35.56MM TH Floyd Bell Inc |
1,000 | 23.78 |
|
- |
Ultra Loud Warble | Bulk | Active | - | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Warble, Slow | - | 93dB @ 6V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.400" Dia (35.56mm) |
.jpg)
|
UW-05-628-P(F)BUZZER PIEZO 35.56MM TH Floyd Bell Inc |
1,000 | 23.78 |
|
Datasheet |
Ultra Loud Warble | Bulk | Active | - | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Warble Fast | - | 93dB @ 6V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.400" Dia (35.56mm) |
.jpg)
|

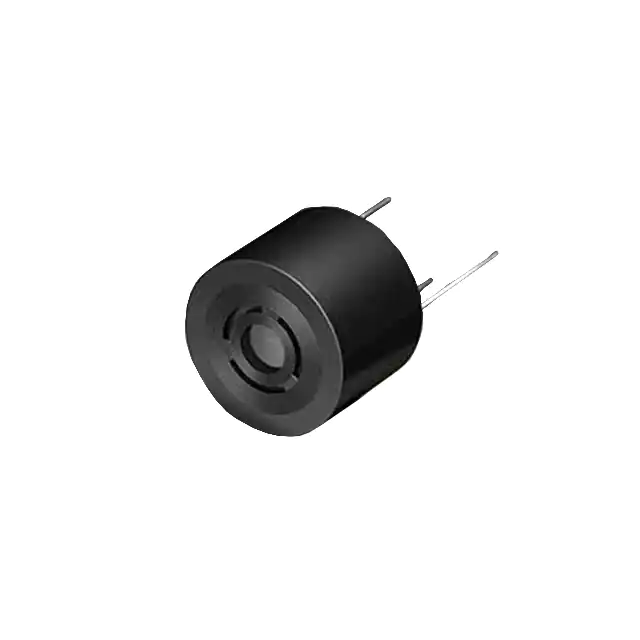

UB-05-515-P(F)BUZZER PIEZO 35.56MM TH Floyd Bell Inc |
1,000 | 23.78 |
|
Datasheet |
Ultra Loud Beep | Bulk | Active | - | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Pulse, Fast | - | 97dB @ 5V, 61cm | 30 ~ 60mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.400" Dia (35.56mm) |
.jpg)
|
UB-05-628-P(S)BUZZER PIEZO 35.56MM TH Floyd Bell Inc |
1,000 | 23.78 |
|
Datasheet |
Ultra Loud Beep | Bulk | Active | - | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Pulse, Slow | - | 93dB @ 6V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 1.400" Dia (35.56mm) |
