Ferrite Cores
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5995001801FERRITE CORE TOROID 1824NH 95 Fair-Rite Products Corp. |
1,281 | 0.00 |
|
Datasheet |
HF | Tray | Active | Toroid | - | 95 | 0.870" (22.10mm) | 1824 nH | ±25% | Ungapped | - | 3000 | 0.02067 | 54.1 | 26.2 | - | 1417.0 | Uncoated | 0.250" (6.35mm) | - | - |
|
5977001601FERRITE CORE TOROID 77 Fair-Rite Products Corp. |
330 | 1.51 |
|
Datasheet |
- | Bulk | Active | Toroid | - | 77 | - | - | ±25% | Ungapped | - | 2000 | - | 76.0 | 47.0 | - | 3530.0 | Uncoated | - | - | - |
|
4077374711FERRITE CORE ROD 77 Fair-Rite Products Corp. |
746 | 1.53 |
|
Datasheet |
- | Bulk | Active | ROD | - | 77 | 0.372" (9.45mm) | - | - | Ungapped | - | 2000 | - | - | - | - | - | Uncoated | - | 1.250" (31.75mm) | - |
|

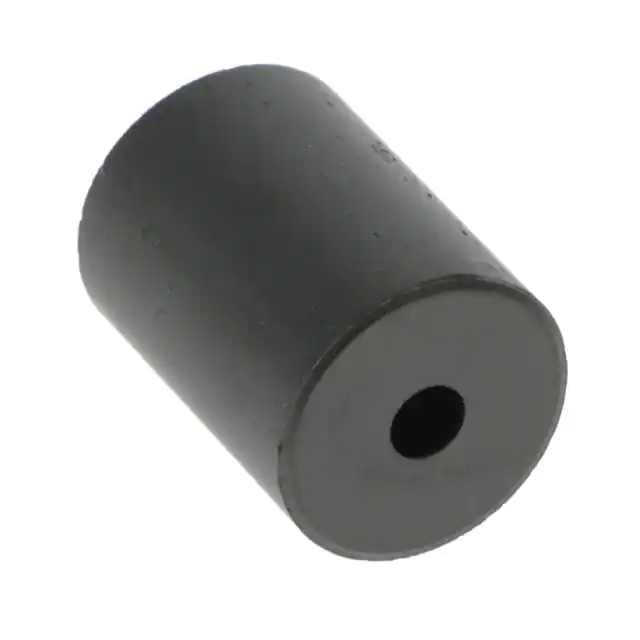

4277242409FERRITE CORE ROD 77 Fair-Rite Products Corp. |
504 | 1.53 |
|
Datasheet |
- | Bulk | Active | ROD | - | 77 | 0.512" (13.00mm) | - | - | Ungapped | - | 2000 | - | - | - | - | - | Uncoated | - | 0.690" (17.50mm) | - |
|

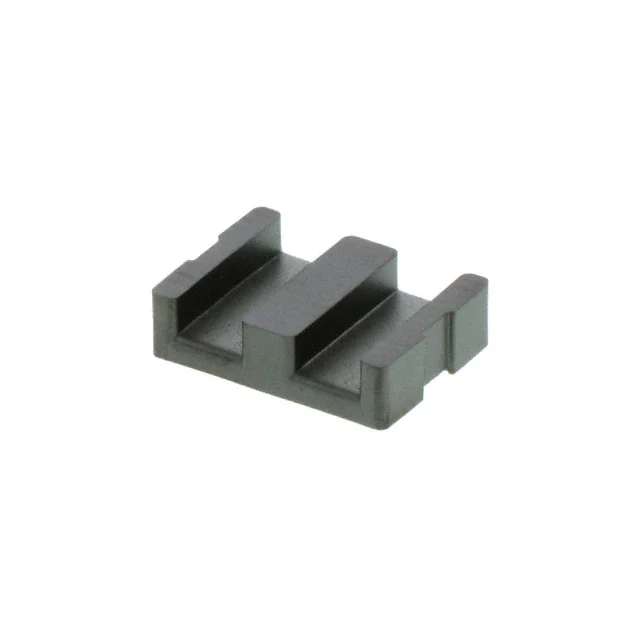

7895400321FERRITE CORE PLANAR E/I 95 SET Fair-Rite Products Corp. |
564 | 1.53 |
|
Datasheet |
- | Bulk | Active | Planar E/I | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 33.0 | 26.1 | 79.0 | 79.0 | 2060.0 | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | - |
|
|
9277002002FERRITE CORE U 77 Fair-Rite Products Corp. |
386 | 1.57 |
|
Datasheet |
- | Box | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 139.0 | 95.0 | 68.0 | - | 6500.0 | Uncoated | - | - | - |
|

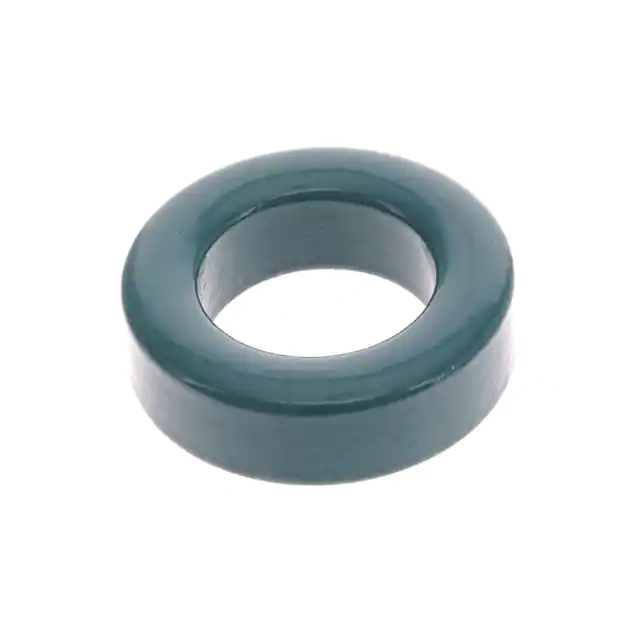

5977000621FERRITE CORE TOROID 1.27UH 77 Fair-Rite Products Corp. |
1,076 | 1.54 |
|
Datasheet |
- | Bulk | Active | Toroid | - | 77 | 0.860" (21.84mm) | 1.27 µH | -30%, +25% | Ungapped | - | 2000 | 2.131 | 51.8 | 24.3 | - | 1261.0 | Plastic | 0.280" (7.11mm) | - | - |
|
|
9277023002FERRITE CORE U 77 Fair-Rite Products Corp. |
390 | 1.79 |
|
Datasheet |
- | Box | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 116.0 | 78.0 | 67.0 | - | 5200.0 | Uncoated | - | - | - |
|
5977001321FERRITE CORE TOROID 1.35UH 77 Fair-Rite Products Corp. |
517 | 1.90 |
|
Datasheet |
- | Bulk | Active | Toroid | - | 77 | 1.043" (26.50mm) | 1.35 µH | -30%, +25% | Ungapped | - | 2000 | 2.0033 | 61.7 | 30.8 | - | 1901.0 | Plastic | 0.280" (7.11mm) | - | - |
|

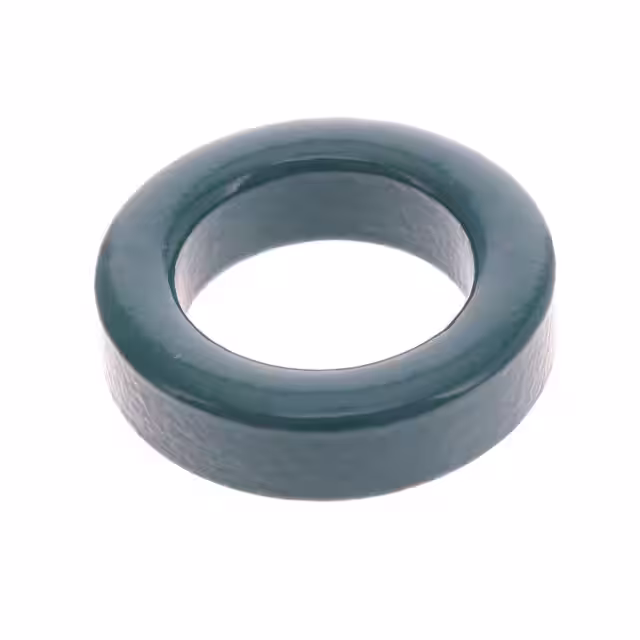

5977001021FERRITE CORE TOROID 1.365UH 77 Fair-Rite Products Corp. |
621 | 2.06 |
|
Datasheet |
- | Bulk | Active | Toroid | - | 77 | 1.187" (30.15mm) | 1.365 µH | -30%, +25% | Ungapped | - | 2000 | 1.9811 | 73.2 | 36.9 | - | 2704.0 | Plastic | 0.325" (8.26mm) | - | - |
