Ferrite Cores
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9498103002FERRITE CORE E SET Fair-Rite Products Corp. |
2,800 | 0.58 |
|
Datasheet |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 181.0 | 39.9 | 22.0 | 21.6 | 878.0 | Uncoated | 0.315" (8.00mm) | 0.748" (19.00mm) | 0.189" (4.80mm) |
|
8995121221FERRITE CORE EFD 95 SET Fair-Rite Products Corp. |
11,505 | 0.80 |
|
Datasheet |
- | Bulk | Active | EFD | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 259.0 | 28.4 | 11.0 | 10.8 | 311.0 | Uncoated | 0.244" (6.20mm) | 0.492" (12.50mm) | - |
|

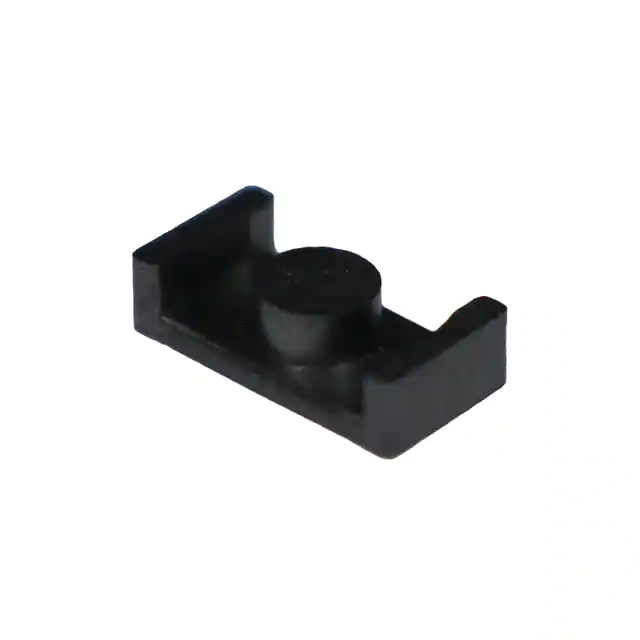

9598100502FERRITE CORE E SET Fair-Rite Products Corp. |
3,807 | 0.71 |
|
Datasheet |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 152.0 | 13.6 | 8.93 | 7.6 | 122.0 | Uncoated | - | 0.368" (9.35mm) | - |
|
|
8998121221FERRITE CORE EFD SET Fair-Rite Products Corp. |
2,880 | 0.70 |
|
Datasheet |
- | Bulk | Active | EFD | - | - | - | - | ±25% | Ungapped | - | 2400 | 259.0 | 28.4 | 11.0 | 10.8 | 311.0 | Uncoated | 0.244" (6.20mm) | 0.492" (12.50mm) | - |
|
|
9495103002FERRITE CORE E 95 SET Fair-Rite Products Corp. |
2,772 | 0.60 |
|
Datasheet |
- | Bulk | Active | E | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 181.0 | 39.9 | 22.0 | 21.6 | 878.0 | Uncoated | 0.315" (8.00mm) | 0.748" (19.00mm) | 0.189" (4.80mm) |
|
9578100502FERRITE CORE E 78 SET Fair-Rite Products Corp. |
1,303 | 0.75 |
|
Datasheet |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 152.0 | 13.6 | 8.93 | 7.6 | 122.0 | Uncoated | - | 0.368" (9.35mm) | - |
|
|
9478104002FERRITE CORE E 78 SET Fair-Rite Products Corp. |
1,319 | 0.64 |
|
Datasheet |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 150.0 | 46.3 | 30.9 | 30.0 | 1430.0 | Uncoated | - | - | - |
|
|

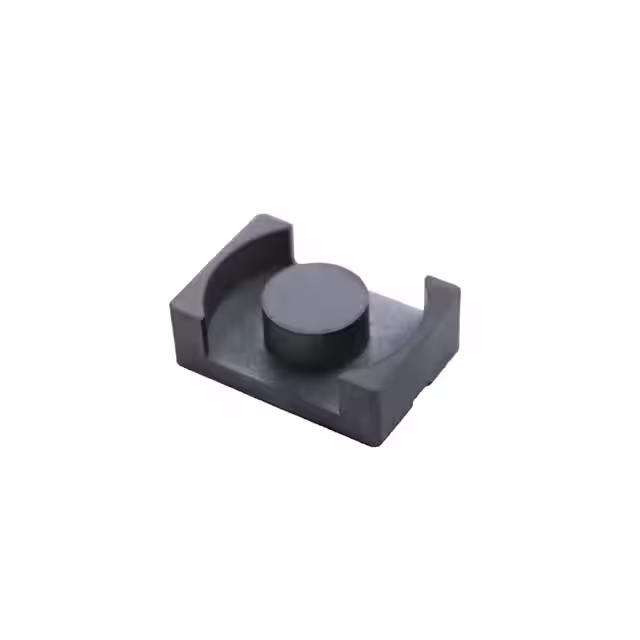

9578110502FERRITE CORE E 78 SET Fair-Rite Products Corp. |
3,780 | 0.79 |
|
Datasheet |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 112.0 | 14.0 | 12.6 | 10.3 | 177.0 | Uncoated | - | - | - |
|

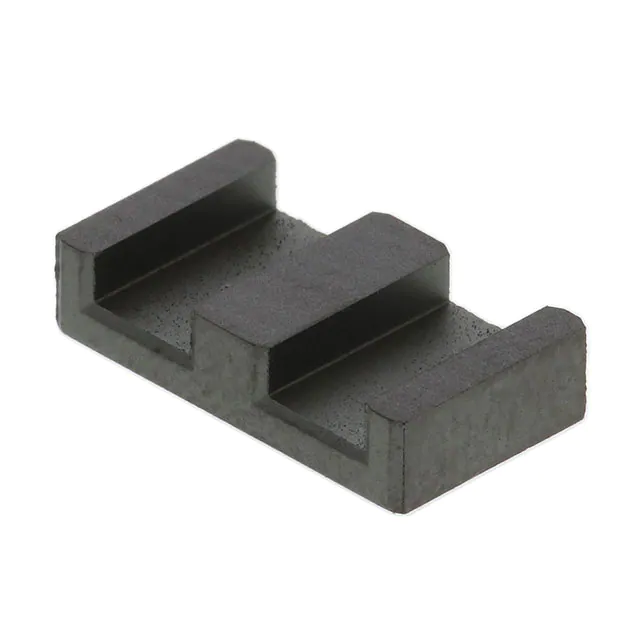

9478202002FERRITE CORE E 78 SET Fair-Rite Products Corp. |
3,044 | 0.78 |
|
Datasheet |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 60.0 | 24.3 | 39.5 | 39.0 | 960.0 | Uncoated | - | - | 0.394" (10.00mm) |
|
|
9498202002FERRITE CORE E SET Fair-Rite Products Corp. |
1,701 | 0.70 |
|
Datasheet |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 60.0 | 24.3 | 39.5 | 39.0 | 960.0 | Uncoated | - | - | 0.394" (10.00mm) |
