FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDMS3604ASMOSFET 2N-CH 30V 13A/23A POWER56 onsemi |
4,937 | 0.00 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate | 30V | 13A, 23A | 8mOhm @ 13A, 10V | 2.7V @ 250µA | 29nC @ 10V | 1695pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|

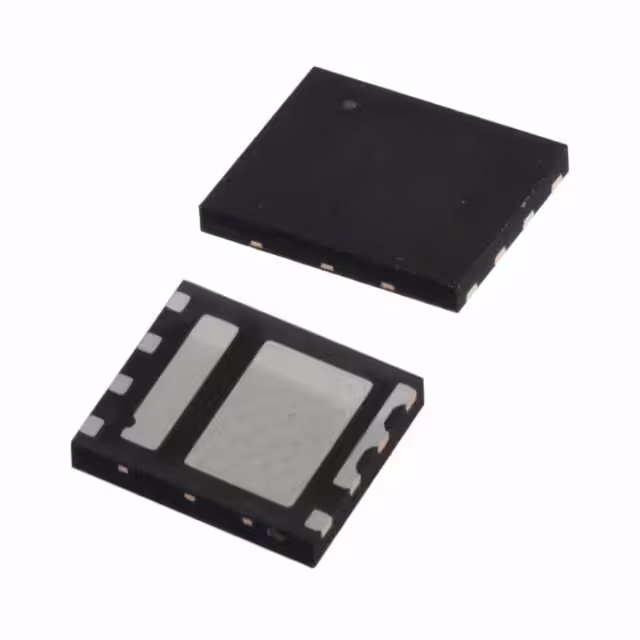

FDMS7700SMOSFET 2N-CH 30V 12A/22A POWER56 onsemi |
6,017 | 0.00 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 12A, 22A | 7.5mOhm @ 12A, 10V | 3V @ 250µA | 28nC @ 10V | 1750pF @ 15V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power56 |
|

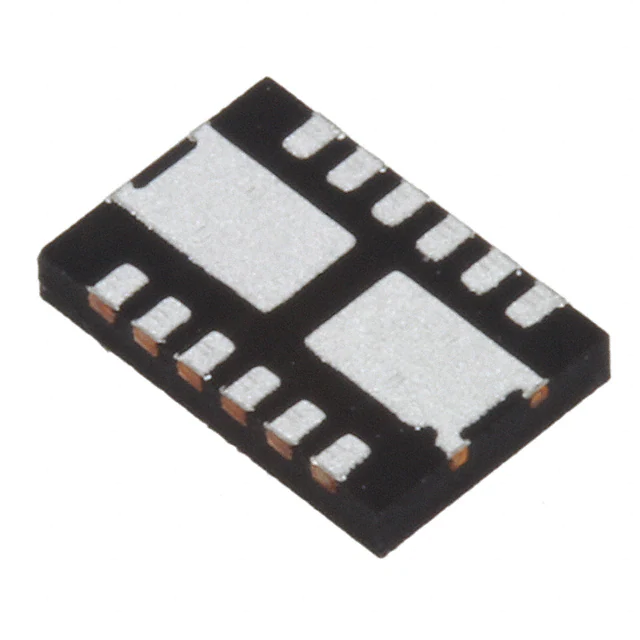

FDMD82100MOSFET 2N-CH 100V 7A 12POWER onsemi |
8,540 | 0.00 |
|
Datasheet |
PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 7A | 19mOhm @ 7A, 10V | 4V @ 250µA | 17nC @ 10V | 1070pF @ 50V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
FDMD8280MOSFET 2N-CH 80V 11A 12POWER onsemi |
3,624 | 0.00 |
|
- |
PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 80V | 11A | 8.2mOhm @ 11A, 10V | 4V @ 250µA | 44nC @ 10V | 3050pF @ 40V | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
FDMD8260LET60MOSFET 2N-CH 60V 15A 12POWER onsemi |
7,272 | 0.00 |
|
Datasheet |
PowerTrench® | 12-PowerWDFN | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 15A | 5.8mOhm @ 15A, 10V | 3V @ 250µA | 68nC @ 10V | 5245pF @ 30V | 1.1W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 12-Power3.3x5 |
|
|
FAM65CR51XZ2MOSFET 2N-CH 650V 64A APMCD-B16 onsemi |
4,920 | 0.00 |
|
Datasheet |
- | 12-SSIP Exposed Pad, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 2 N-Channel | - | 650V | 64A (Tc) | 51mOhm @ 20A, 10V | 5V @ 3.3mA | 123nC @ 10V | 4864pF @ 400V | 463W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | APMCD-B16 |
|
|
NXV10V160ST1MOSFET 6N-CH 100V APM21-CGA onsemi |
5,399 | 0.00 |
|
Datasheet |
- | 21-PowerDIP Module (1.370", 34.80mm) | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel | - | 100V | - | - | 4.5V @ 250µA | 101nC @ 10V | 6970pF @ 50V | - | 175°C (TJ) | - | - | Through Hole | APM21-CGA |
|
|
NXV08H250DT1MOSFET 4N-CH 80V APM17-MDC onsemi |
6,371 | 0.00 |
|
Datasheet |
- | 17-PowerDIP Module (1.390", 35.30mm) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 80V | - | 1.039mOhm @ 160A, 12V, 762µOhm @ 160A, 12V | 4.6V @ 1mA | 320nC @ 10V | 24350pF @ 40V | - | 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | APM17-MDC |
|
|
NXV08H250DPT2MOSFET 4N-CH 80V APM17-MFA onsemi |
9,988 | 0.00 |
|
Datasheet |
- | 17-PowerDIP Module (2.020", 51.30mm) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 80V | - | 0.88mOhm @ 160A, 14V, 0.71mOhm @ 160A, 14V | 4.6V @ 1mA | 320nC @ 10V | 24350pF @ 40V | - | -40°C ~ 125°C | Automotive | AEC-Q101 | Through Hole | APM17-MFA |
|
|
NXV08H300DT1MOSFET 4N-CH 80V APM17-MDC onsemi |
2,437 | 0.00 |
|
Datasheet |
- | 17-PowerDIP Module (1.390", 35.30mm) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 80V | - | 0.765mOhm @ 160A, 12V, 0.580mOhm @ 160A, 12V | 4.6V @ 1mA | 502nC @ 12V | 30150pF @ 40V | - | 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | APM17-MDC |
