FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXV08H400XT2MOSFET 4N-CH 80V APM17-MDA onsemi |
3,944 | 0.00 |
|
Datasheet |
- | 17-PowerDIP Module (1.778", 45.15mm) | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 80V | - | 0.765mOhm @ 160A, 12V, 0.710mOhm @ 160A, 12V | 4.6V @ 1mA | 502nC @ 12V | 30150pF @ 40V | - | 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | APM17-MDA |
|
|
NXV08B800DT1MOSFET 80V APM17-MDC onsemi |
8,560 | 0.00 |
|
Datasheet |
- | 17-PowerDIP Module (1.390", 35.30mm) | Bulk | Active | MOSFET (Metal Oxide) | - | - | 80V | - | 0.46mOhm @ 160A, 12V | 4.6V @ 1mA | 502nC @ 12V | 30150pF @ 40V | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Through Hole | APM17-MDC |
|
|
NXV08H350XT1MOSFET 80V APM17-MDC onsemi |
3,804 | 0.00 |
|
Datasheet |
- | 17-PowerDIP Module (1.390", 35.30mm) | Bulk | Active | MOSFET (Metal Oxide) | - | - | 80V | - | 0.762mOhm @ 160A, 12V | 4.6V @ 1mA | 320nC @ 10V | 24350pF @ 40V | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Through Hole | APM17-MDC |
|
MMDF2P02HDR2MOSFET 2P-CH 20V 3.3A 8SOIC onsemi |
4,793 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 3.3A | 160mOhm @ 2A, 10V | 2V @ 250µA | 20nC @ 10V | 588pF @ 16V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MMDF3N04HDR2MOSFET 2N-CH 40V 3.4A 8SOIC onsemi |
4,954 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 40V | 3.4A | 80mOhm @ 3.4A, 10V | 3V @ 250µA | 28nC @ 10V | 900pF @ 32V | 1.39W | - | - | - | Surface Mount | 8-SOIC |
|
|
MMDF1N05ER2MOSFET 2N-CH 50V 2A 8SOIC onsemi |
8,393 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Cut Tape (CT) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 50V | 2A | 300mOhm @ 1.5A, 10V | 3V @ 250µA | 12.5nC @ 10V | 330pF @ 25V | 2W | - | - | - | Surface Mount | 8-SOIC |
|

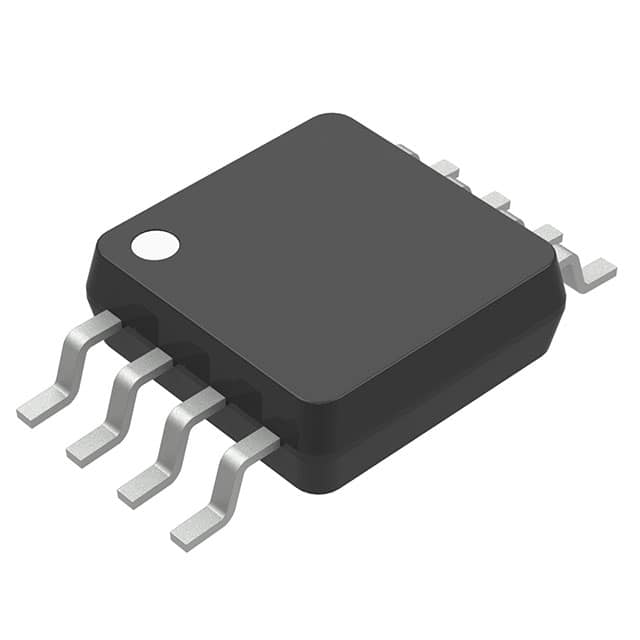

NTTD1P02R2MOSFET 2P-CH 20V 1.45A 8MSOP onsemi |
9,105 | 0.00 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 1.45A | 160mOhm @ 1.45A, 4.5V | 1.4V @ 250µA | 10nC @ 4.5V | 265pF @ 16V | 500mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MSOP |
|
NTHD2102PT1MOSFET 2P-CH 8V 3.4A CHIPFET onsemi |
2,346 | 0.00 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 8V | 3.4A | 58mOhm @ 3.4A, 4.5V | 1.5V @ 250µA | 16nC @ 2.5V | 715pF @ 6.4V | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ChipFET™ |
|
|
NTMD6N02R2MOSFET 2N-CH 20V 3.92A 8SOIC onsemi |
6,415 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 3.92A | 35mOhm @ 6A, 4.5V | 1.2V @ 250µA | 20nC @ 4.5V | 1100pF @ 16V | 730mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
NTHC5513T1MOSFET N/P-CH 20V 2.9A CHIPFET onsemi |
7,037 | 0.00 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 2.9A, 2.2A | 80mOhm @ 2.9A, 4.5V | 1.2V @ 250µA | 4nC @ 4.5V | 180pF @ 10V | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ChipFET™ |
