FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI7964DP-T1-E3MOSFET 2N-CH 60V 6.1A PPAK SO8 |
8,897 | 0.00 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 6.1A | 23mOhm @ 9.6A, 10V | 4.5V @ 250µA | 65nC @ 10V | - | 1.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|

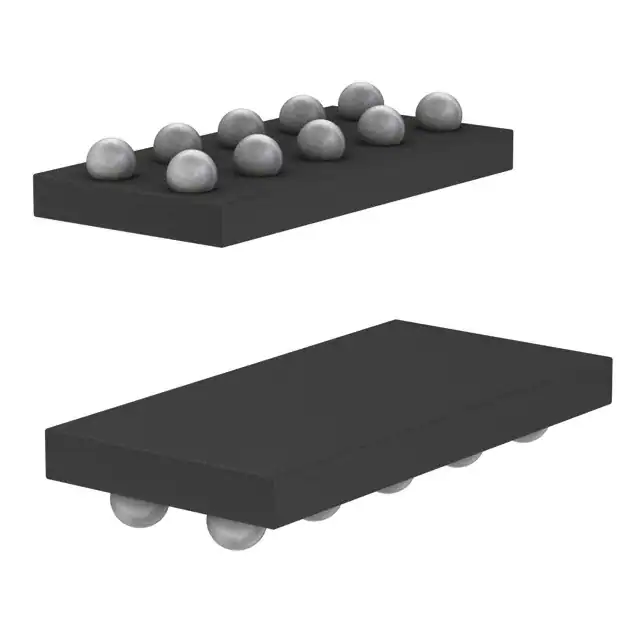

SI8900EDB-T2-E1MOSFET 2N-CH 20V 5.4A 10MFP |
5,795 | 0.00 |
|
- |
TrenchFET® | 10-UFBGA, CSPBGA | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | 5.4A | - | 1V @ 1.1mA | - | - | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-Micro Foot™ CSP (2x5) |
|
SI8901EDB-T2-E1MOSFET 2P-CH 20V 3.5A 6MICROFOOT |
8,285 | 0.00 |
|
- |
TrenchFET® | 6-MICRO FOOT®CSP | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) Common Drain | Logic Level Gate | 20V | 3.5A | - | 1V @ 350µA | - | - | 1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-Micro Foot™ (2.36x1.56) |
|
FDMJ1023PZMOSFET 2P-CH 20V 2.9A SC75 |
6,041 | 0.00 |
|
Datasheet |
PowerTrench® | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 2.9A | 112mOhm @ 2.9A, 4.5V | 1V @ 250µA | 6.5nC @ 4.5V | 400pF @ 10V | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-75, MicroFET |
|
NTGD4161PT1GMOSFET 2P-CH 30V 1.5A 6TSOP |
3,347 | 0.00 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 30V | 1.5A | 160mOhm @ 2.1A, 10V | 3V @ 250µA | 7.1nC @ 10V | 281pF @ 15V | 600mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
NTHD4102PT3GMOSFET 2P-CH 20V 2.9A CHIPFET |
4,616 | 0.00 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 2.9A | 80mOhm @ 2.9A, 4.5V | 1.5V @ 250µA | 8.6nC @ 4.5V | 750pF @ 16V | 1.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ChipFET™ |
|
NTJD4158CT2GMOSFET N/P-CH 30V/20V 0.25A SC88 |
3,037 | 0.00 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 30V, 20V | 250mA, 880mA | 1.5Ohm @ 10mA, 4.5V | 1.5V @ 100µA | 1.5nC @ 5V | 33pF @ 5V | 270mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
NTLJD3119CTAGMOSFET N/P-CH 20V 2.6A 6WDFN |
7,340 | 0.00 |
|
Datasheet |
µCool™ | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 2.6A, 2.3A | 65mOhm @ 3.8A, 4.5V | 1V @ 250µA | 3.7nC @ 4.5V | 271pF @ 10V | 710mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
NTZD5110NT5GMOSFET 2N-CH 60V 0.294A SOT563 |
9,589 | 0.00 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 294mA | 1.6Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.7nC @ 4.5V | 24.5pF @ 20V | 250mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
IRF7507PBFMOSFET N/P-CH 20V 2.4A MICRO8 |
7,923 | 0.00 |
|
Datasheet |
HEXFET® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Discontinued at Digi-Key | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | 2.4A, 1.7A | 140mOhm @ 1.7A, 4.5V | 700mV @ 250µA (Min) | 8nC @ 4.5V | 260pF @ 15V | 1.25W | - | - | - | Surface Mount | Micro8™ |
|
MTM684100LBFMOSFET 2P-CH 12V 4.8A WMINI8-F1 |
8,850 | 0.00 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 12V | 4.8A | 42mOhm @ 1A, 4V | 1V @ 1mA | - | 1200pF @ 10V | 1W | -40°C ~ 85°C (TJ) | - | - | Surface Mount | WMini8-F1 |
|
|
MTMC8E2A0LBFMOSFET 2N-CH 20V 7A WMINI8-F1 |
2,483 | 0.00 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 7A | 21mOhm @ 2A, 4.5V | 1.3V @ 1mA | - | 1450pF @ 10V | 1W | 150°C (TJ) | - | - | Surface Mount | WMini8-F1 |
|
FD6M043N08MOSFET 2N-CH 75V 65A EPM15 |
7,864 | 0.00 |
|
Datasheet |
Power-SPM™ | EPM15 | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 75V | 65A | 4.3mOhm @ 40A, 10V | 4V @ 250µA | 148nC @ 10V | 6180pF @ 25V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | EPM15 |
|
FD6M045N06MOSFET 2N-CH 60V 60A EPM15 |
5,873 | 0.00 |
|
Datasheet |
Power-SPM™ | EPM15 | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 60A | 4.5mOhm @ 40A, 10V | 4V @ 250µA | 87nC @ 10V | 3890pF @ 25V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | EPM15 |
|
FDS9933BZMOSFET 2P-CH 20V 4.9A 8SOIC |
3,774 | 0.00 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate | 20V | 4.9A | 46mOhm @ 4.9A, 4.5V | 1.5V @ 250µA | 15nC @ 4.5V | 985pF @ 10V | 900mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AO4622MOSFET N/P-CH 20V 8SOIC |
7,251 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 20V | - | 23mOhm @ 7.3A, 10V | 2V @ 250µA | 18nC @ 10V | 1100pF @ 10V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
AO4826MOSFET 2N-CH 60V 8SOIC |
6,935 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | - | 25mOhm @ 6.3A, 10V | 3V @ 250µA | 58nC @ 10V | 2300pF @ 30V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
AO4932MOSFET 2N-CH 30V 11A/8A 8SOIC |
2,922 | 0.00 |
|
Datasheet |
SRFET™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 11A, 8A | 12.5mOhm @ 11A, 10V | 2.1V @ 250µA | 24nC @ 10V | 1400pF @ 15V | 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AO8830MOSFET 2N-CH 20V 8TSSOP |
7,804 | 0.00 |
|
Datasheet |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate | 20V | - | 27mOhm @ 6A, 10V | 1V @ 1mA | 5.2nC @ 4.5V | 290pF @ 10V | 1.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
FD6M016N03MOSFET 2N-CH 30V 80A EPM15 |
4,256 | 0.00 |
|
Datasheet |
Power-SPM™ | EPM15 | Tube | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 80A | 1.6mOhm @ 40A, 10V | 3V @ 250µA | 295nC @ 10V | 11535pF @ 15V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | EPM15 |
