Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APSC00060620100MS0FIXED IND 10UH 124 MOHM SMD Pulse Electronics |
2,145 | 1.10 |
|
Datasheet |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | - | 900mA | Shielded | 124mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|
PF0560.104NLFIXED IND 100UH 1.25A 304MOHM SM Pulse Electronics |
2,330 | 0.00 |
|
Datasheet |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 100 µH | ±25% | 1.25 A | 1.35A | Shielded | 304mOhm Max | - | 6.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
PA5401.821NLTFIXED IND 820NH 4.8A 32MOHM SMD Pulse Electronics |
5,977 | 1.12 |
|
Datasheet |
PA5401 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 4.8 A | 6A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
PA5401.152NLTFIXED IND 1.5UH 3.8A 50MOHM SMD Pulse Electronics |
5,977 | 1.12 |
|
Datasheet |
PA5401 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 3.8 A | 4A | Shielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
PA5401.103NLTFIXED IND 10UH 1.4A 422MOHM SMD Pulse Electronics |
5,614 | 1.12 |
|
Datasheet |
PA5401 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 1.4 A | 1.6A | Shielded | 422mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
PA5400.102NLTFIXED IND 1UH 3.3A 60 MOHM SMD Pulse Electronics |
4,000 | 1.12 |
|
Datasheet |
PA5400 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.3 A | 5.5A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.118" (3.00mm) |
|
|
PA5400.332NLTFIXED IND 3.3UH 2A 210 MOHM SMD Pulse Electronics |
3,997 | 1.12 |
|
Datasheet |
PA5400 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 2 A | 3.1A | Shielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.118" (3.00mm) |
|
|
PA5400.103NLTFIXED IND 10UH 1A 550 MOHM SMD Pulse Electronics |
2,931 | 1.12 |
|
Datasheet |
PA5400 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 1 A | 1.4A | Shielded | 550mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.118" (3.00mm) |
|

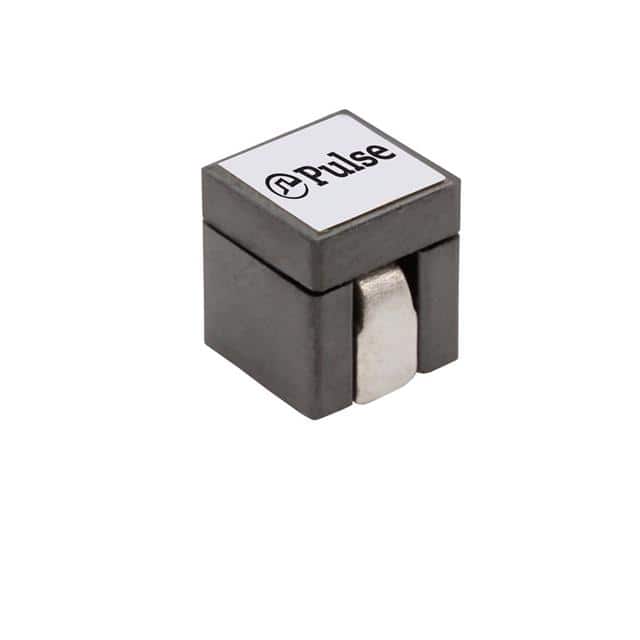

PG2292.700HLTINDUCTOR PWR BEAD 70NH 60A Pulse Electronics |
1,147 | 1.14 |
|
Datasheet |
PG2292.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±20% | 53 A | 60A | Unshielded | 0.09mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.236" W (6.10mm x 6.00mm) | 0.276" (7.00mm) |
|
PA4341.471ANLTFIXED IND 470NH 18A 4 MOHM SMD Pulse Electronics |
2,885 | 1.16 |
|
Datasheet |
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 18 A | 20A | Shielded | 4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
