Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0601.103NLFIXED IND 10UH 1.1A 135 MOHM SMD Pulse Electronics |
1,848 | 1.62 |
|
Datasheet |
PF0601NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 1.1 A | 1.1A | Shielded | 135mOhm Max | - | 31MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
AMRU000404204R7MB1FIXED IND 4.7UH 2.2A 105MOHM SMD Pulse Electronics |
1,398 | 1.15 |
|
Datasheet |
AMRU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.2 A | 3.5A | Shielded | 105mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.079" (2.00mm) |
|
PA4341.821ANLTFIXED IND 820NH 14A 6 MOHM SMD Pulse Electronics |
8,252 | 1.16 |
|
Datasheet |
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 14 A | 16A | Shielded | 6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
PM4341.332NLTFIXED IND 3.3UH 6A 30 MOHM SMD Pulse Electronics |
5,946 | 1.17 |
|
Datasheet |
PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
PA5448.102NLTFIXED IND 1UH 18A 6.8 MOHM SMD Pulse Electronics |
3,634 | 1.16 |
|
Datasheet |
PA5448.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 18 A | 16A | Shielded | 6.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.118" (3.00mm) |
|

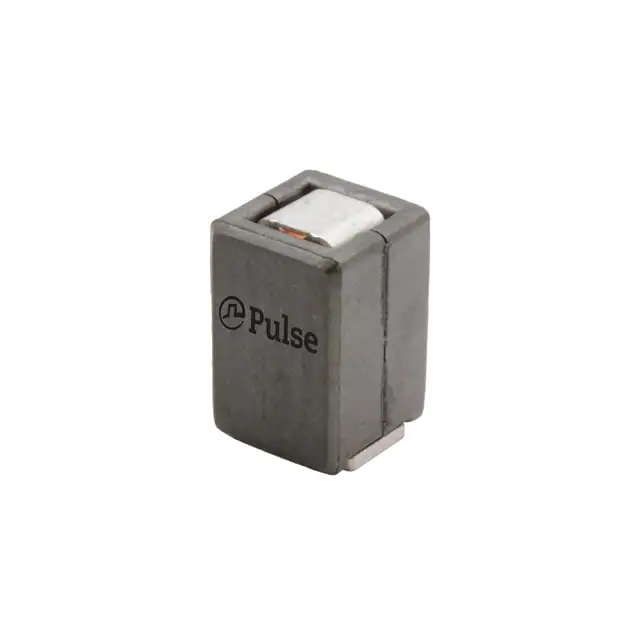

PGL6312.151HLTINDUCTOR PWR BEAD 150NH 52A Pulse Electronics |
1,637 | 1.52 |
|
Datasheet |
PGL6312.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±15% | 52 A | 52A | Shielded | 0.17mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
|
PA4341.102ANLTFIXED IND 1UH 12A 7.4 MOHM SMD Pulse Electronics |
653 | 1.16 |
|
Datasheet |
PA4341.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 12 A | 15A | Shielded | 7.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

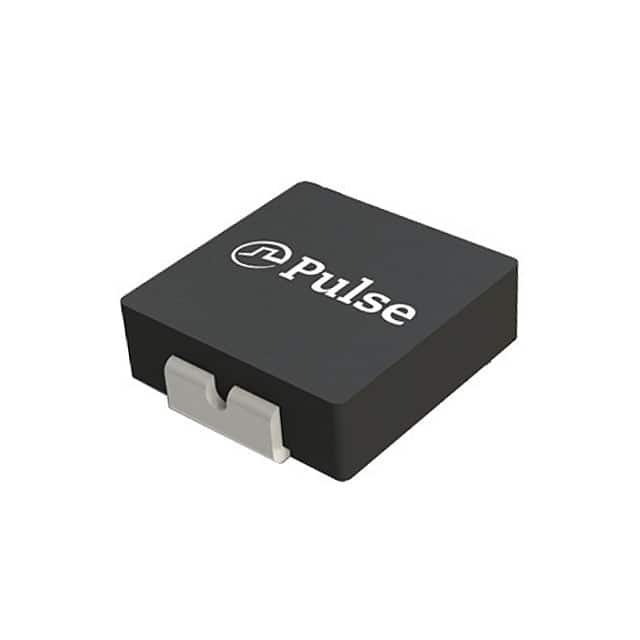

PA4345.241NLTFIXED IND 240NH 13A 7 MOHM SMD Pulse Electronics |
3,256 | 1.18 |
|
Datasheet |
PA4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 13 A | 23A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|
PA5041.331HLTFIXED IND 330NH 22A 0.29MOHM SMD Pulse Electronics |
1,980 | 1.29 |
|
Datasheet |
PA5041 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±10% | 22 A | 28A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.441" (11.20mm) |
|

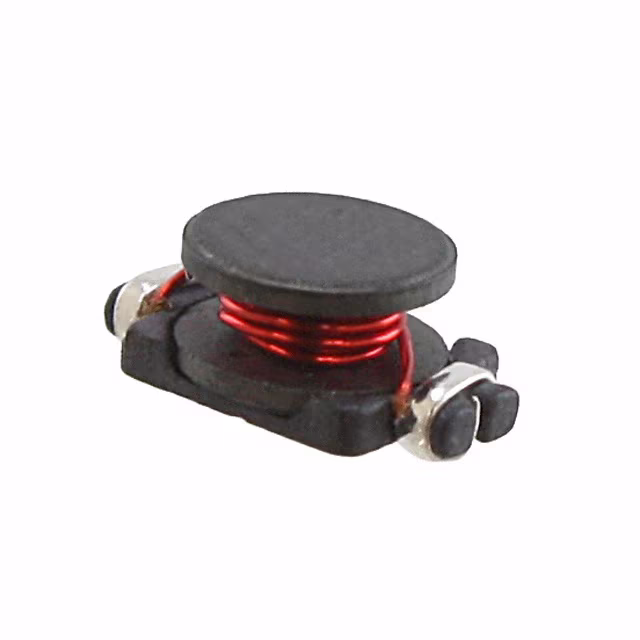

P0770.332NLTFIXED IND 3.3UH 2A 80 MOHM SMD Pulse Electronics |
6,760 | 1.20 |
|
Datasheet |
P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 2 A | 2A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
