Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1172.472NLTFIXED IND 4.7UH 7.9A 9.5MOHM SMD Pulse Electronics |
545 | 1.92 |
|
Datasheet |
P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 7.9 A | 8.2A | Shielded | 9.5mOhm Max | - | 33MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
PG0255.601NLFIXED IND 600NH 27A 1.87MOHM SMD Pulse Electronics |
1,670 | 0.00 |
|
Datasheet |
PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 600 nH | ±15% | 27 A | 28A | Shielded | 1.87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|

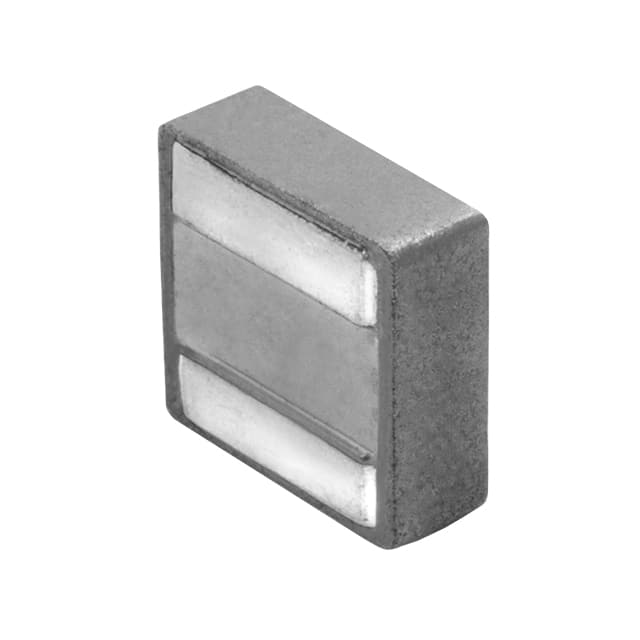

PA5007.682NLTFIXED IND 6.8UH 6.8A 42.5MOHM SM Pulse Electronics |
3,199 | 2.36 |
|
Datasheet |
PA5007.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 µH | ±20% | 6.8 A | 12A | Shielded | 42.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
PA5006.471NLTFIXED IND 470NH 17A 6.2MOHM SMD Pulse Electronics |
1,022 | 2.36 |
|
Datasheet |
PA5006.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 470 nH | ±20% | 17 A | 28A | Shielded | 6.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|
|
P1172.473NLTFIXED IND 47UH 2.6A 89 MOHM SMD Pulse Electronics |
1,567 | 2.29 |
|
Datasheet |
P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.6 A | 2.6A | Shielded | 89mOhm Max | - | 7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
|
P1172.103NLTFIXED IND 10UH 5.2A 21.8MOHM SMD Pulse Electronics |
1,078 | 2.29 |
|
Datasheet |
P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 5.2 A | 5.5A | Shielded | 21.8mOhm Max | - | 20MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
P1173.183NLTFIXED IND 18UH 4A 37 MOHM SMD Pulse Electronics |
1,036 | 1.92 |
|
Datasheet |
P1173NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 4 A | 4.3A | Shielded | 37mOhm Max | - | 13MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
PG0434.202NLFIXED IND 2UH 23A 2.9 MOHM SMD Pulse Electronics |
830 | 0.00 |
|
Datasheet |
PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 2 µH | ±20% | 23 A | 24A | Shielded | 2.9mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
|
PG0434.282NLFIXED IND 2.8UH 19A 4.2 MOHM SMD Pulse Electronics |
830 | 0.00 |
|
Datasheet |
PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 2.8 µH | ±20% | 19 A | 20A | Shielded | 4.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
|
PG0434.401NLFIXED IND 450NH 45A 0.8 MOHM SMD Pulse Electronics |
830 | 0.00 |
|
Datasheet |
PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 450 nH | ±20% | 45 A | 48A | Shielded | 0.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
