Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAL6374.121HLTIND POWER BEAD TLVR Pulse Electronics |
1,470 | 2.13 |
|
Datasheet |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 71 A | 66A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.800HLTIND POWER BEAD TLVR Pulse Electronics |
340 | 2.13 |
|
Datasheet |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 80 nH | ±15% | 71 A | 100A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.700HLTIND POWER BEAD TLVR Pulse Electronics |
340 | 2.13 |
|
Datasheet |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±15% | 71 A | 114A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
PA4321.152NLTFIXED IND 1.5UH 7.8A 5.1MOHM SMD Pulse Electronics |
5,442 | 2.40 |
|
Datasheet |
PA4321 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 7.8 A | 5.44A | Shielded | 5.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.402" W (10.00mm x 10.20mm) | 0.201" (5.10mm) |
|
PG0926.722NLFIXED IND 7.2UH 12A 7 MOHM SMD Pulse Electronics |
937 | 3.21 |
|
Datasheet |
PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 7.2 µH | ±20% | 12 A | 12.5A | Unshielded | 7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|

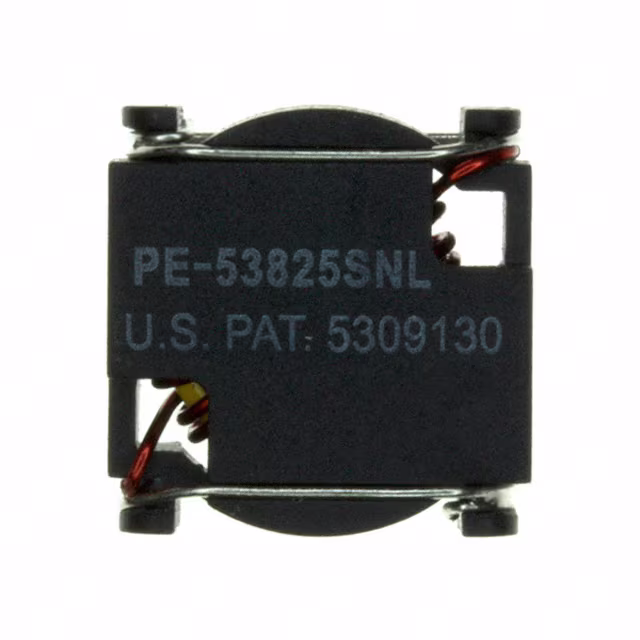

PE-53825SNLFIXED IND 18UH 1.81A 60 MOHM SMD Pulse Electronics |
1,040 | 3.18 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 18 µH | ±20% | 1.81 A | - | Shielded | 60mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PG0936.113NLFIXED IND 11UH 14A 7 MOHM SMD Pulse Electronics |
950 | 0.00 |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 11 µH | ±20% | 14 A | 14A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.682NLFIXED IND 6.8UH 18A 3.5 MOHM SMD Pulse Electronics |
950 | 0.00 |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 18 A | 18A | Unshielded | 3.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.282NLFIXED IND 2.8UH 24A 2.2 MOHM SMD Pulse Electronics |
880 | 0.00 |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 2.8 µH | ±20% | 24 A | 28A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
PA5006.271NLTFIXED IND 270NH 21A 3.5 MOHM SMD Pulse Electronics |
2,950 | 2.36 |
|
Datasheet |
PA5006.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 270 nH | ±20% | 21 A | 35A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
