Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG1096.252NLTPULSE XFMR 2.25UH Pulse Electronics |
445 | 6.40 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.25 µH | ±20% | 45 A | 55A | Unshielded | 1.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
|
PG1096.333NLTPULSE XFMR 29.5UH Pulse Electronics |
332 | 6.40 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 29.5 µH | ±20% | 13.5 A | 15.5A | Unshielded | 10.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
|
PG1096.472NLTPULSE XFMR 4.2UH Pulse Electronics |
438 | 6.41 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.2 µH | ±20% | 35 A | 40A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
|
PG1096.152NLTFIXED IND 1.35UH 5A 0.85MOHM SMD Pulse Electronics |
380 | 6.40 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.35 µH | ±20% | 50 A | 65A | Unshielded | 0.85mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.512" (13.00mm) |
|
BWQC00322520470K00INDUCTOR RF Pulse Electronics |
293 | 0.17 |
|
Datasheet |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 170 mA | - | Unshielded | 1.3Ohm Max | - | 15MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
BWVS00606045150M00FIXED IND 15UH 2.2A 80 MOHM SMD Pulse Electronics |
1,836 | 0.47 |
|
Datasheet |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 2.2 A | 3.4A | Shielded | 80mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
BMRA000404203R3MA1FIXED IND 3.3UH 2.5A 87 MOHM SMD Pulse Electronics |
534 | 0.98 |
|
Datasheet |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 2.5 A | 4A | Shielded | 87mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
BMRHDY1010302R2MA1FIXED IND 2.2UH SMD Pulse Electronics |
761 | 0.00 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.398" W (11.60mm x 10.10mm) | 0.118" (3.00mm) |
|

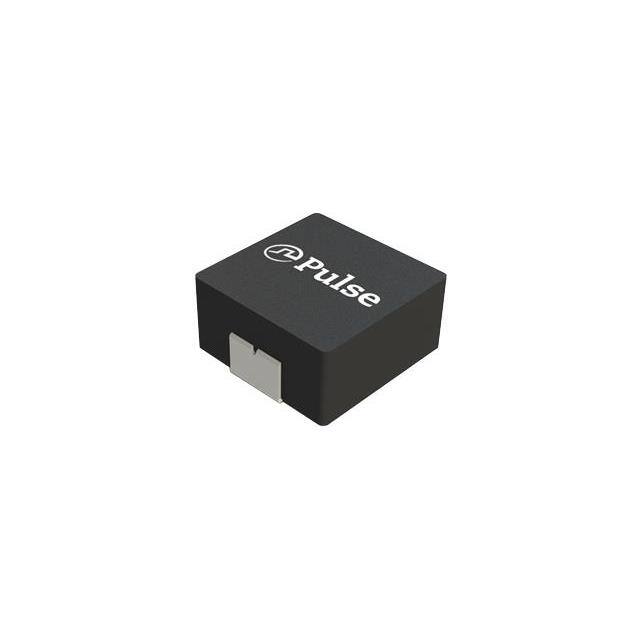

PA4343.683ANLTIND POWDER MOLDED 13.5X12.6X6.2 Pulse Electronics |
4,748 | 1.15 |
|
Datasheet |
PA4343.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 4.8 A | 5A | Shielded | 100mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
Series.jpg)
|
PE-0402CL4N7STTFIXED IND 4.7NH 300MA 200MOHM SM Pulse Electronics |
250 | 0.10 |
|
Datasheet |
PE-0402CL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.7 nH | ±0.3nH | 300 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
