Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMRF00101040150MA1INDUCTOR POWER Pulse Electronics |
887 | 0.43 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 6.25 A | 6A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.398" W (11.60mm x 10.10mm) | 0.157" (4.00mm) |
|
|
BMRF001010406R8MA1FIXED IND 6.8UH 6A 25 MOHM SMD Pulse Electronics |
584 | 1.05 |
|
Datasheet |
BMRF | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 6 A | 10A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.398" W (11.60mm x 10.10mm) | 0.157" (4.00mm) |
|

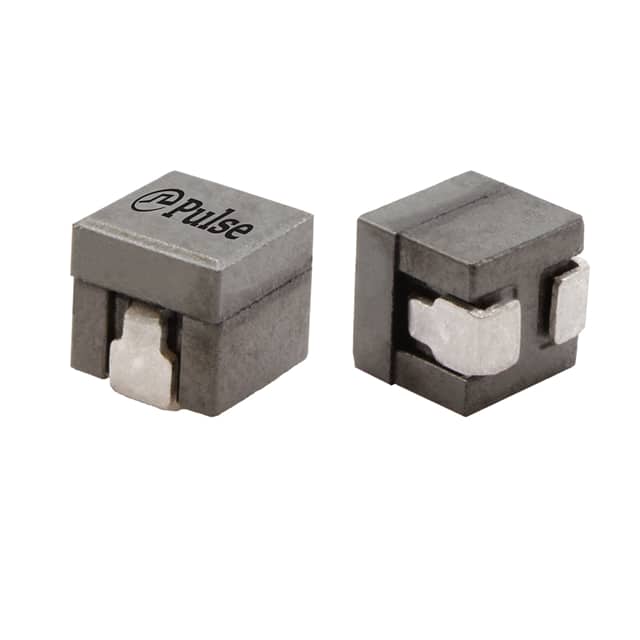

PA5189.101HLTIND PWR BEAD 100NH 20.5A SMD Pulse Electronics |
309 | 0.99 |
|
Datasheet |
PA5189.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±15% | 20.5 A | 20.5A | Shielded | 0.39mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.161" (4.10mm) |
|
PA0277NLFIXED IND 700NH 10.7A 95MOHM SMD Pulse Electronics |
3,326 | 8.96 |
|
Datasheet |
VOLTA 2 | Nonstandard | Tray | Active | - | - | 700 nH | ±20% | 10.7 A | 12.6A | Unshielded | 95mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.350" L x 0.250" W (8.89mm x 6.35mm) | 0.177" (4.50mm) |
|

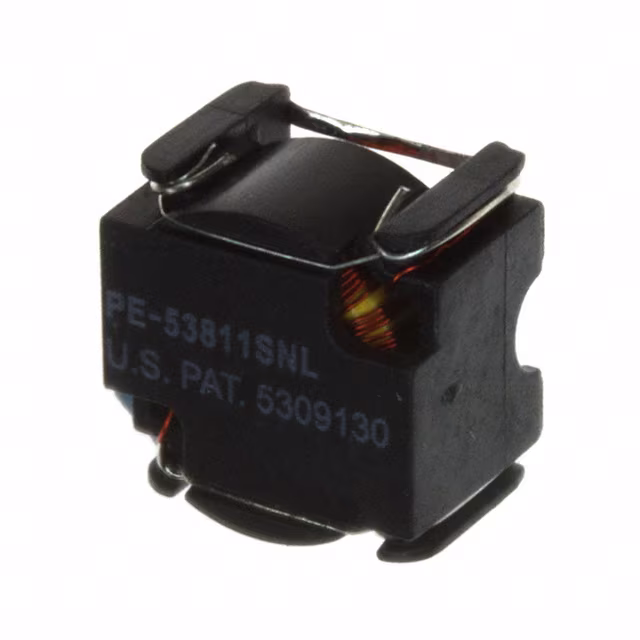

PE-53811SNLFIXED IND 118UH 380MA 1.2OHM SMD Pulse Electronics |
3,576 | 2.62 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 118 µH | ±20% | 380 mA | - | Shielded | 1.2Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
P1169.332NLFIXED IND 3.3UH 6.4A 11 MOHM SMD Pulse Electronics |
2,114 | 0.00 |
|
Datasheet |
P1169NL | Nonstandard | Tray | Active | Wirewound | - | 3.3 µH | ±30% | 6.4 A | 7.3A | Shielded | 11mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|

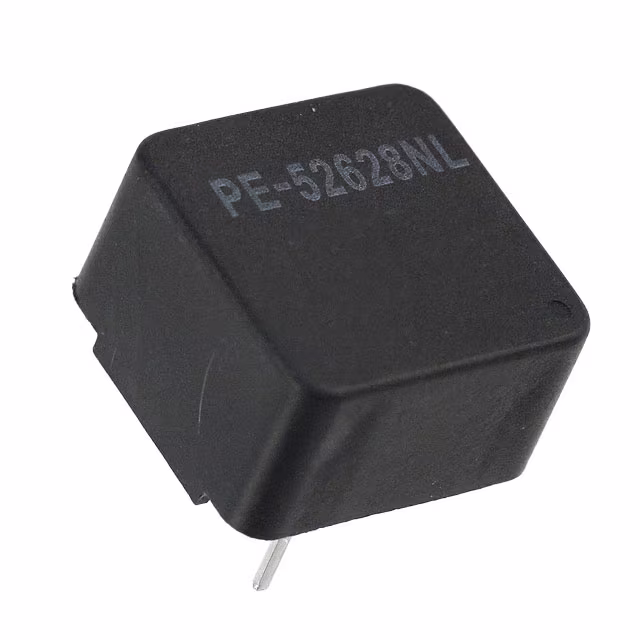

PE-52628NLFIXED IND 470UH 900MA 1.26OHM TH Pulse Electronics |
3,720 | 3.72 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 470 µH | ±20% | 900 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|

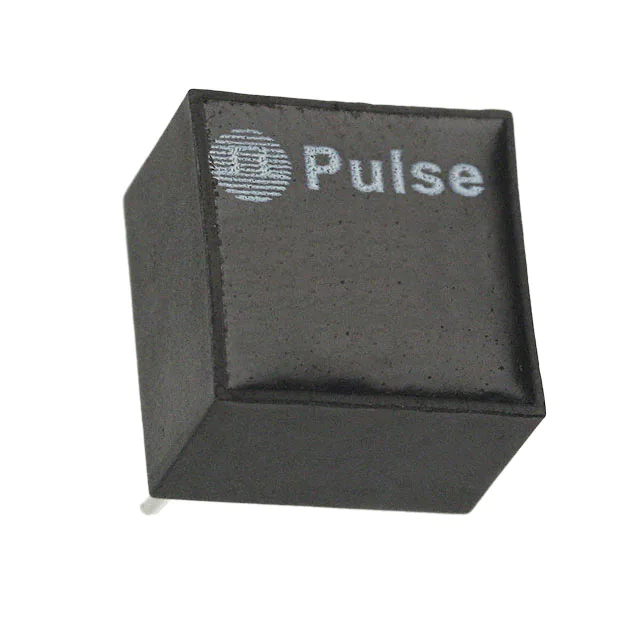

PE-53822NLFIXED IND 54UH 1A 200 MOHM TH Pulse Electronics |
1,748 | 3.18 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 54 µH | ±20% | 1 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
PA4349.333ANLTFIXED IND 33UH 19A 15.4 MOHM SMD Pulse Electronics |
2,958 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 16 A | 10.5A | Shielded | 15.4mOhm Max | - | 4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
BSCH001005053N0SCPFIXED IND 3NH 400MA 150MOHM SMD Pulse Electronics |
10,607 | 0.10 |
|
Datasheet |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3 nH | ±0.3nH | 400 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
