Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4337.471NLTFIXED IND 470NH 6.5A 8 MOHM SMD Pulse Electronics |
1,914 | 0.71 |
|
Datasheet |
PA4337.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±30% | 6.5 A | 15A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
PF0580.123NLFIXED IND 12UH 1A 160 MOHM SMD Pulse Electronics |
5,660 | 0.00 |
|
Datasheet |
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 12 µH | ±15% | 1 A | 1A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.153NLFIXED IND 15UH 850MA 197MOHM SMD Pulse Electronics |
5,660 | 0.00 |
|
Datasheet |
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±15% | 850 mA | 850mA | Unshielded | 197mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.103NLFIXED IND 10UH 1.1A 132 MOHM SMD Pulse Electronics |
5,660 | 0.00 |
|
Datasheet |
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±15% | 1.1 A | 1.1A | Unshielded | 132mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.563NLFIXED IND 56UH 460MA 700MOHM SMD Pulse Electronics |
5,370 | 0.00 |
|
Datasheet |
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 56 µH | ±15% | 460 mA | 460mA | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.382NLFIXED IND 3.8UH 1.7A 68 MOHM SMD Pulse Electronics |
2,793 | 0.00 |
|
Datasheet |
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 3.8 µH | ±15% | 1.7 A | 1.7A | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
BKPB002520101R0MA2FIXED IND 1UH 1.5A 60 MOHM SMD Pulse Electronics |
5,508 | 0.52 |
|
Datasheet |
BKPB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.5 A | 900mA | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
PF0580.222NLFIXED IND 2.2UH 2.2A 49 MOHM SMD Pulse Electronics |
4,150 | 0.00 |
|
Datasheet |
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±15% | 2.2 A | 2.2A | Unshielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
PA4336.103NLTFIXED IND 10UH 900MA 215MOHM SMD Pulse Electronics |
7,264 | 0.57 |
|
Datasheet |
PA4336.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±20% | 900 mA | 1.6A | Shielded | 215mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

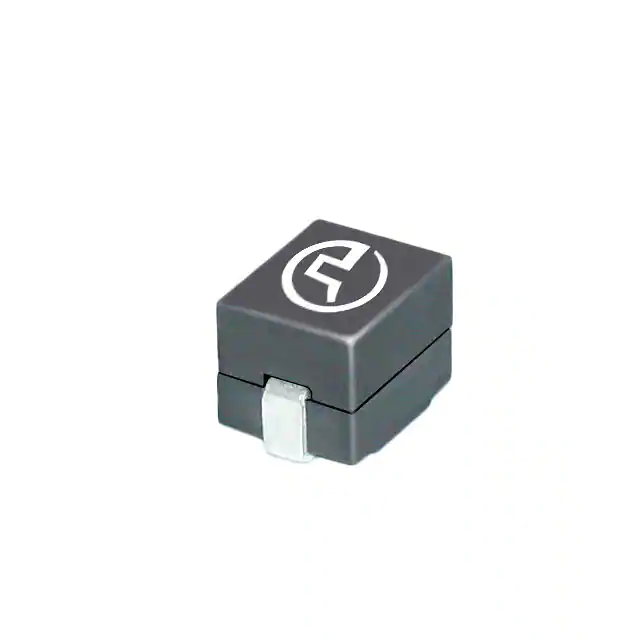

PA2982.221HLFIXED IND 220NH 62A 0.35MOHM SMD Pulse Electronics |
3,725 | 0.00 |
|
Datasheet |
PA2982.XXXHL | Nonstandard | Tray | Active | - | - | 220 nH | ±10% | 62 A | 42A | Shielded | 0.35mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.201" (5.10mm) |
