Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2982.191HLFIXED IND 190NH 62A 0.35MOHM SMD Pulse Electronics |
4,240 | 0.00 |
|
Datasheet |
PA2982.XXXHL | Nonstandard | Tray | Active | - | - | 190 nH | ±10% | 62 A | 48A | Shielded | 0.35mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.201" (5.10mm) |
|

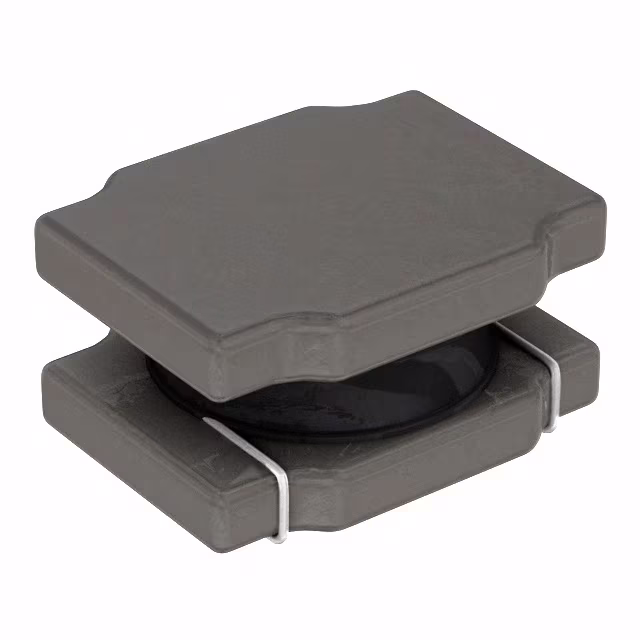

PA4330.222NLTFIXED IND 2.2UH 1.7A 170MOHM SMD Pulse Electronics |
5,781 | 0.59 |
|
Datasheet |
PA4330.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.8A | Shielded | 170mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.087" L x 0.071" W (2.20mm x 1.80mm) | 0.039" (1.00mm) |
|
P0770.224NLFIXED IND 220UH 200MA 3.11OHM SM Pulse Electronics |
4,920 | 0.00 |
|
Datasheet |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 220 µH | ±20% | 200 mA | 220mA | Unshielded | 3.11Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
P0770.223NLFIXED IND 22UH 700MA 370MOHM SMD Pulse Electronics |
4,920 | 0.00 |
|
Datasheet |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±20% | 700 mA | 700mA | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
P0770.102NLFIXED IND 1UH 2.9A 50 MOHM SMD Pulse Electronics |
4,775 | 0.00 |
|
Datasheet |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 2.9 A | 2.9A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA4337.104NLTFIXED IND 100UH 800MA 563MOHM SM Pulse Electronics |
7,500 | 0.71 |
|
Datasheet |
PA4337.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 100 µH | ±20% | 800 mA | 950mA | Shielded | 563mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
PA2891.441HLFIXED IND 440NH 72A 0.22MOHM SMD Pulse Electronics |
3,561 | 0.00 |
|
Datasheet |
PA2981.XXXHL | Nonstandard | Tray | Active | - | - | 440 nH | ±10% | 72 A | 38A | Shielded | 0.22mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | - |
|
PA5447.152NLTFIXED IND 1.5UH 6A 25.2MOHM SMD Pulse Electronics |
9,715 | 0.96 |
|
Datasheet |
PA5447.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 6 A | 13A | Shielded | 25.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
P0770.222NLFIXED IND 2.2UH 2.3A 70 MOHM SMD Pulse Electronics |
4,930 | 0.00 |
|
Datasheet |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±20% | 2.3 A | 2.3A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
P0770.472NLFIXED IND 4.7UH 1.5A 90 MOHM SMD Pulse Electronics |
4,920 | 0.00 |
|
Datasheet |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 1.5 A | 1.5A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
