Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-15E182FIXED IND 1.8MH 750MA 870MOHM TH Panasonic Electronic Components |
3,951 | 0.00 |
|
Datasheet |
15E | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | 1.8 mH | ±10% | 750 mA | - | Shielded | 870mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|

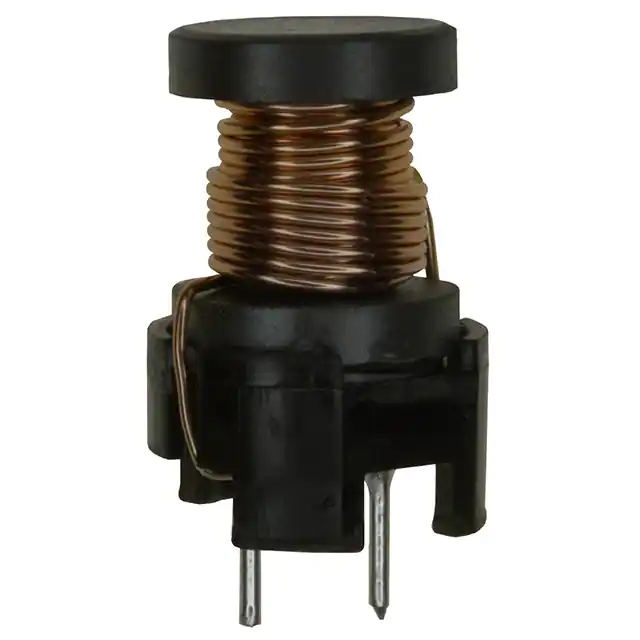

ELC-18E8R2FIXED IND 8.2UH 6.2A 13 MOHM TH Panasonic Electronic Components |
2,021 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 6.2 A | - | Shielded | 13mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E100FIXED IND 10UH 5.9A 14 MOHM TH Panasonic Electronic Components |
1,251 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.9 A | - | Shielded | 14mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E180FIXED IND 18UH 5.2A 19 MOHM TH Panasonic Electronic Components |
3,194 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 5.2 A | - | Shielded | 19mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E220FIXED IND 22UH 5A 22 MOHM TH Panasonic Electronic Components |
3,217 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 5 A | - | Shielded | 22mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E680FIXED IND 68UH 3.6A 36 MOHM TH Panasonic Electronic Components |
1,505 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 3.6 A | - | Shielded | 36mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E101FIXED IND 100UH 3A 44 MOHM TH Panasonic Electronic Components |
4,873 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 3 A | - | Shielded | 44mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E121FIXED IND 120UH 2.8A 47 MOHM TH Panasonic Electronic Components |
2,851 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 2.8 A | - | Shielded | 47mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E181FIXED IND 180UH 2.5A 67 MOHM TH Panasonic Electronic Components |
2,637 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 2.5 A | - | Shielded | 67mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
|
|
ELC-18E331FIXED IND 330UH 1.9A 110 MOHM TH Panasonic Electronic Components |
3,631 | 1.31 |
|
Datasheet |
18E | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.9 A | - | Shielded | 110mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.984" (25.00mm) |
