Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

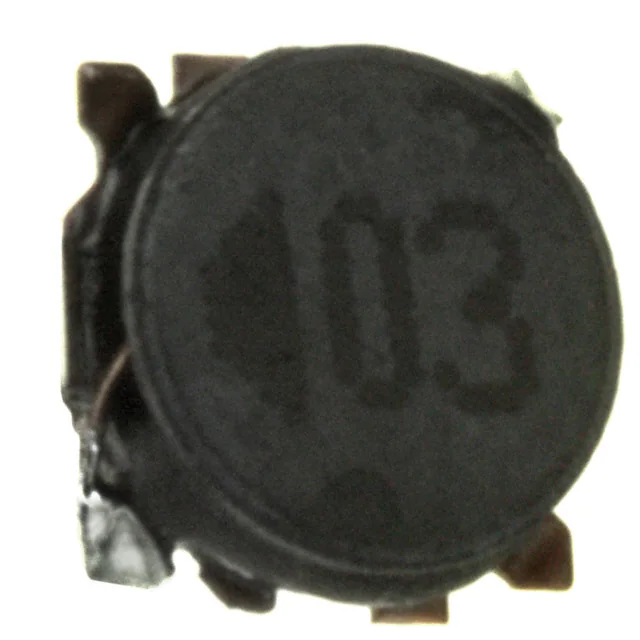

ELL-4GG470MFIXED IND 47UH 350MA 1.25OHM SMD Panasonic Electronic Components |
1,249 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 350 mA | 400mA | Shielded | 1.25Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
ELL-4LG2R2NAFIXED IND 2.2UH 1.7A 55 MOHM SMD Panasonic Electronic Components |
1,866 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 1.7 A | 1.5A | Shielded | 55mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

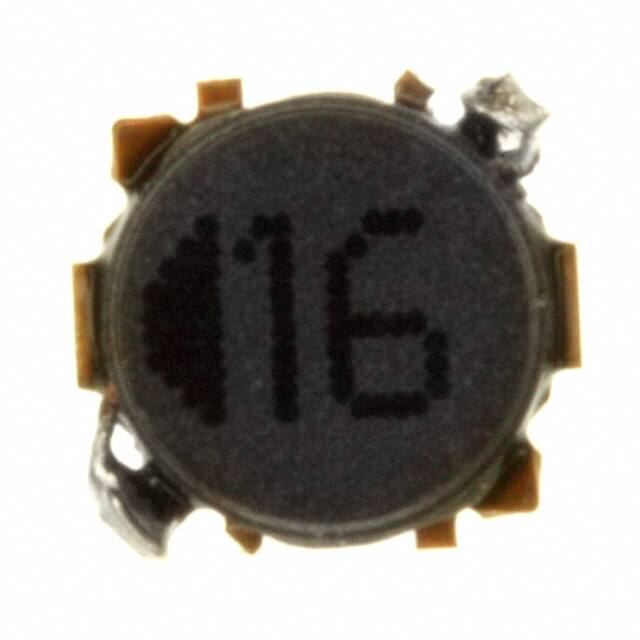

ELL-4LG3R3NAFIXED IND 3.3UH 1.45A 72MOHM SMD Panasonic Electronic Components |
4,585 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.45 A | 1.3A | Shielded | 72mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

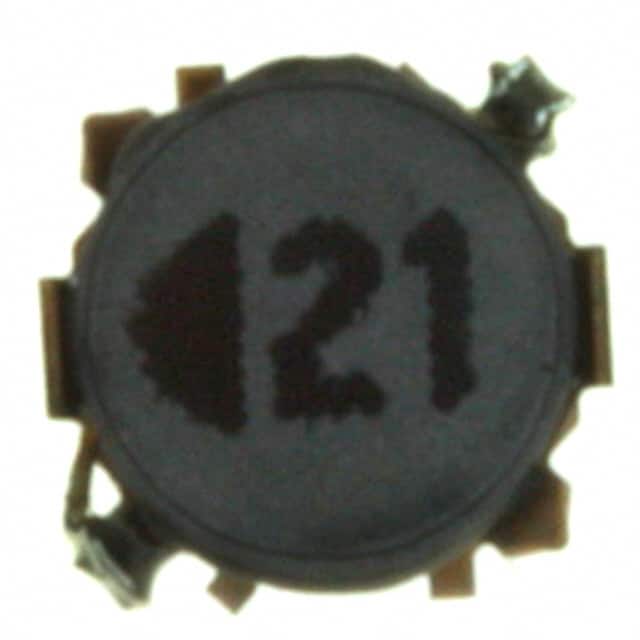

ELL-4LG4R7NAFIXED IND 4.7UH 1.3A 90 MOHM SMD Panasonic Electronic Components |
4,326 | 0.68 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.3 A | 1.1A | Shielded | 90mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

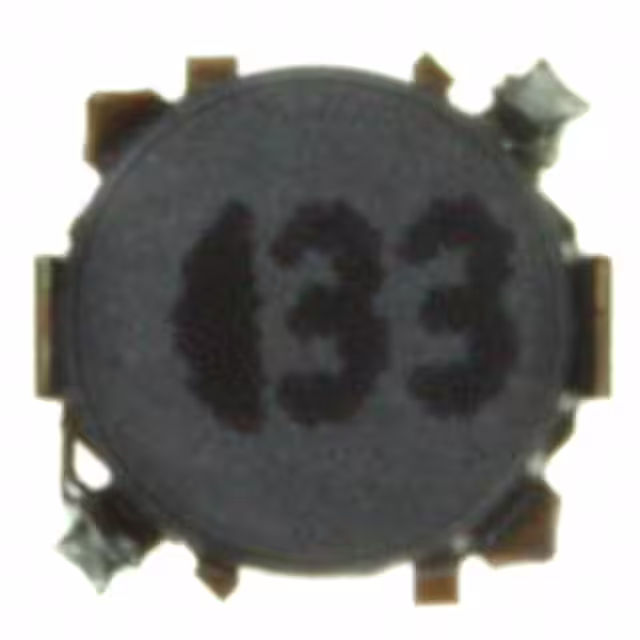

ELL-4LG150MAFIXED IND 15UH 730MA 300MOHM SMD Panasonic Electronic Components |
2,877 | 0.00 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 730 mA | 620mA | Shielded | 300mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

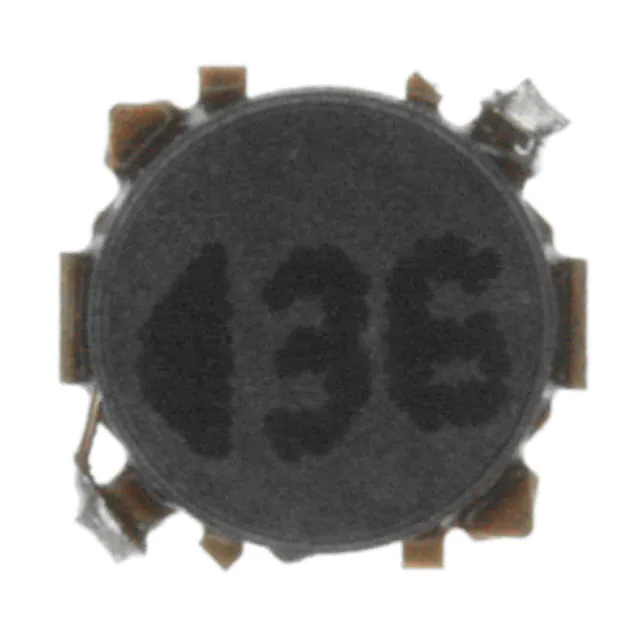

ELL-4LG220MAFIXED IND 22UH 640MA 390MOHM SMD Panasonic Electronic Components |
4,405 | 0.68 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 640 mA | 550mA | Shielded | 390mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

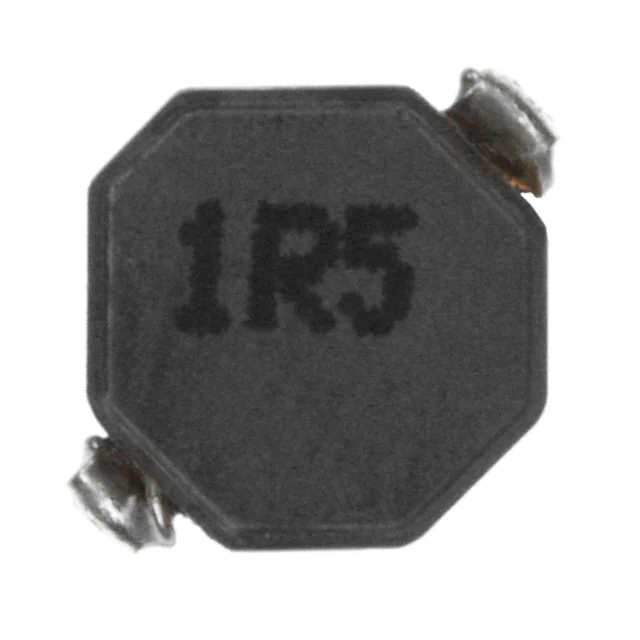

ELL-5PS1R5NFIXED IND 1.5UH 2.4A 28 MOHM SMD Panasonic Electronic Components |
4,397 | 0.00 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 2.4 A | 2.4A | Shielded | 28mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

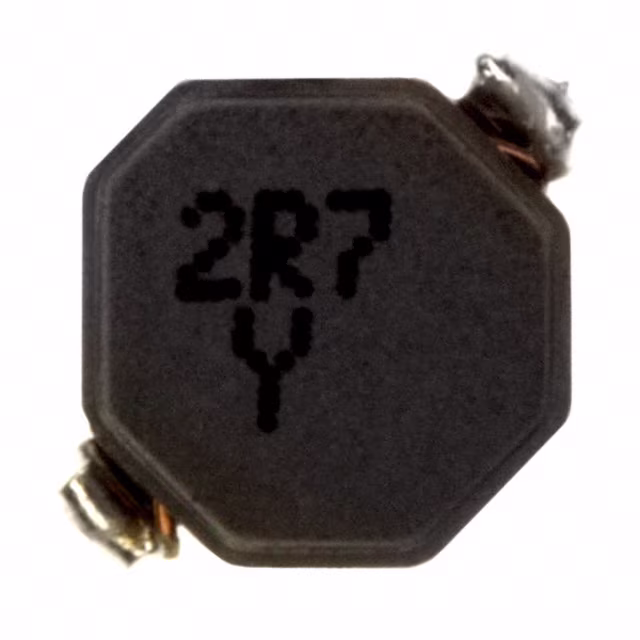

ELL-5PS2R7NFIXED IND 2.7UH 2.05A 40MOHM SMD Panasonic Electronic Components |
3,769 | 0.00 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±30% | 2.05 A | 2A | Shielded | 40mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

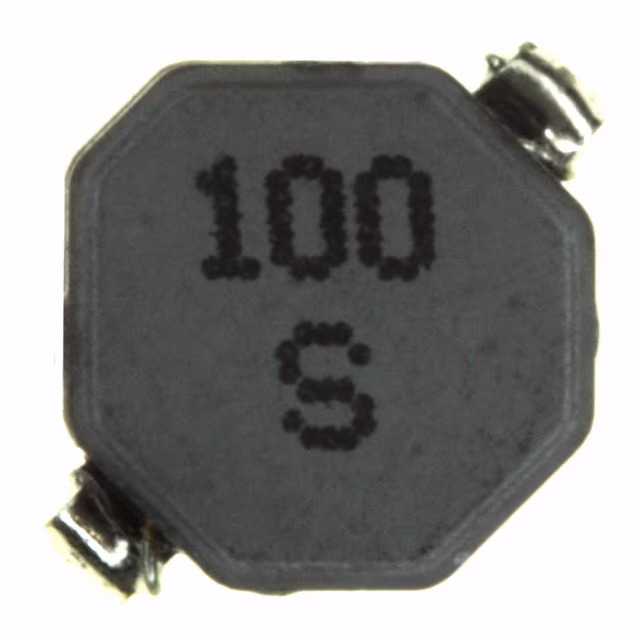

ELL-5PS100MFIXED IND 10UH 1.1A 120 MOHM SMD Panasonic Electronic Components |
4,655 | 0.00 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 1.1 A | 1A | Shielded | 120mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

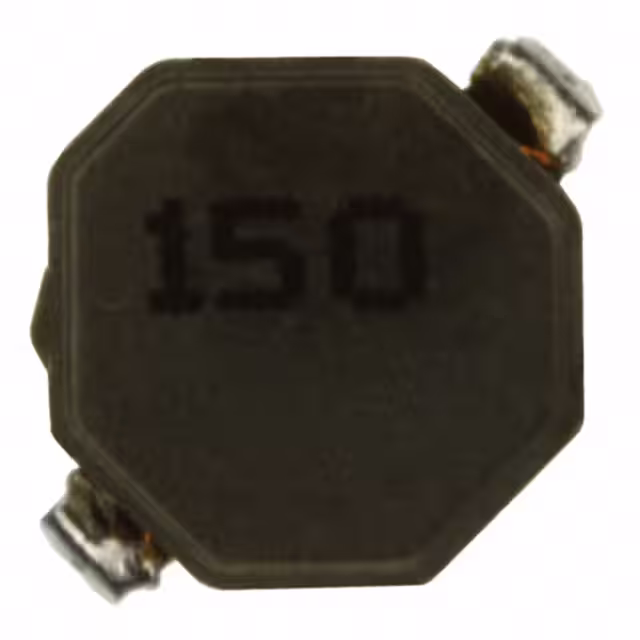

ELL-5PS150MFIXED IND 15UH 1A 170 MOHM SMD Panasonic Electronic Components |
2,967 | 0.00 |
|
Datasheet |
S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 1 A | 790mA | Shielded | 170mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
