IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

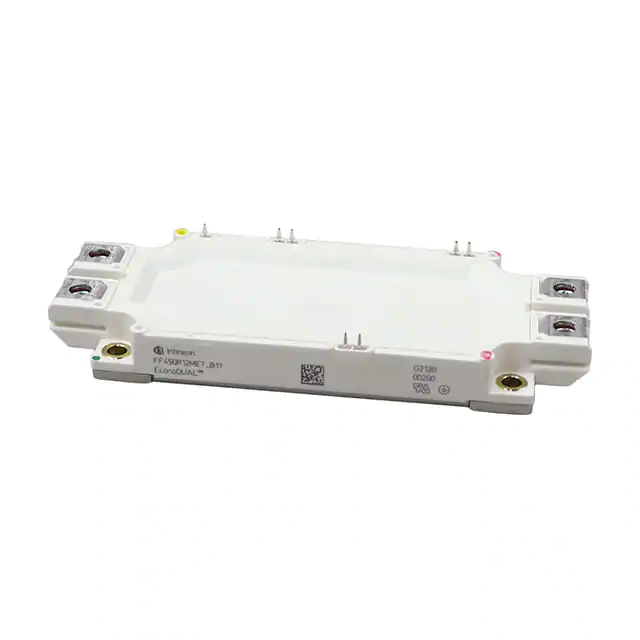

FF450R12ME7B11BPSA1ECONODUAL 3 WITH TRENCHSTOP IGBT Infineon Technologies |
10 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 450 A | - | 1.75V @ 15V, 450A | 40 µA | 69 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONOD |
|
FF450R12KE4EHOSA1IGBT MOD 1200V 520A 2400W Infineon Technologies |
19 | 0.00 |
|
- |
C | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 520 A | 2400 W | 2.15V @ 15V, 450A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF300R17KE4HOSA1IGBT MOD 1700V 440A 1800W Infineon Technologies |
11 | 0.00 |
|
- |
C | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 440 A | 1800 W | 2.3V @ 15V, 300A | 1 mA | 24.5 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|

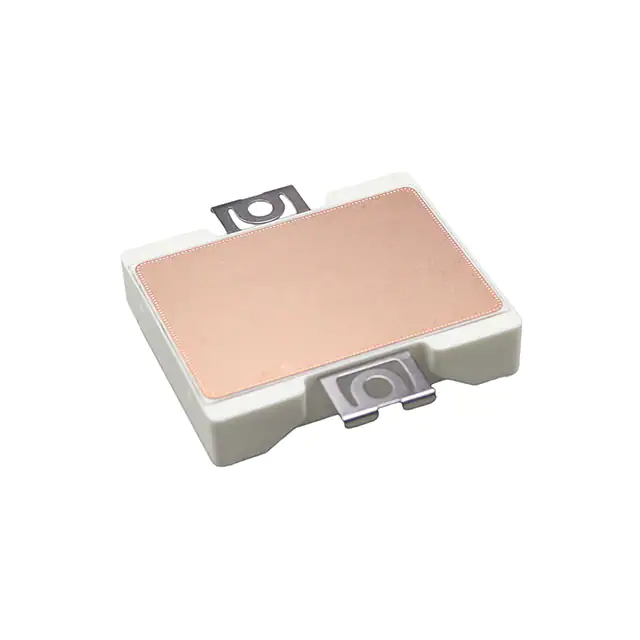

F3L11MR12W2M1B74BOMA1LOW POWER EASY Infineon Technologies |
14 | 0.00 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1200 V | 100 A | - | 1.5V @ 15V, 100A | 9 µA | 21.7 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|
FF450R12ME4B11BPSA2MEDIUM POWER ECONO AG-ECONOD-411 Infineon Technologies |
15 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 675 A | 2250 W | 2.1V @ 15V, 450A | 3 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|

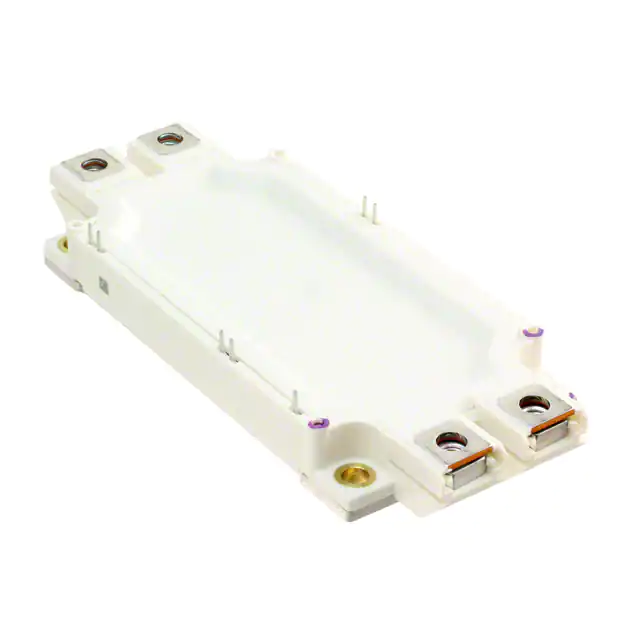

FF450R12ME4BOSA1IGBT MOD 1200V 675A 2250W Infineon Technologies |
10 | 0.00 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 675 A | 2250 W | 2.1V @ 15V, 450A | 3 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF600R12KE4PBOSA1IGBT MODULE 1200V Infineon Technologies |
2 | 0.00 |
|
- |
C | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-62MM-1 |
|

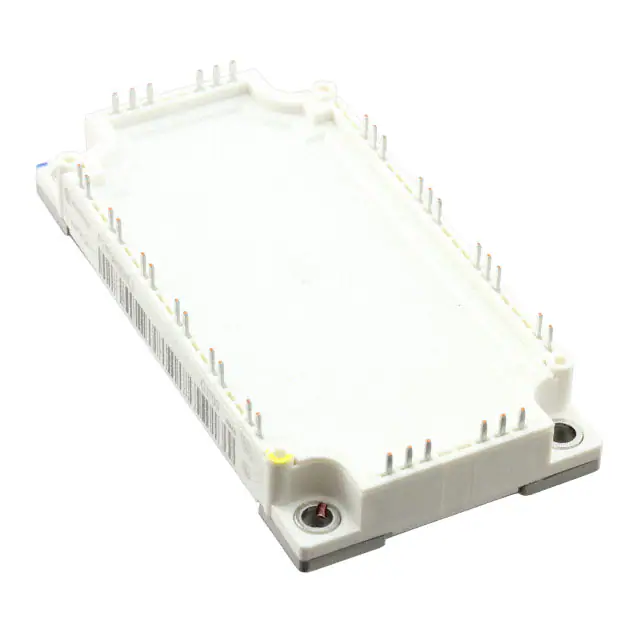

FS150R06KE3BOSA1IGBT MOD 600V 150A 430W Infineon Technologies |
2 | 0.00 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 150 A | 430 W | 1.9V @ 15V, 150A | 1 mA | 9.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

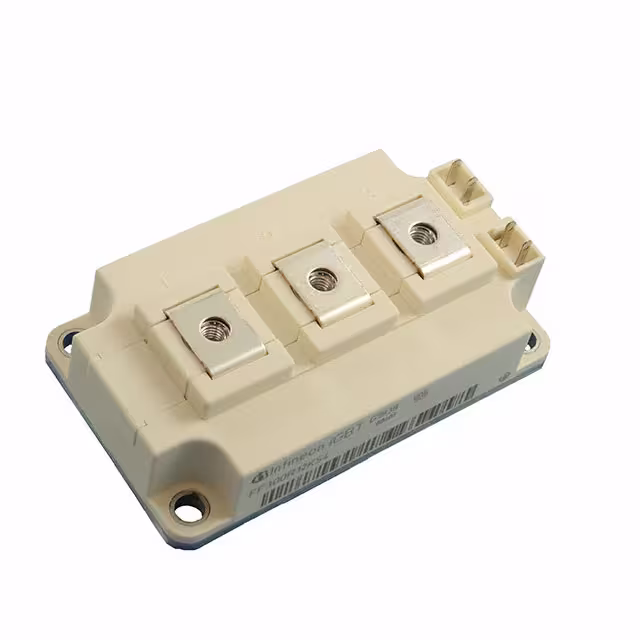

FF300R12KS4HOSA1IGBT MOD 1200V 370A 1950W Infineon Technologies |
23 | 0.00 |
|
- |
C | Module | Tray | Active | - | 2 Independent | 1200 V | 370 A | 1950 W | 3.75V @ 15V, 300A | 5 mA | 20 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FF400R12KE3HOSA1IGBT MOD 1200V 580A 2000W Infineon Technologies |
20 | 0.00 |
|
- |
C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 580 A | 2000 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
