IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS200R06KE3BOSA1IGBT MOD 600V 200A 600W Infineon Technologies |
7 | 0.00 |
|
- |
EconoPACK™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 200 A | 600 W | 1.9V @ 15V, 200A | 1 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS150R12KT4B9BOSA1IGBT MOD 1200V 150A 750W Infineon Technologies |
6 | 0.00 |
|
- |
EconoPACK™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | 750 W | 2.1V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF300R17KE3HOSA1IGBT MODULE 1700V 1450W Infineon Technologies |
15 | 0.00 |
|
- |
C | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | - | 1450 W | 2.45V @ 15V, 300A | 3 mA | 27 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|

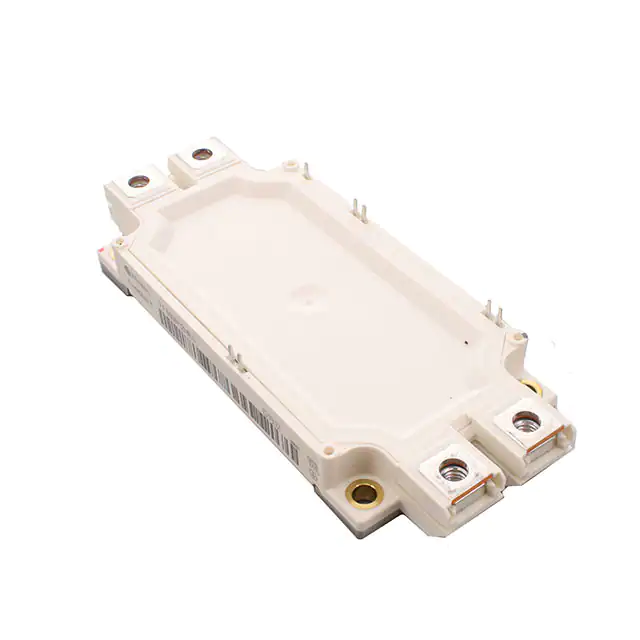

FF600R12ME4BOSA1IGBT MODULE 1200V 4050W Infineon Technologies |
10 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | - | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF900R12IP4BOSA2IGBT MOD 1200V 900A 5100W Infineon Technologies |
4 | 0.00 |
|
- |
PrimePack™2 | Module | Tray | Active | Trench Field Stop | Single | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF900R12IE4PBOSA1IGBT MOD 1200V 900A 20MW Infineon Technologies |
6 | 0.00 |
|
- |
PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 900 A | - | 2.1V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

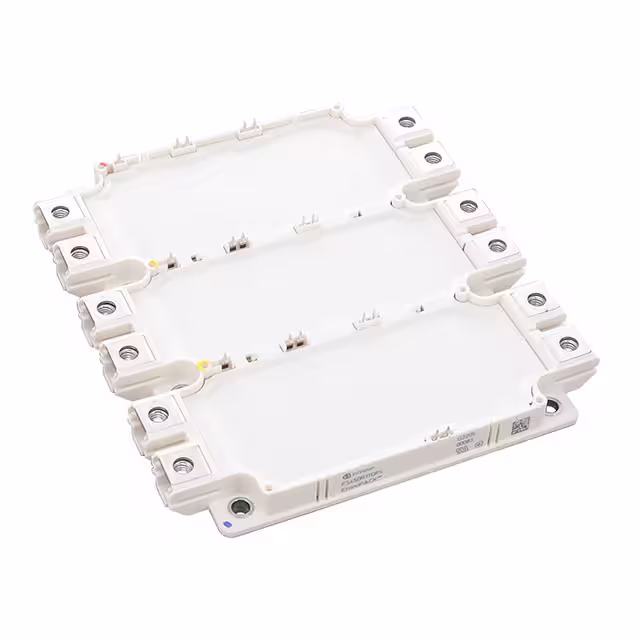

FS450R17OP4BPSA1MEDIUM POWER ECONO AG-ECONOPP-2 Infineon Technologies |
4 | 0.00 |
|
- |
EconoPACK™+ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 450 A | - | 2.2V @ 15V, 450A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOPP-2-1 |
|
FZ1200R12HP4HOSA2IGBT MOD 1200V 1790A 7150W Infineon Technologies |
2 | 0.00 |
|
- |
IHM-B | Module | Tray | Active | Trench | Single Switch | 1200 V | 1790 A | 7150 W | 2.05V @ 15V, 1200A | 5 mA | 74 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FZ2400R17HP4HOSA2IGBT MODULE 1700V 400A Infineon Technologies |
2 | 0.00 |
|
- |
IHM-B | Module | Tray | Active | - | Single Switch | 1700 V | 2400 A | 15500 W | 2.25V @ 15V, 2.4kA | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
FZ1600R17HP4B2BOSA2IGBT MODULE 1700V 1600A Infineon Technologies |
10 | 0.00 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 1700 V | 1600 A | 10500 W | 2.25V @ 15V, 1.6kA | 5 mA | 130 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | A-IHV130-3 |
