IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS75R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies |
14 | 0.00 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|

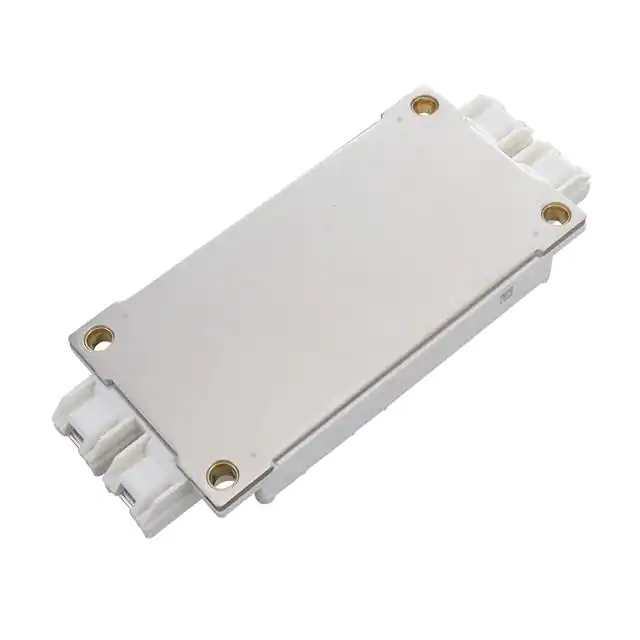

FF300R12ME7B11BPSA1MEDIUM POWER ECONO, AG-ECONOD-74 Infineon Technologies |
10 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 300 A | - | 1.75V @ 15V, 300A | 20 µA | 46 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONOD |
|

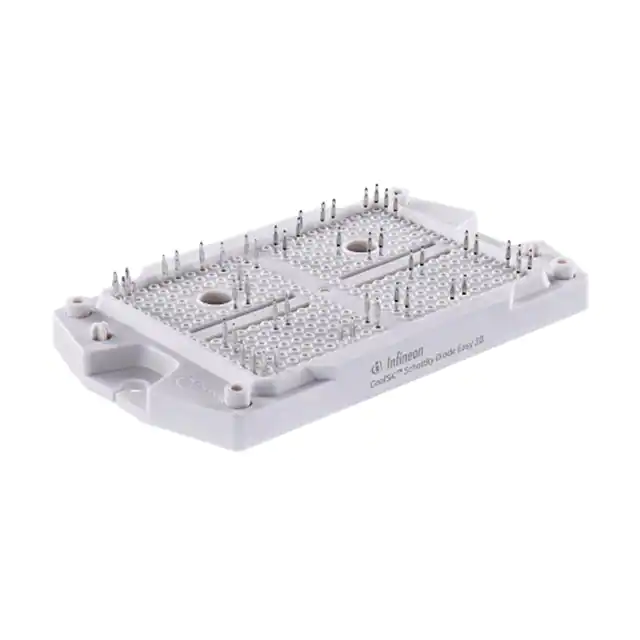

FS3L100R07W3S5B11BPSA1LOW POWER EASY AG-EASY3B-1 Infineon Technologies |
5 | 0.00 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 70 A | - | 1.38V @ 15V, 50A | 7 µA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
FZ400R12KE3HOSA1IGBT MOD 1200V 650A 2250W Infineon Technologies |
2 | 0.00 |
|
- |
- | Module | Tray | Active | - | Single | 1200 V | 650 A | 2250 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FD300R12KE3HOSA1IGBT MOD 1200V 480A 1470W Infineon Technologies |
10 | 0.00 |
|
- |
- | Module | Tray | Active | - | Single | 1200 V | 480 A | 1470 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|

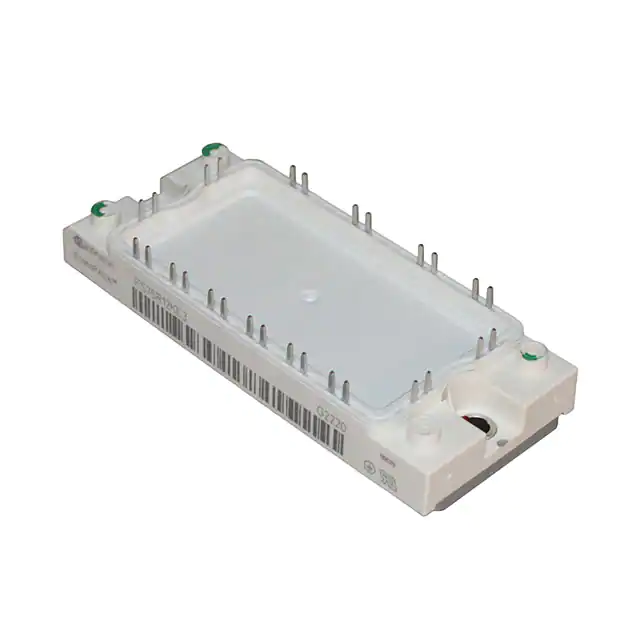

FS75R12KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 Infineon Technologies |
17 | 0.00 |
|
- |
- | Module | Tray | Active | - | Full Bridge Inverter | 1200 V | 105 A | 350 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP100R12KT4BOSA1IGBT MOD 1200V 100A 515W Infineon Technologies |
12 | 0.00 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS200R12N3T7BPSA1LOW POWER ECONO AG-ECONO3-4 Infineon Technologies |
20 | 0.00 |
|
- |
EasyPACK™3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | - | 1.8V @ 15V, 200A | 16 µA | 40.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
|
FS100R06KE3BOSA1IGBT MOD 600V 100A 335W Infineon Technologies |
16 | 0.00 |
|
- |
EconoPACK™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | Three Phase Inverter | 600 V | 100 A | 335 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS200R07PE4BOSA1IGBT MOD 650V 200A 600W Infineon Technologies |
9 | 0.00 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 200 A | 600 W | 1.95V @ 15V, 200A | 1 mA | 12 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
