IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF1200R17IP5BPSA1IGBT MOD 1700V 1200A 20MW Infineon Technologies |
8,107 | 0.00 |
|
- |
PrimePack™2 | Module | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 1200 A | - | 2.3V @ 15V, 1200A | 5 mA | 68 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FS950R08A6P2BBPSA1IGBT MODULE 750V 950A Infineon Technologies |
5 | 0.00 |
|
- |
HybridPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 750 V | 950 A | 870 W | 1.35V @ 15V, 450A | 1 mA | 80 nF @ 50 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-HYBRIDD-2 |
|
FS500R17OE4DBOSA1IGBT MOD 1700V 740A 3000W Infineon Technologies |
4 | 0.00 |
|
- |
EconoPACK™+ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 740 A | 3000 W | 2.3V @ 15V, 500A | 3 mA | 40 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

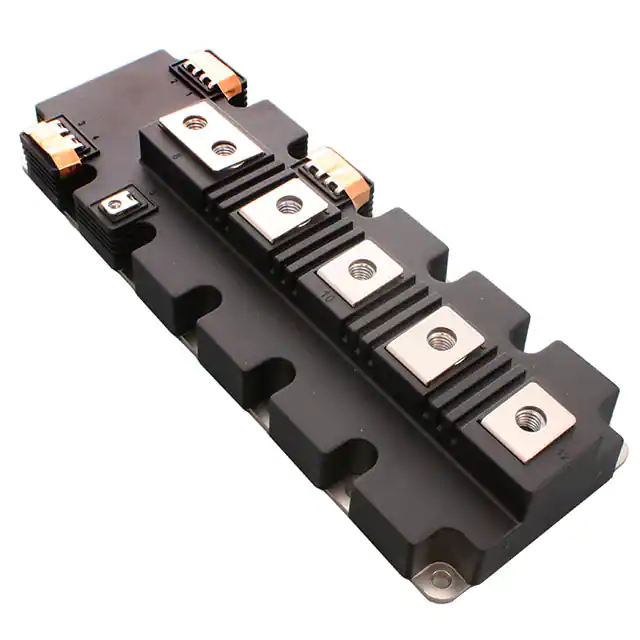

FF1400R17IP4BOSA1IGBT MODULE 1700V 1400A Infineon Technologies |
6 | 0.00 |
|
- |
PrimePACK™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 1400 A | 955000 W | 2.2V @ 15V, 1400A | 5 mA | 110 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FZ1600R17KE3NOSA1IGBT MOD 1700V 2300A 8950W Infineon Technologies |
2 | 0.00 |
|
- |
- | Module | Tray | Not For New Designs | NPT | Three Phase Inverter | 1700 V | 2300 A | 8950 W | 2.45V @ 15V, 600A | 5 mA | 145 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
FZ2400R12HP4HOSA2IGBT MODULE 1200V 3460A Infineon Technologies |
2 | 0.00 |
|
- |
IHM-B | Module | Tray | Active | - | Single Switch | 1200 V | 3460 A | 12500 W | 2.05V @ 15V, 2400A | 5 mA | 150 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|

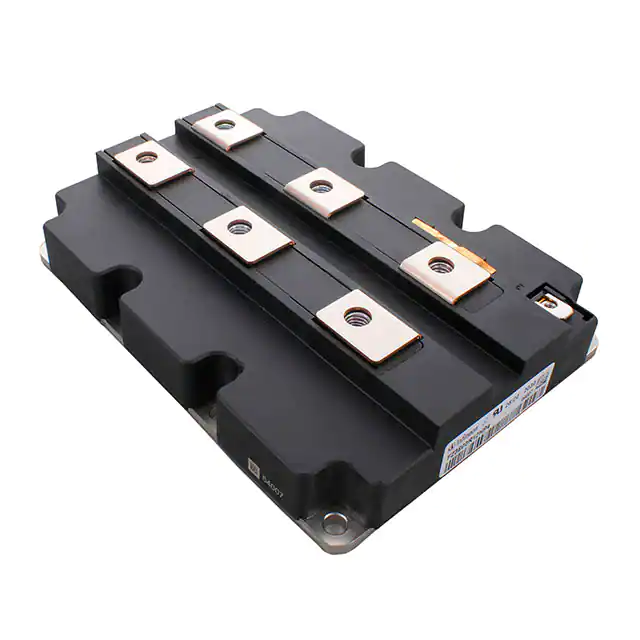

FZ3600R12HP4HOSA2IGBT MODULE 1200V 4930A Infineon Technologies |
3 | 0.00 |
|
- |
IHM-B | Module | Tray | Active | Trench | Single Switch | 1200 V | 4930 A | 19000 W | 2.05V @ 15V, 3600A | 5 mA | 225 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|

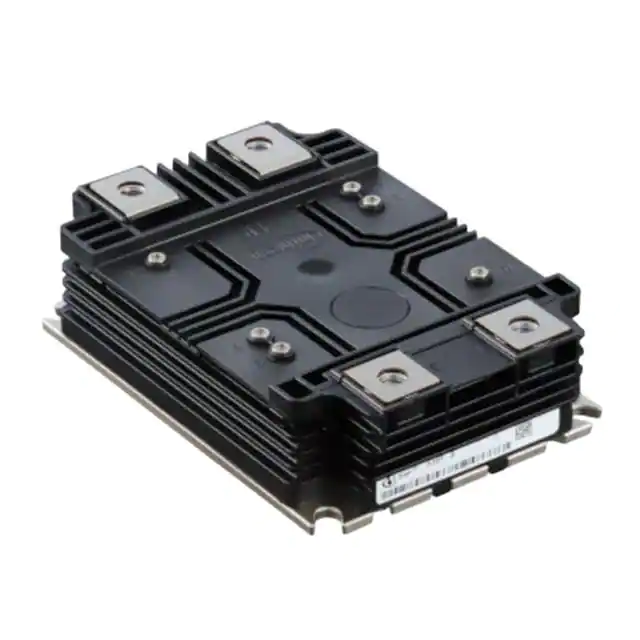

FF225R65T3E3BPSA1IHV IHM T XHP 3 3-6 5K AG-XHP3K6 Infineon Technologies |
3 | 0.00 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 5900 V | 225 A | 1000000 W | 3.4V @ 15V, 225A | 5 mA | 65.6 nF @ 25 V | Standard | No | 125°C (TJ) | Chassis Mount | AG-XHP3K65 |
|
FZ1600R33HE4BPSA1IHV IHM T XHP 3 3-6 5K AG-IHVB13 Infineon Technologies |
2 | 0.00 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | 2 Independent | 3300 V | 1600 A | 3600 W | 2.65V @ 15V, 1.6kA | 5 mA | 187 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB130-3 |
|

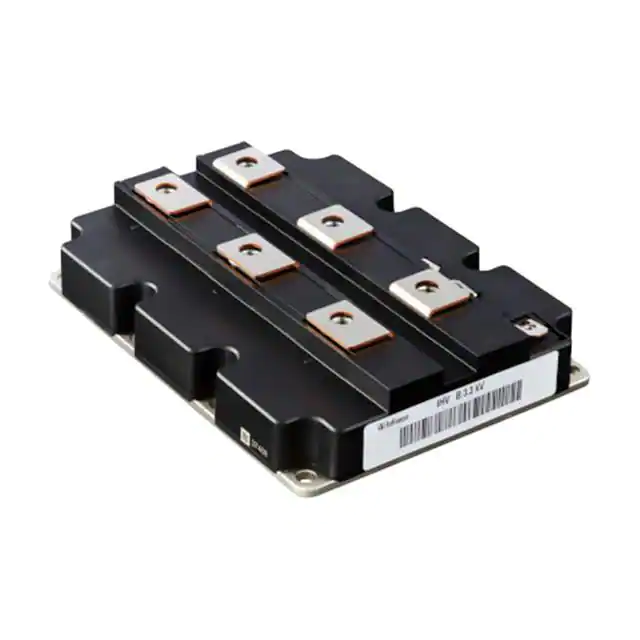

FZ1800R45HL4BPSA1IHV IHM T XHP 3 3-6 5K AG-IHVB19 Infineon Technologies |
3 | 0.00 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | 3 Independent | 4500 V | 1800 A | 4000 W | 2.8V @ 15V, 1.8kA | 5 mA | 297 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB190 |
