Home > Products > Discrete Semiconductor Products > Transistors > IGBTs > IGBT Modules

IGBT Modules

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
FS25R12W1T4B11BOMA1 IGBT MOD 1200V 45A 205W Infineon Technologies	17	RFQ	-	EasyPACK™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	45 A	205 W	2.25V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
FP30R06W1E3BOMA1 IGBT MODULE 600V 37A 115W Infineon Technologies	11	RFQ	-	EasyPIM™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	600 V	37 A	115 W	2V @ 15V, 30A	1 mA	1.65 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount	Module
FP15R12W1T7B11BOMA1 IGBT MODULE LOW POWER EASY Infineon Technologies	7,025	RFQ	-	TrenchStop™	Module	Bulk	Active	Trench Field Stop	Half Bridge Inverter	1200 V	-	-	-	-	-	Standard	No	175°C (TJ)	Chassis Mount	AG-EASY1B-2
DDB6U50N16W1RPBPSA1 LOW POWER EASY AG-EASY1B-711 Infineon Technologies	27	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Single Chopper	1200 V	50 A	-	1.5V @ 15V, 50A	6.2 µA	11.1 nF @ 25 V	Three Phase Bridge Rectifier	No	-40°C ~ 175°C (TJ)	Chassis Mount	AG-EASY1B
DDB6U50N16W1RPB11BPSA1 LOW POWER EASY Infineon Technologies	30	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Single Chopper	1200 V	50 A	-	1.5V @ 15V, 50A	6.2 µA	11.1 nF @ 25 V	Three Phase Bridge Rectifier	No	-40°C ~ 175°C (TJ)	Chassis Mount	AG-EASY1B

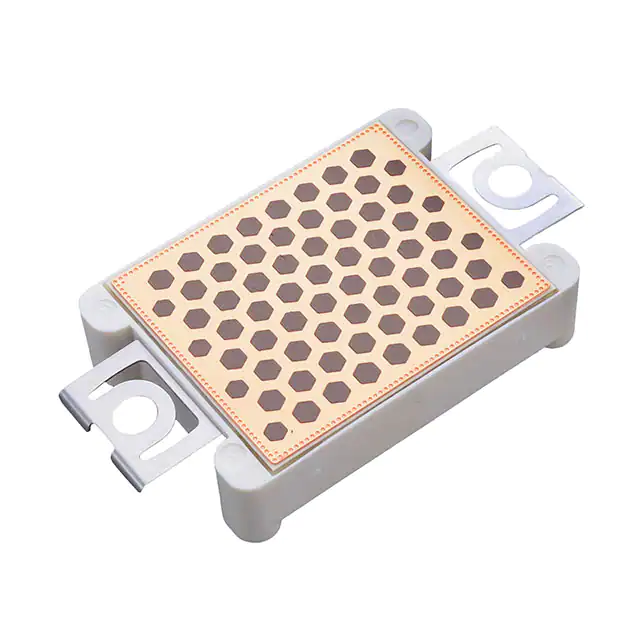

FS25R12W1T7PB11BPSA1 LOW POWER EASY AG-EASY1B-2 Infineon Technologies	9	RFQ	-	EasyPACK™, TRENCHSTOP™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	-	-	5.6 µA	4.77 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	Module
FP15R12W1T7BOMA1 LOW POWER EASY AG-EASY1B-1 Infineon Technologies	9	RFQ	-	EasyPIM™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	15 A	-	-	3 µA	2.82 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-EASY1B-2

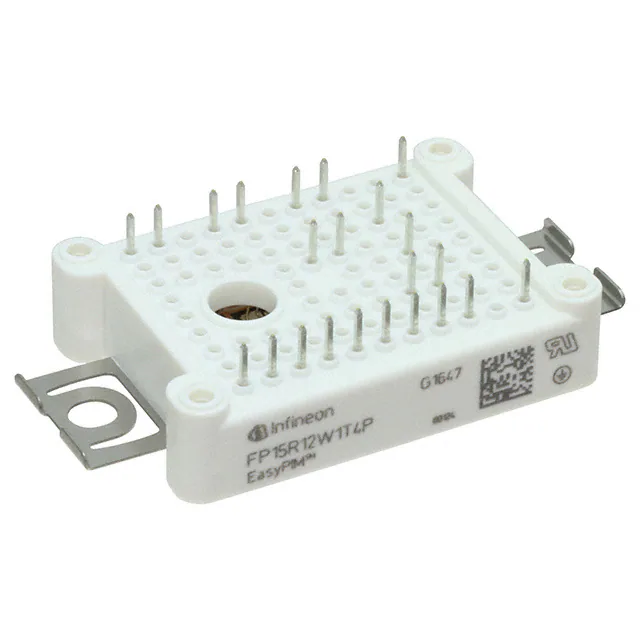

FP15R12W1T4PBPSA1 IGBT MOD 1200V 30A 20MW Infineon Technologies	29	RFQ	-	EasyPIM™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	30 A	-	2.25V @ 15V, 15A	1 mA	890 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C	Chassis Mount	Module

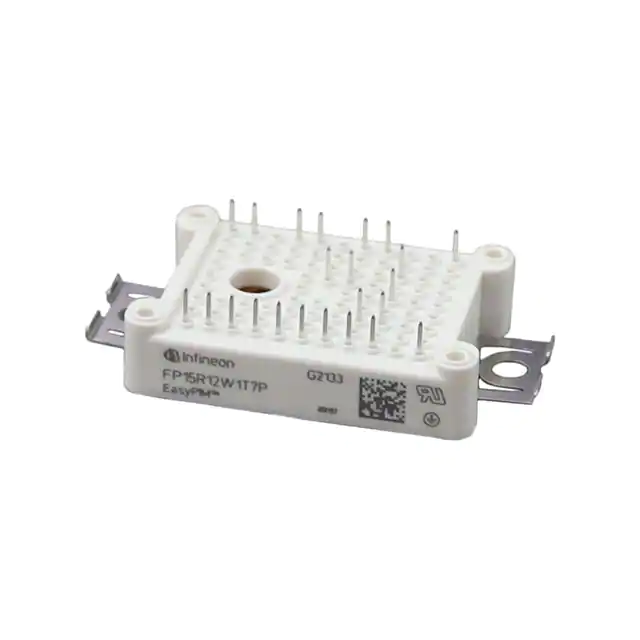

FP15R12W1T7PBPSA1 LOW POWER EASY AG-EASY1B-1 Infineon Technologies	13	RFQ	-	EasyPIM™, TRENCHSTOP™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	15 A	-	-	3 µA	2.82 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-EASY1B
FP25R12W1T7B11BPSA1 IGBT MODULE 1200V 25A 20MW EASY Infineon Technologies	24	RFQ	-	EasyPIM™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	-	1.6V @ 15V, 25A (Typ)	5.6 µA	4.77 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C	Chassis Mount	AG-EASY1B-2

Total 1426 Record«Prev 1... 37 38 39 404142 43 44...143 Next»
