IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F3L75R12W1H3BPSA1LOW POWER EASY AG-EASY1B-311 Infineon Technologies |
24 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS75R12W2T4BOMA1IGBT MOD 1200V 107A 375W Infineon Technologies |
9 | 0.00 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 107 A | 375 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
DF200R07W2H3B77BPSA1LOW POWER EASY AG-EASY2B-411 Infineon Technologies |
15 | 0.00 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 70 A | - | 2V @ 15V, 50A | 21 µA | 2.95 nF @ 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP35R12W2T4PB11BPSA1IGBT MOD 1200V 70A 20MW Infineon Technologies |
8 | 0.00 |
|
- |
EasyPIM™ 2B | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 70 A | - | 2.2V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
F3L100R12W2H3B11BPSA1IGBT MOD 1200V 100A 375W Infineon Technologies |
15 | 0.00 |
|
- |
EasyPACK™ | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 100 A | 375 W | 1.75V @ 15V, 50A | 1 mA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

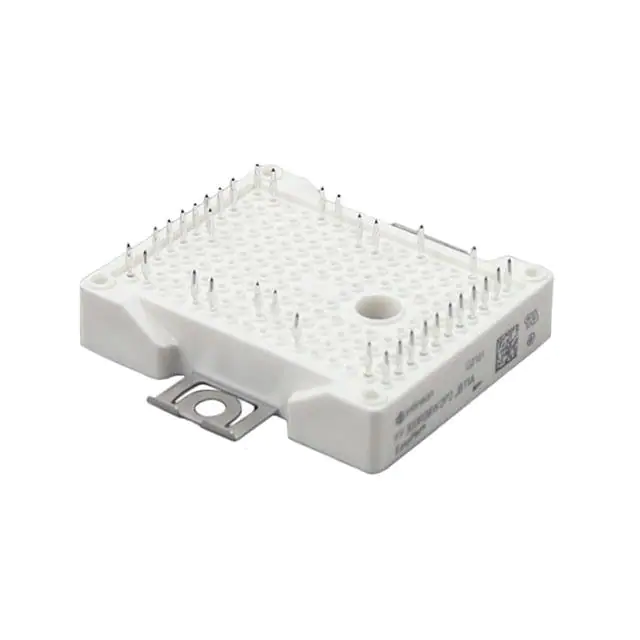

FF300R08W2P2B11ABOMA1EASY PACK AG-EASY2B-3 Infineon Technologies |
4 | 0.00 |
|
- |
EasyPACK™ | Module | Tray | Active | - | 2 Independent | 750 V | 200 A | - | 1.18V @ 15V, 200A | 1 mA | 53 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B-3 |
|

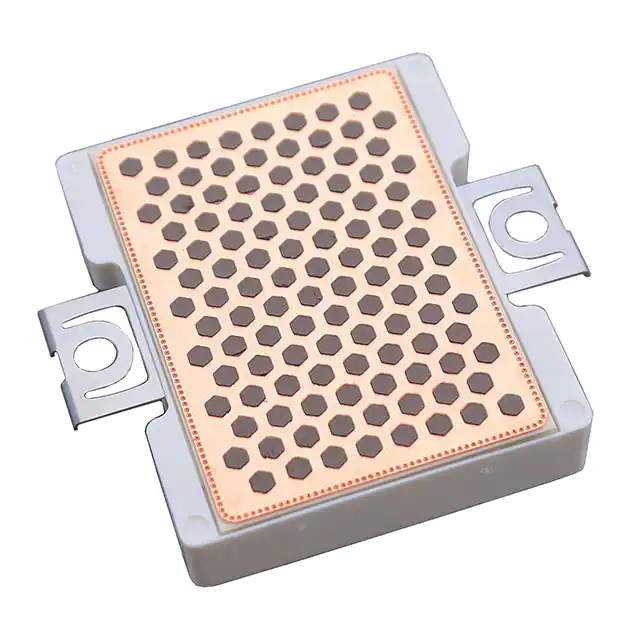

FS100R12W2T7PBPSA1LOW POWER EASY AG-EASY2B-711 Infineon Technologies |
19 | 0.00 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 70 A | - | - | 9 µA | 21.7 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|

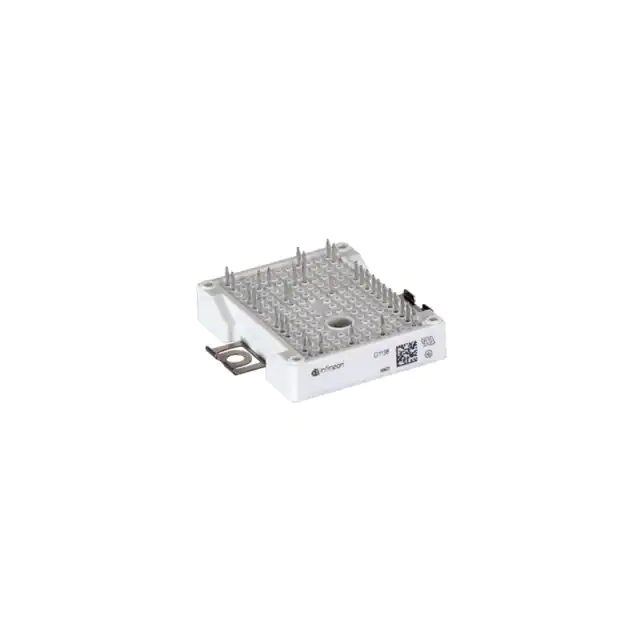

DF80R12W2H3FB11BPSA1IGBT MOD 1200V 20A 20MW Infineon Technologies |
13 | 0.00 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 20 A | - | 1.7V @ 15V, 20A | 1 mA | 2.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FP50R12KT3BOSA1IGBT MOD 1200V 75A 280W Infineon Technologies |
7 | 0.00 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FP35R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2C-211 Infineon Technologies |
9 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 210 W | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2C |
