IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF150R12KT3GHOSA1IGBT MOD 1200V 225A 780W Infineon Technologies |
8,807 | 0.00 |
|
- |
C | Module | Bulk | Not For New Designs | Trench Field Stop | Single Chopper | 1200 V | 225 A | 780 W | 2.15V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FS100R12N2T7B15BPSA1LOW POWER ECONO Infineon Technologies |
14 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 100 A | - | 1.8V @ 15V, 100A | 10 µA | 21.7 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FP15R12KE3GBPSA1LOW POWER ECONO AG-ECONO2C-311 Infineon Technologies |
6 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 105 W | 2.45V @ 15V, 10A | 1 mA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2C |
|

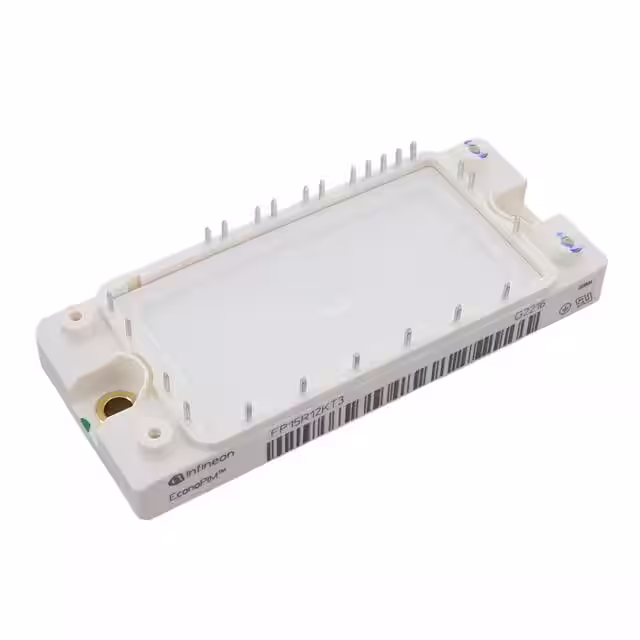

FP15R12KT3BPSA1LOW POWER ECONO AG-ECONO2C-311 Infineon Technologies |
6 | 0.00 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 25 A | 105 W | 2.45V @ 15V, 10A | 5 mA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2C |
|

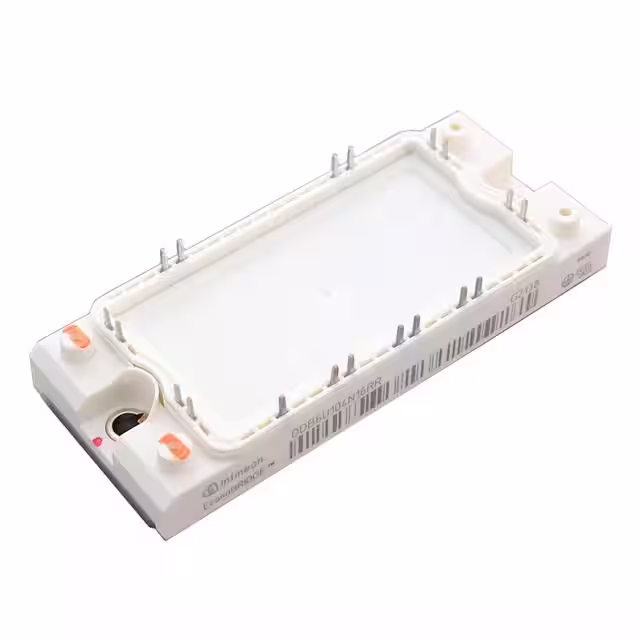

DDB6U104N16RRBPSA1LOW POWER ECONO AG-ECONO2B-211 Infineon Technologies |
5 | 0.00 |
|
- |
- | Module | Tray | Active | - | Single Chopper | 1200 V | 50 A | - | 2.8V @ 15V, 50A | 1 mA | 3.3 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
DDB6U134N16RRB80BPSA1LOW POWER ECONO AG-ECONO2B-8231 Infineon Technologies |
13 | 0.00 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS35R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 Infineon Technologies |
12 | 0.00 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 55 A | 210 W | 2.15V @ 15V, 35A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
DDB6U180N16RRB11BPSA2LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies |
15 | 0.00 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 140 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FF225R17ME7B11BPSA1ECONODUAL3 MODULE WITH TRENCHSTO Infineon Technologies |
9 | 0.00 |
|
- |
EconoDUAL™ 3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 225 A | - | 1.85V @ 15V, 225A | 5 mA | 22.9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
FS50R12KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 Infineon Technologies |
7 | 0.00 |
|
- |
- | Module | Tray | Active | - | Full Bridge Inverter | 1200 V | 75 A | 270 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
