IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F3L400R07W3S5B59BPSA1LOW POWER EASY AG-EASY3B-7011 Infineon Technologies |
3 | 0.00 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 255 A | - | 1.13V @ 15V, 100A | 19 µA | 14.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
FP75R06KE3BOSA1IGBT MODULE 600V 95A 250W Infineon Technologies |
7 | 0.00 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 95 A | 250 W | 1.9V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS75R12KT3GBOSA1IGBT MOD 1200V 100A 355W Infineon Technologies |
3 | 0.00 |
|
- |
EconoPACK™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FD300R17KE4PHOSA1IGBT MODULE 1700V 300A AG62MM-1 Infineon Technologies |
2 | 0.00 |
|
- |
C | Module | Tray | Active | Trench Field Stop | Single Chopper | 1700 V | 300 A | - | 2.3V @ 15V, 300A | 1 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-62MM-1 |
|
FP150R12N3T7B11BPSA1LOW POWER ECONO Infineon Technologies |
2 | 0.00 |
|
- |
EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
FP100R12N3T4B80BPSA1LOW POWER ECONO AG-ECONO3-386 Infineon Technologies |
10 | 0.00 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS150R12N3T4B80BPSA1LOW POWER ECONO AG-ECONO3B-431 Infineon Technologies |
10 | 0.00 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS100R12KT3BOSA1IGBT MOD 1200V 140A 480W Infineon Technologies |
5 | 0.00 |
|
- |
EconoPIM™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 140 A | 480 W | 2.15V @ 15V, 100A | 5 mA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|

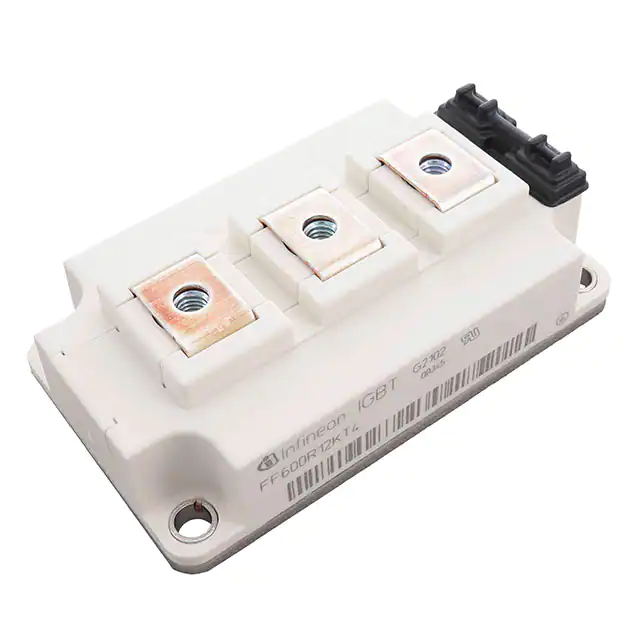

FF600R12KT4HOSA162MM POWER MODULE 1200 V WITH IG Infineon Technologies |
4,960 | 0.00 |
|
- |
C | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-62MM |
|

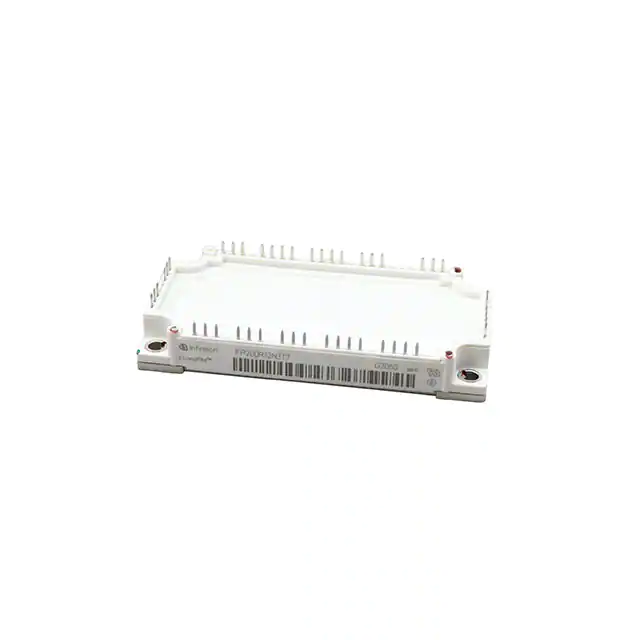

FP200R12N3T7BPSA1LOW POWER ECONO AG-ECONO3-3 Infineon Technologies |
10 | 0.00 |
|
- |
EconoPIM™3, TRENCHSTOP™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 200 A | - | 1.55V @ 15V, 200A | 20 µA | 40.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
