IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F3L400R10W3S7B11BPSA1IGBT MODULE LOW POWER EASY Infineon Technologies |
8 | 0.00 |
|
- |
- | Module | Tray | Active | Trench | - | 950 V | - | - | 1.4V @ 15V, 150A | 70 µA | 25.2 nF @ 25 V | - | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
F3L600R10W4S7FC22BPSA1LOW POWER EASY AG-EASY4B-7011 Infineon Technologies |
6 | 0.00 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 950 V | 310 A | - | 2.25V @ 15V, 400A | 1 mA | 49.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY4B |
|

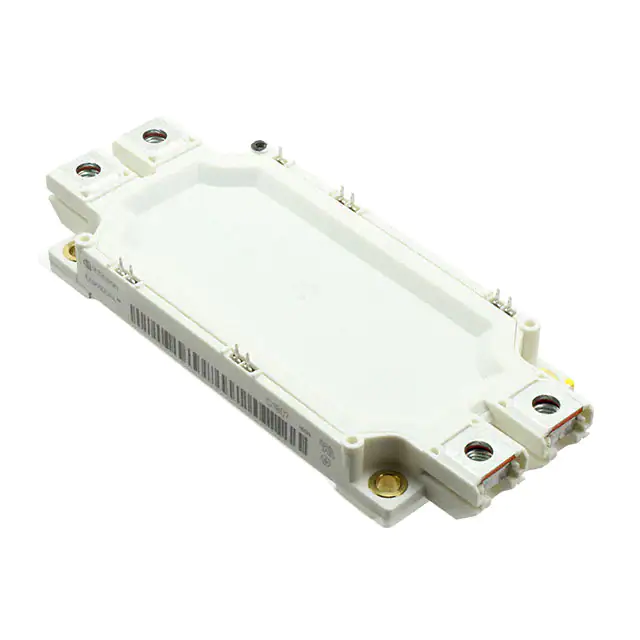

FF600R12ME4CBOSA1IGBT MOD 1200V 1060A 4050W Infineon Technologies |
10 | 0.00 |
|
- |
- | Module | Tray | Not For New Designs | Trench Field Stop | Half Bridge | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF750R17ME7DB11BPSA1MEDIUM POWER ECONO Infineon Technologies |
2 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 750 A | - | 1.85V @ 15V, 750A | 5 mA | 78.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
FS225R12OE4BOSA1IGBT MOD 1200V 350A 1250W Infineon Technologies |
2 | 0.00 |
|
- |
EconoPACK™+ | Module | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 350 A | 1250 W | 2.15V @ 15V, 225A | 3 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS300R17OE4BOSA1IGBT MOD 1700V 450A 1850W Infineon Technologies |
5 | 0.00 |
|
- |
EconoPACK™+ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1700 V | 450 A | 1850 W | 2.3V @ 15V, 300A | 3 mA | 24.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF1500R17IP5PBPSA1IGBT MOD 1700V 1500A AGPRIME3+-5 Infineon Technologies |
3 | 0.00 |
|
- |
PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1500 A | 1500 W | 2.2V @ 15V, 1.5kA | 5 mA | - | Standard | Yes | -40°C ~ 175°C | Chassis Mount | AG-PRIME3+-5 |
|
|
FF1800R17IP5PBPSA1IGBT MODULE 1700V 3600A Infineon Technologies |
3 | 0.00 |
|
- |
PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1800 A | 1800000 W | 2.2V @ 15V, 1800A | 5 mA | 105 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|

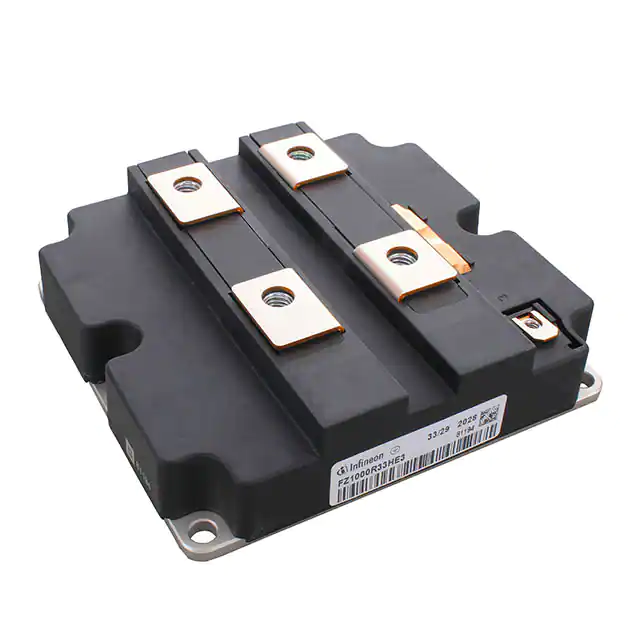

FZ1000R33HE3BPSA1IGBT MODULE 3300V 1000A Infineon Technologies |
3 | 0.00 |
|
- |
IHM-B | Module | Tray | Not For New Designs | Trench Field Stop | Single Switch | 3300 V | 1000 A | - | 3.1V @ 15V, 100A | 5 mA | 190 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|

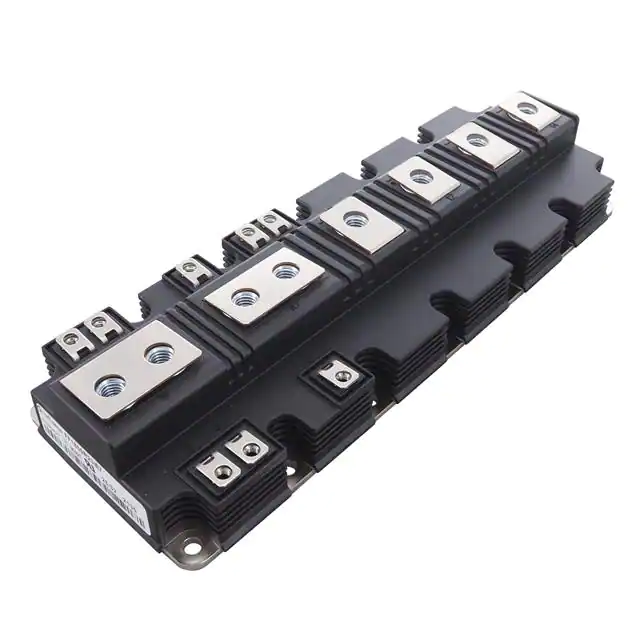

FF1800R23IE7BPSA1PP IHM I XHP 2.3KV AG-PRIME3+-7 Infineon Technologies |
2 | 0.00 |
|
- |
PrimePACK™3+ B | Module | Tray | Active | - | 2 Independent | 2300 V | 1800 A | - | 2.26V @ 15V, 1.8kA | 30 mA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-PRIME3+ |
