Home > Products > Discrete Semiconductor Products > Transistors > IGBTs > IGBT Modules

IGBT Modules

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	IGBT Type	Configuration	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Power - Max	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)	Input Capacitance (Cies) @ Vce	Input	NTC Thermistor	Operating Temperature	Mounting Type	Supplier Device Package
FS150R12N2T7B54BPSA1 LOW POWER ECONO Infineon Technologies	6	RFQ	-	EconoPACK™ 2	Module	Tray	Active	Trench Field Stop	Full Bridge Inverter	1200 V	150 A	-	1.8V @ 15V, 150A	12 µA	30.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-ECONO2B
F1225R12KT4GBOSA1 IGBT MOD 1200V 25A 160W Infineon Technologies	8	RFQ	-	EconoPACK™ 3	Module	Bulk	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	160 W	2.15V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount	Module
FS150R12KT3BOSA1 IGBT MOD 1200V 200A 700W Infineon Technologies	8	RFQ	-	EconoPACK™ 3	Module	Bulk	Active	Trench Field Stop	Three Phase Inverter	1200 V	200 A	700 W	2.15V @ 15V, 150A	5 mA	10.5 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount	Module
FS75R12KT3BPSA1 LOW POWER ECONO AG-ECONO2B-311 Infineon Technologies	11	RFQ	-	EconoPACK™ 2	Module	Tray	Active	Trench Field Stop	Full Bridge Inverter	1200 V	105 A	355 W	2.15V @ 15V, 75A	5 mA	5.3 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount	AG-ECONO2B
FS75R17KE3BOSA1 IGBT MOD 1700V 130A 465W Infineon Technologies	8	RFQ	-	-	Module	Tray	Active	-	Full Bridge	1700 V	130 A	465 W	2.45V @ 15V, 75A	5 mA	6.8 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount	Module

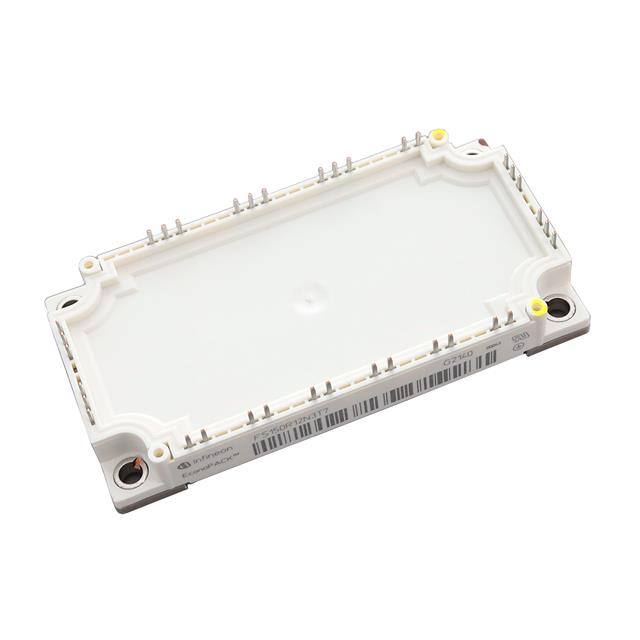

FS150R12N3T7BPSA1 LOW POWER ECONO AG-ECONO3B-711 Infineon Technologies	2	RFQ	-	EasyPACK™3, TRENCHSTOP™	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	150 A	-	1.8V @ 15V, 150A	12 µA	30.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount	AG-ECONO3B

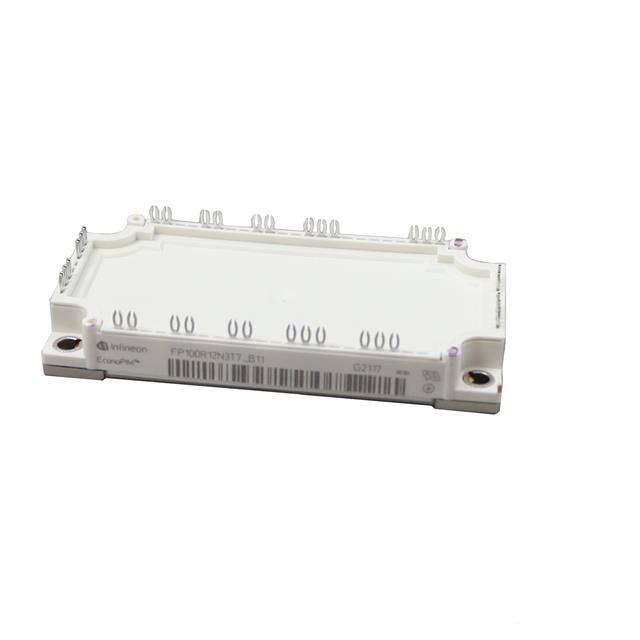

FP100R12N3T7B11BPSA1 LOW POWER ECONO AG-ECONO3B-711 Infineon Technologies	2	RFQ	-	EconoPIM™ 3	-	Tray	Active	Trench Field Stop	Three Phase Inverter	1200 V	100 A	-	-	-	-	Standard	No	-	-	-
FS100R17N3E4BOSA1 IGBT MOD 1700V 100A 600W Infineon Technologies	6	RFQ	-	-	Module	Tray	Active	Trench Field Stop	Three Phase Inverter	1700 V	100 A	600 W	2.3V @ 15V, 100A	1 mA	9 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount	Module

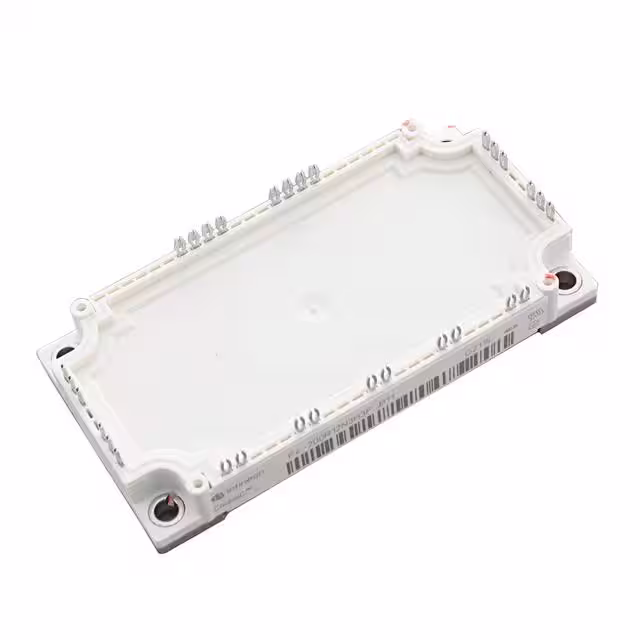

F4200R12N3H3FB11BPSA1 LOW POWER ECONO AG-ECONO3B-411 Infineon Technologies	10	RFQ	-	*	-	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
FF200R12KS4PHOSA1 IGBT MOD 1200V 275A 1400W Infineon Technologies	4	RFQ	-	-	Module	Tray	Active	-	Half Bridge	1200 V	275 A	1400 W	3.7V @ 15V, 200A	5 mA	13 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount	Module

Total 1426 Record«Prev 1... 43 44 45 464748 49 50...143 Next»
