IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

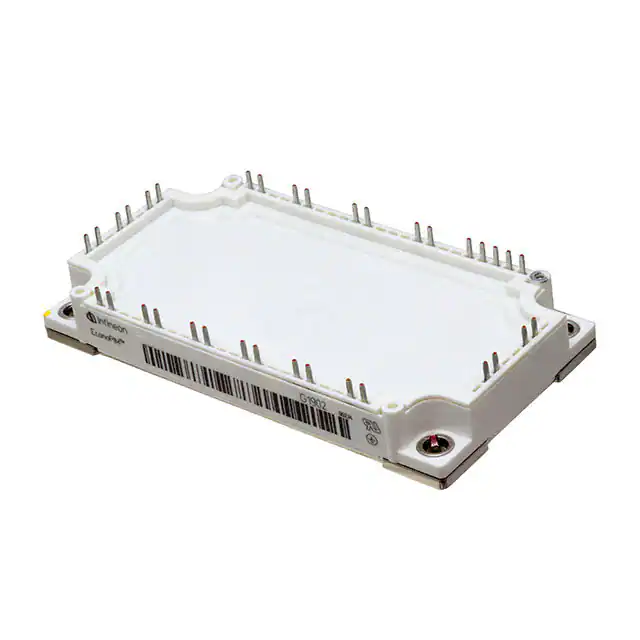

FP40R12KE3GBOSA1IGBT MOD 1200V 55A 210W Infineon Technologies |
4 | 0.00 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 210 W | 2.3V @ 15V, 40A | 1 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS50R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 Infineon Technologies |
12 | 0.00 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|

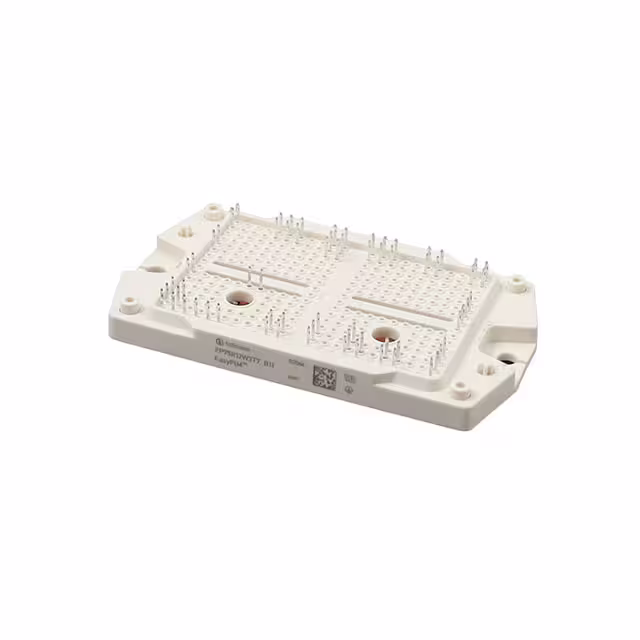

FP75R12W3T7B11BPSA1LOW POWER EASY AG-EASY3B-1 Infineon Technologies |
8 | 0.00 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP75R12N3T7B81BPSA1LOW POWER ECONO AG-ECONO3B-731 Infineon Technologies |
10 | 0.00 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP75R12N3T4B80BPSA1LOW POWER ECONO AG-ECONO3-386 Infineon Technologies |
10 | 0.00 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

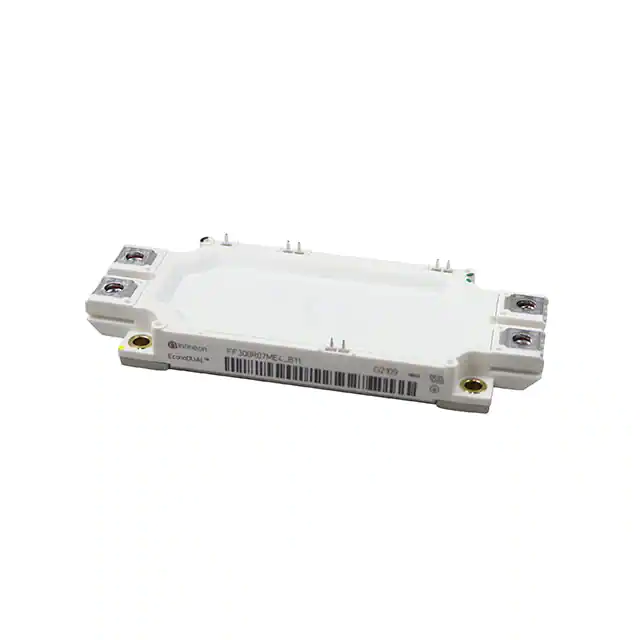

FF300R07ME4B11BPSA1MEDIUM POWER ECONO Infineon Technologies |
13 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 650 V | 390 A | 1100 W | 1.95V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-3 |
|
|
FP50R07N2E4BPSA1LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies |
15 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 70 A | - | 1.95V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FF200R12KT3HOSA1IGBT MODULE 1200V 1050W Infineon Technologies |
8 | 0.00 |
|
- |
C | Module | Bulk | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | - | 1050 W | 2.15V @ 15V, 200A | 5 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
DDB6U134N16RRBPSA1LOW POWER ECONO AG-ECONO2B-211 Infineon Technologies |
10 | 0.00 |
|
- |
- | Module | Tray | Active | - | Single Chopper | 1200 V | 70 A | 500 W | 2.75V @ 15V, 70A | 500 µA | 5.1 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|

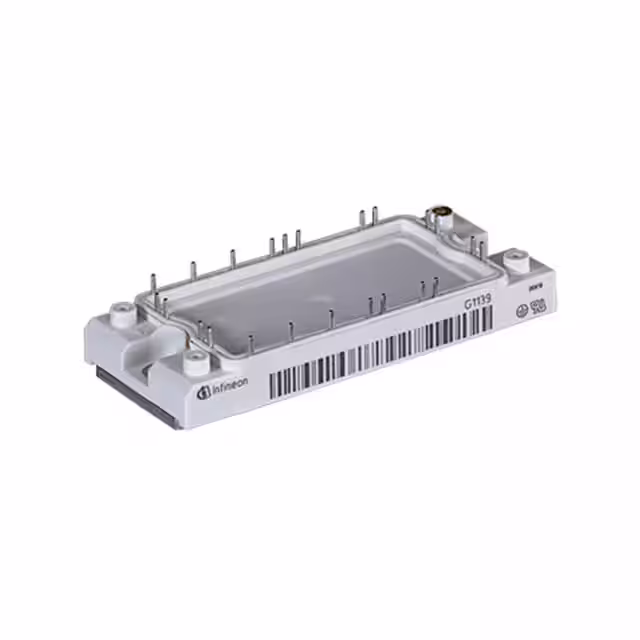

DDB6U104N16RRB37BPSA1LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies |
7 | 0.00 |
|
- |
- | Module | Tray | Active | - | Single Chopper | 1200 V | 50 A | - | 2.8V @ 15V, 50A | 1 mA | 3.3 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | AG-ECONO2B |
