IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP10R12W1T4PB11BPSA1IGBT MOD 1200V 20A 20MW Infineon Technologies |
29 | 0.00 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 20 A | - | 2.25V @ 15V, 10A | 1 mA | 600 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
DF80R07W1H5FPB50BPSA1LOW POWER EASY AG-EASY1B-2 Infineon Technologies |
28 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FB50R07W2E3C36BPSA1LOW POWER EASY Infineon Technologies |
15 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS50R12W2T4B11BOMA1IGBT MOD 1200V 83A 335W Infineon Technologies |
7 | 0.00 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 83 A | 335 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FB50R07W2E3B23BOMA1LOW POWER EASY AG-EASY2B-2 Infineon Technologies |
13 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS50R12W2T7PBPSA1LOW POWER EASY Infineon Technologies |
15 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS50R12W2T7PB11BPSA1LOW POWER EASY Infineon Technologies |
18 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP35R12N2T7BPSA2LOW POWER ECONO Infineon Technologies |
15 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 7 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|

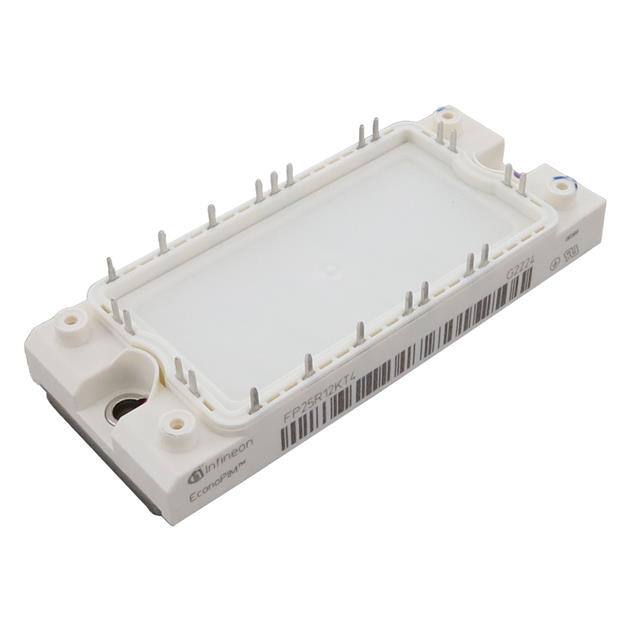

FP25R12KT4BPSA1LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies |
15 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
F475R07W2H3B11BPSA1LOW POWER EASY Infineon Technologies |
15 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
