IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

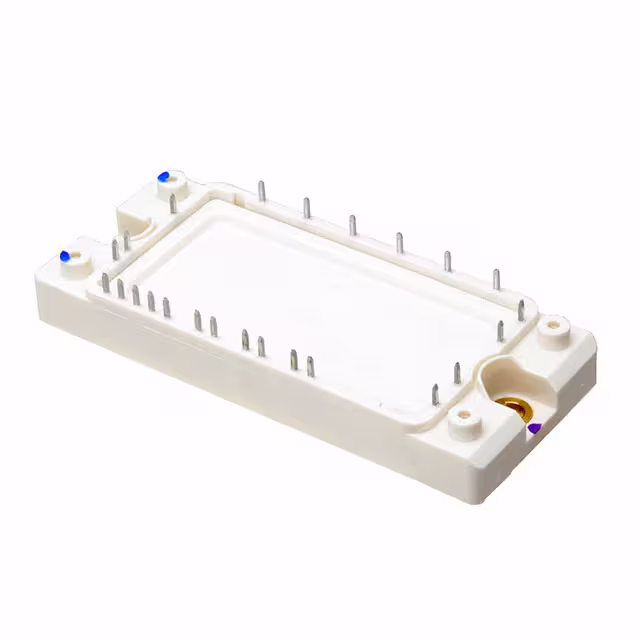

FP40R12KE3BOSA1IGBT MOD 1200V 55A 210W Infineon Technologies |
6,112 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 210 W | 2.3V @ 15V, 40A | 1 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FP50R12KT4B16BOSA1IGBT MOD 1200V 100A 280W Infineon Technologies |
2,148 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 280 W | 2.25V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP75R07N2E4B11BOSA1IGBT MODULE 650V 75A Infineon Technologies |
6,448 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 650 V | 75 A | - | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

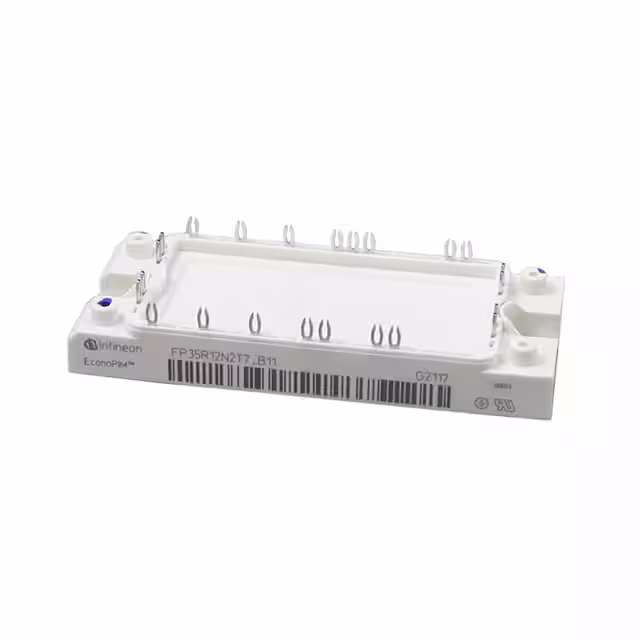

FP35R12N2T7B11BPSA1LOW POWER ECONO AG-ECONO2B-711 Infineon Technologies |
4 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 7 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
BSM100GAL120DLCKHOSA1IGBT MOD 1200V 205A 835W Infineon Technologies |
7,798 | 0.00 |
|
- |
- | Module | Bulk | Obsolete | - | Single Chopper | 1200 V | 205 A | 835 W | 2.6V @ 15V, 100A | 5 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
BSM15GP120BOSA1LOW POWER ECONO Infineon Technologies |
21 | 0.00 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM100GB120DN2B2HOSA1IGBT MODULE Infineon Technologies |
17 | 0.00 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

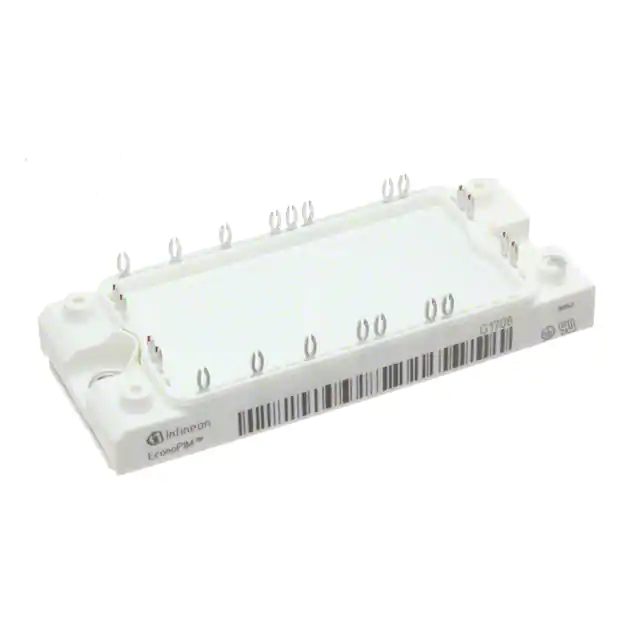

FP50R12KT4B11BOSA1IGBT MOD 1200V 50A 280W Infineon Technologies |
9,648 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FP50R12N2T7B11BPSA1LOW POWER ECONO AG-ECONO2B-711 Infineon Technologies |
7 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
BSM75GB120DN2_E3223C-SEIGBT MODULE Infineon Technologies |
23 | 0.00 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
