IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF450R06ME3BOSA1MEDIUM POWER ECONO Infineon Technologies |
2 | 0.00 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP75R17N3E4B11BPSA1IGBT MOD 1700V 150A 20MW Infineon Technologies |
2,056 | 0.00 |
|
- |
EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 150 A | - | 2.3V @ 15V, 75A | 1 mA | 6.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF225R17ME3BOSA1IGBT MOD 1700V 340A 1400W Infineon Technologies |
5,674 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Not For New Designs | Trench Field Stop | Half Bridge Inverter | 1700 V | 340 A | 1400 W | 2.45V @ 15V, 225A | 3 mA | 20.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|

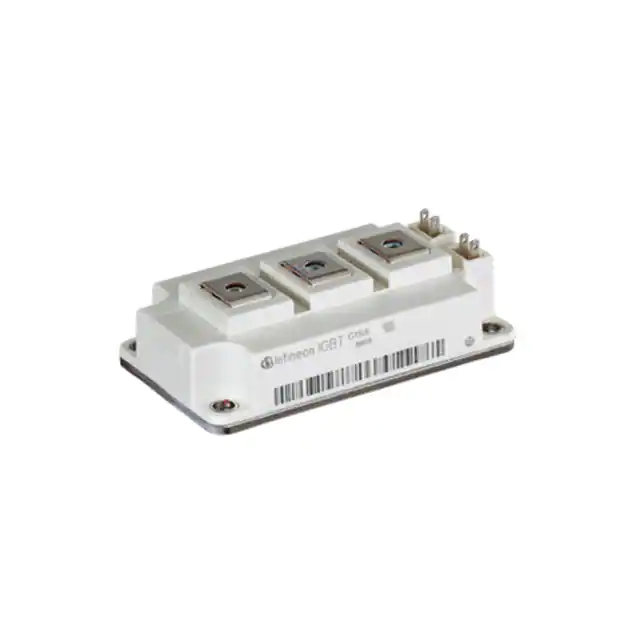

BYM300B170DN2HOSA1IGBT MOD 650V 40A 20MW Infineon Technologies |
4,202 | 0.00 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | 2 Independent | 650 V | 40 A | - | 1.55V @ 15V, 25A | 40 µA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF600R12ME4PB72BPSA1MEDIUM POWER ECONO Infineon Technologies |
9,989 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-5 |
|
FS150R07PE4BOSA1IGBT MOD 650V 150A 430W Infineon Technologies |
3,339 | 0.00 |
|
- |
EconoPACK™ 4 | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 650 V | 150 A | 430 W | 1.95V @ 15V, 150A | 1 mA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R17ME4PB11BOSA1IGBT MODULE 1700V 450A Infineon Technologies |
8,728 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1700 V | 450 A | - | 2.3V @ 15V, 450A | 3 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
IFS150B12N3E4B31BOSA1IGBT MOD 1200V 300A 750W Infineon Technologies |
7,624 | 0.00 |
|
- |
- | Module | Bulk | Active | - | Full Bridge | 1200 V | 300 A | 750 W | 2.15V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
F3L300R12MT4PB23BPSA1IGBT MOD 1200V 300A 20MW Infineon Technologies |
9,935 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Half Bridge | 1200 V | 300 A | - | 2.1V @ 15V, 300A | 1 mA | 19 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F3L300R12MT4PB22BPSA1IGBT MODULE MED POWER ECONO Infineon Technologies |
8,803 | 0.00 |
|
- |
EconoDUAL™ 3 | - | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - |
