IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IFF300B12N2E4PB11BPSA1IGBT MOD 1200V 600A 20MW Infineon Technologies |
9,670 | 0.00 |
|
- |
MIPAQ™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.1V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

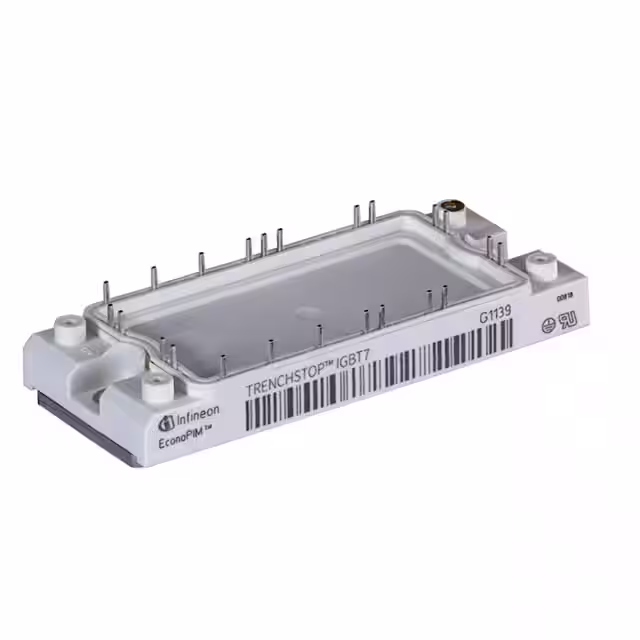

FP100R12N2T7B11BPSA1LOW POWER ECONO Infineon Technologies |
3,407 | 0.00 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | 1.5V @ 15V, 100A | 10 µA | 21.7 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
BSM35GD120DN2E3224BOSA1IGBT MOD 1200V 50A 280W Infineon Technologies |
7,659 | 0.00 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 1200 V | 50 A | 280 W | 3.2V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
|
IRGTI090U06IGBT MOD 600V 90A 298W INT-A-PAK Infineon Technologies |
6,805 | 0.00 |
|
- |
- | INT-A-PAK (3 + 4) | - | Obsolete | - | Half Bridge | 600 V | 90 A | 298 W | 3V @ 15V, 90A | 1 mA | 5.8 nF @ 30 V | Standard | No | - | Chassis Mount | INT-A-PAK |
|
|
FF225R12ME4B11BPSA2MEDIUM POWER ECONO AG-ECONOD-411 Infineon Technologies |
3,750 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 320 A | 1050 W | 2.15V @ 15V, 225A | 3 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
IRG5K400HF06BIGBT MOD 600V 670A POWIR 62 Infineon Technologies |
8,603 | 0.00 |
|
- |
- | POWIR® 62 Module | Box | Obsolete | - | Half Bridge | 600 V | 670 A | 1620 W | 2.1V @ 15V, 400A | 2 mA | 25 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 62 |
|
FP75R12KT4PBPSA1IGBT MOD 1200V 150A 20MW Infineon Technologies |
7,354 | 0.00 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF300R12KE4EHOSA1IGBT MOD 1200V 460A 1600W Infineon Technologies |
2,263 | 0.00 |
|
- |
C | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 460 A | 1600 W | 2.15V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF300R12KE4B2HOSA1IGBT MOD 1200V 460A 1600W Infineon Technologies |
3,119 | 0.00 |
|
- |
C | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 460 A | 1600 W | 2.15V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
IRG7T200CL12BIGBT MOD 1200V 390A POWIR 62 Infineon Technologies |
6,869 | 0.00 |
|
- |
- | POWIR® 62 Module | Box | Obsolete | - | Single | 1200 V | 390 A | 1060 W | 2.2V @ 15V, 200A | 2 mA | 22.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 62 |
