IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS100R17N3E4PB11BPSA1IGBT MODULE LOW POWER ECONO Infineon Technologies |
9,117 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF225R17ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-311 Infineon Technologies |
8,699 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 340 A | 1500 W | 2.3V @ 15V, 225A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
FP75R17N3E4B20BPSA1LOW POWER ECONO Infineon Technologies |
9,223 | 0.00 |
|
- |
EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 150 A | 555 W | 2.3V @ 15V, 75A | 1 mA | 6.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
IRG5U400SD12BIGBT MOD 1200V 600A POWIR 62 Infineon Technologies |
2,522 | 0.00 |
|
- |
- | POWIR® 62 Module | Box | Obsolete | - | Single | 1200 V | 600 A | 2500 W | 3.5V @ 15V, 400A | 5 mA | 45.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 62 |
|
|
FP75R12N3T4PB81BPSA1LOW POWER ECONO Infineon Technologies |
9,159 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

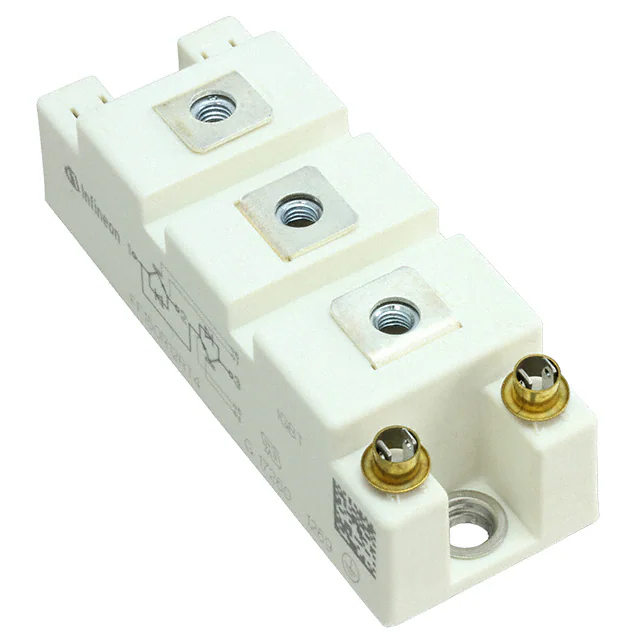

FF150R12RT4HOSA1IGBT MOD 1200V 150A 790W Infineon Technologies |
6,959 | 0.00 |
|
- |
C | Module | Tray | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 150 A | 790 W | 2.15V @ 15V, 150A | 1 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F417MR12W1M1HB70BPSA1LOW POWER EASY Infineon Technologies |
2,023 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

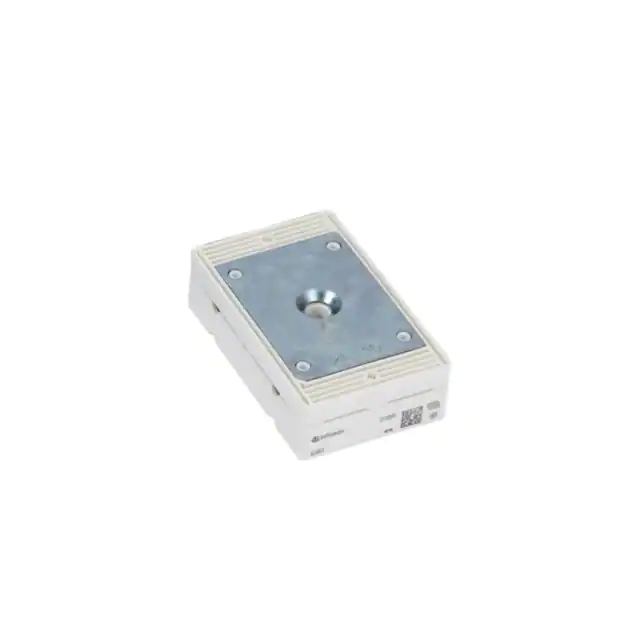

FP25R12U1T4BPSA1IGBT MOD 1200V 39A 190W Infineon Technologies |
5,123 | 0.00 |
|
- |
SmartPIM1 | Module | Tray | Last Time Buy | Trench Field Stop | Three Phase Inverter | 1200 V | 39 A | 190 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS75R07U1E4BPSA1IGBT MOD 650V 100A 275W Infineon Technologies |
3,157 | 0.00 |
|
- |
SmartPACK1 | Module | Tray | Last Time Buy | Trench Field Stop | Full Bridge | 650 V | 100 A | 275 W | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF225R17ME4PBPSA1IGBT MOD 1700V 450A 20MW Infineon Technologies |
5,607 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 450 A | - | 2.3V @ 15V, 225A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
