| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF450R12KE7PHPSA1MEDIUM POWER 62MM |
8,134 | 0.00 |
|
- |
C, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | - | 1.75V @ 15V, 450A | 100 µA | 70800 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-62MMHB |
|
MG12200D-BN2MMIGBT MODULE 1200V 290A 1050W D3 |
7,226 | 0.00 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 290 A | 1050 W | 1.7V @ 15V, 200A (Typ) | 1 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | D3 |
|
|
APTGL40X120T3GIGBT MODULE 1200V 65A 220W SP3 |
9,728 | 0.00 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
CM50MXA-24SIGBT MOD 1200V 50A 355W |
8,962 | 0.00 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter with Brake | 1200 V | 50 A | 355 W | 2.25V @ 15V, 50A | 1 mA | 5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
MG1250W-XBN2MMIGBT MOD 1200V 75A 260W |
5,626 | 0.00 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 75 A | 260 W | 1.7V @ 15V, 50A (Typ) | 1 mA | 3.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
APTGT50DH120TGIGBT MODULE 1200V 75A 277W SP4 |
7,245 | 0.00 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
MII150-12A4IGBT MOD 1200V 180A 760W Y3DCB |
9,348 | 0.00 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Half Bridge | 1200 V | 180 A | 760 W | 2.7V @ 15V, 100A | 7.5 mA | 6.6 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|
CM200EXS-34SAIGBT MOD 1700V 200A 2000W |
7,005 | 0.00 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Single | 1700 V | 200 A | 2000 W | 2.7V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
CM400HX-24AIGBT MOD 1200V 400A 2450W |
4,981 | 0.00 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 400 A | 2450 W | 2.6V @ 15V, 400A | 1 mA | 66 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MWI75-12T7TIGBT MODULE 1200V 110A 355W E2 |
9,890 | 0.00 |
|
- |
- | E2 | Box | Obsolete | Trench | Three Phase Inverter | 1200 V | 110 A | 355 W | 2.15V @ 15V, 75A | 4 mA | 5.35 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
APTGT35X120T3GIGBT MODULE 1200V 55A 208W SP3 |
8,510 | 0.00 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 208 W | 2.1V @ 15V, 35A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGLQ100H65T3GIGBT MODULE 650V 135A 350W SP3F |
2,877 | 0.00 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 135 A | 350 W | 2.3V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
|
FP100R12N3T4PB81BPSA1LOW POWER ECONO |
2,858 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|

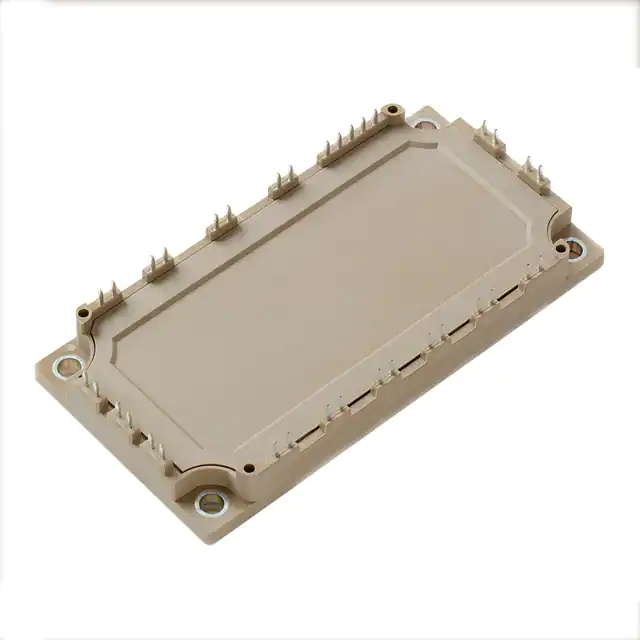

MG1275W-XN2MMIGBT MOD 1200V 105A 368W |
3,657 | 0.00 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 368 W | 1.7V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
CM75TU-12FIGBT MODULE 600V 75A 290W |
9,601 | 0.00 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 600 V | 75 A | 290 W | 2.2V @ 15V, 75A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FS150R17N3E4B11BOSA1IGBT MOD 1700V 150A 835W |
6,864 | 0.00 |
|
- |
EconoPACK™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 150 A | 835 W | 2.3V @ 15V, 150A | 1 mA | 13.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FD450R12KE4HPSA1MEDIUM POWER 62MM |
3,514 | 0.00 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM50GD120DLCBOSA1IGBT MOD 1200V 85A 350W |
2,980 | 0.00 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 1200 V | 85 A | 350 W | 2.6V @ 15V, 50A | 84 µA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
APTGT200A60T3AGIGBT MODULE 600V 290A 750W SP3 |
2,359 | 0.00 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 290 A | 750 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT30H170T3GIGBT MODULE 1700V 45A 210W SP3 |
8,855 | 0.00 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 45 A | 210 W | 2.4V @ 15V, 30A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
