Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55A1121-20-9/96-9CS2275CABLE 2CON 20AWG WHT SHLD 250' TE Connectivity Aerospace, Defense and Marine |
1,784 | 3.06 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.135" (3.43mm) | Braid | 250.0' (76.2m) | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
44A1121-24-2/3-9CABLE 2CON 24AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
4,128 | 1.47 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.118" (3.00mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
44A1121-22-6/9-9-MXCABLE 2CON 22AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
1,823 | 0.00 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.132" (3.35mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
44A1121-22-2/6-9-MXCABLE 2CON 22AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
2,542 | 1.63 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.132" (3.35mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
55A1821-22-9/96-9CS2275CABLE 2CON 22AWG WHT SHLD 250' TE Connectivity Aerospace, Defense and Marine |
3,637 | 1086.57 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.135" (3.43mm) | Braid | 250.0' (76.2m) | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
44A1121-22-0/9-9-MXCABLE 2CON 22AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
3,585 | 1.77 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.132" (3.35mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
55A6160-20-2/6-9-9CABLE 2CON 20AWG WHT SHLD 250' TE Connectivity Aerospace, Defense and Marine |
3,376 | 3.44 |
|
Datasheet |
55A6160 | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.172" (4.37mm) | Double Braid | 250.0' (76.2m) | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55A1122-22-9/96-9CS2275CABLE 2CON 22AWG WHT SHLD 250' TE Connectivity Aerospace, Defense and Marine |
3,068 | 0.00 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.119" (3.02mm) | Braid | 250.0' (76.2m) | White | - | - | 600 V | -65°C ~ 200°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
CTC-0039-20-9/5-9CABLE 2CON 20AWG WHT SHLD 100' TE Connectivity Aerospace, Defense and Marine |
4,957 | 8.29 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 20 AWG | 7/28 | Alumel, Chromel | Ethylene Tetrafluoroethylene (ETFE), Irradiated | 0.179" (4.55mm) | Braid | 100.0' (30.5m) | White | - | - | - | 150°C | Thermocouple | 0.0100" (0.254mm) | Polyvinylidene Fluoride (PVDF) | - |
|

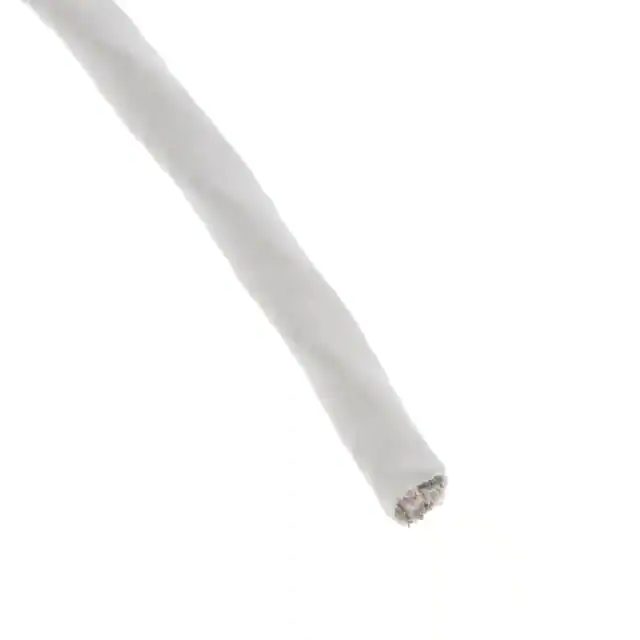

44AM1131-24-MST3-9CS2275CABLE 3CON 24AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
1,387 | 656.38 |
|
- |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.119" (3.02mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | 150°C | - | 0.0050" (0.127mm) | Polyvinylidene Fluoride (PVDF) | - |
