Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

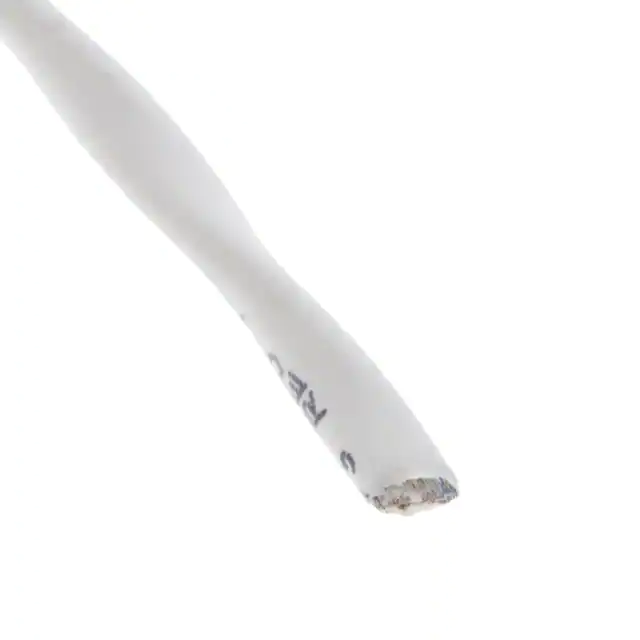

44AM1121-20-9/96-9CS2275CABLE 2CON 20AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
2,698 | 152.69 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 20 AWG | - | Copper, Tinned | Polyvinyl Fluoride (PVF) | 0.143" (3.63mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | -55°C ~ 150°C | - | 0.0050" (0.127mm) | - | - |
|
44AM1121-22-9/96-9CS2275CABLE 2CON 22AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
3,724 | 44.68 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.127" (3.23mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | 150°C | - | 0.0050" (0.127mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
CTC-0041-22CABLE 2COND 22AWG BLK SHLD 100' TE Connectivity Aerospace, Defense and Marine |
2,498 | 9.71 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | - | - | Ethylene Tetrafluoroethylene (ETFE) | 0.135" (3.43mm) | Braid | 100.0' (30.5m) | Black | - | - | - | 150°C | Thermocouple | - | - | - |
|
55A1121-22-0/9-9CABLE 2CON 22AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
1,985 | 2.26 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.119" (3.02mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55A8081-18-9CABLE 2COND 18AWG WHITE 100' TE Connectivity Aerospace, Defense and Marine |
3,747 | 10.48 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 18 AWG | 19/34 | Alumel, Chromel | Polymer | 0.158" (4.01mm) | - | 100.0' (30.5m) | White | - | Flame Retardant | - | 150°C | Thermocouple | 0.0010" (0.025mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
44AM1131-22-MST3-9CS2275CABLE 3CON 22AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
3,962 | 796.20 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.135" (3.43mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | 150°C | - | 0.0050" (0.127mm) | Polyvinylidene Fluoride (PVDF) | - |
|
44AM1121-18-9/96-9CS2275CABLE 2CON 18AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
3,752 | 184.01 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 18 AWG | 19/30 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.163" (4.14mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | 150°C | - | 0.0050" (0.127mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
44AM1121-16-9/96-9CS2275CABLE 2CON 16AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
2,452 | 812.91 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.179" (4.55mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | 150°C | - | 0.0060" (0.152mm) | Polyvinylidene Fluoride (PVDF) | - |
|
55A1121-24-9/96-9CS2275CABLE 2CON 24AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
2,615 | 831.73 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.107" (2.72mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|

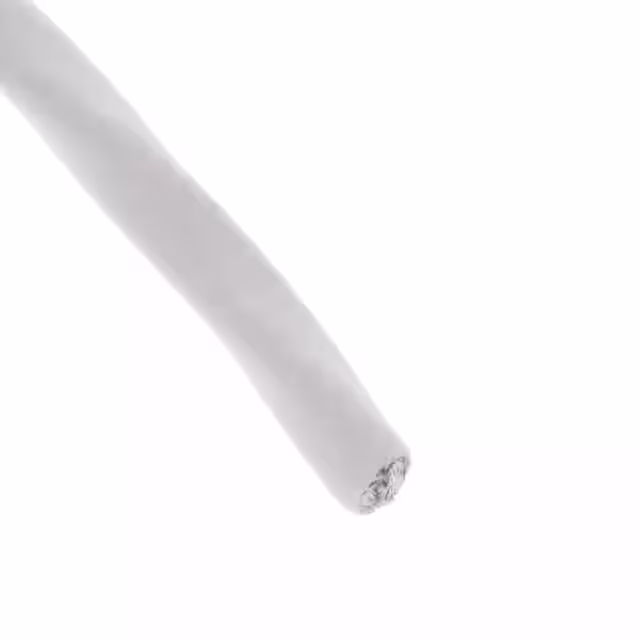

44AM1131-20-MST3-9CS2275CABLE 3CON 20AWG WHT SHLD 500' TE Connectivity Aerospace, Defense and Marine |
4,764 | 98.69 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 3 | 20 AWG | 19/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.152" (3.86mm) | Braid | 500.0' (152.4m) | White | - | - | 600 V | 150°C | - | 0.0050" (0.127mm) | Polyvinylidene Fluoride (PVDF) | - |
