Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

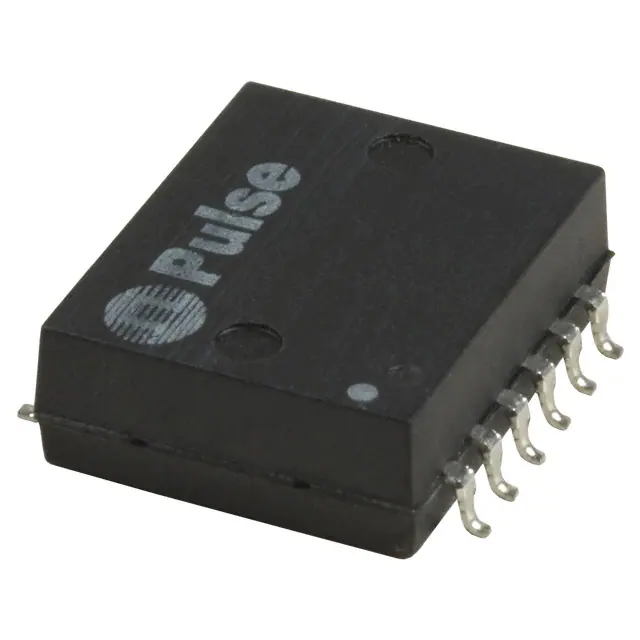

H1112NLTXFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics |
3,235 | 5.62 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.202" (5.13mm) | 0°C ~ 70°C | - | - |
|
|
H1112NLMODULE TRANSFMR SNGL LAN 12P SMD Pulse Electronics |
961 | 5.62 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.202" (5.13mm) | 0°C ~ 70°C | - | - |
|
HX5004ENLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
600 | 7.60 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
H5007ENLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
590 | 5.23 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

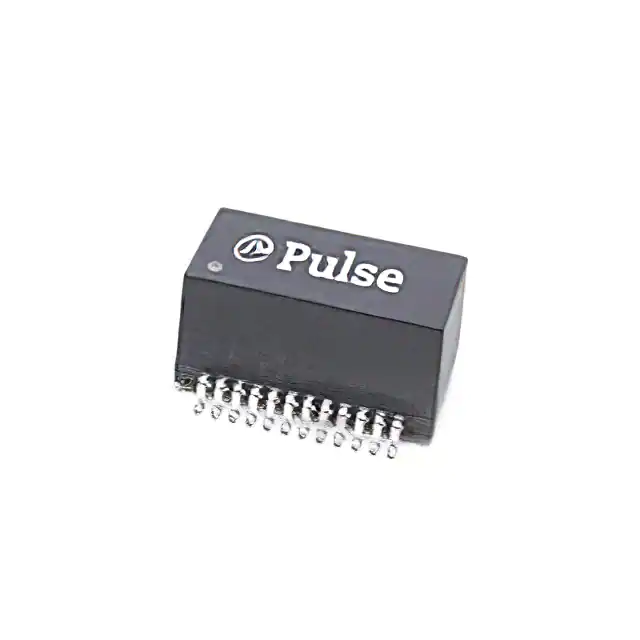

HX5164NLTRANS MOD 1G 70W POE SMD Pulse Electronics |
199 | 5.72 |
|
Datasheet |
HX5164NL | Tube | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | - | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

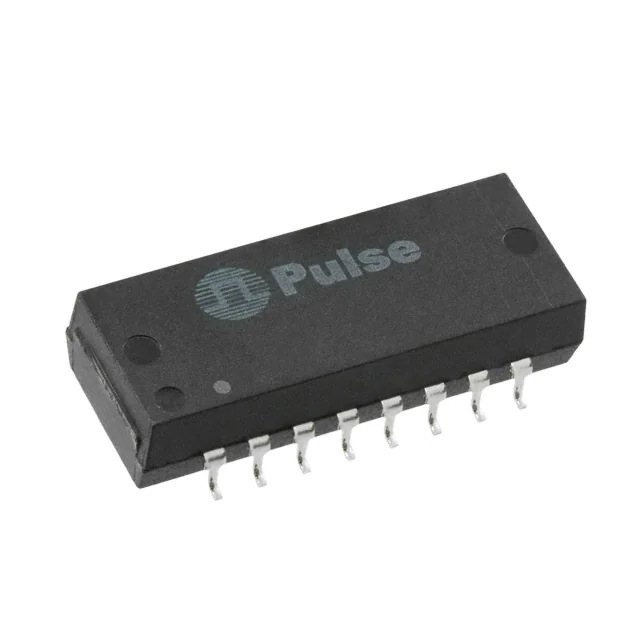

H1012NLTXFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics |
675 | 6.01 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
H1012NLMODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics |
418 | 6.01 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
PA1836NLPULSE XFMR 4.5UH Pulse Electronics |
451 | 5.81 |
|
Datasheet |
- | Tray | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
H6096NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
3,146 | 8.29 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|

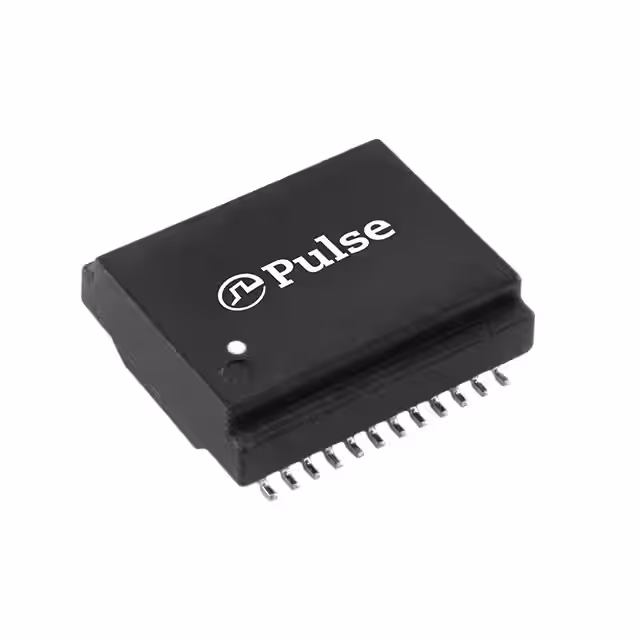

HX5062FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
319 | 8.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
