Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

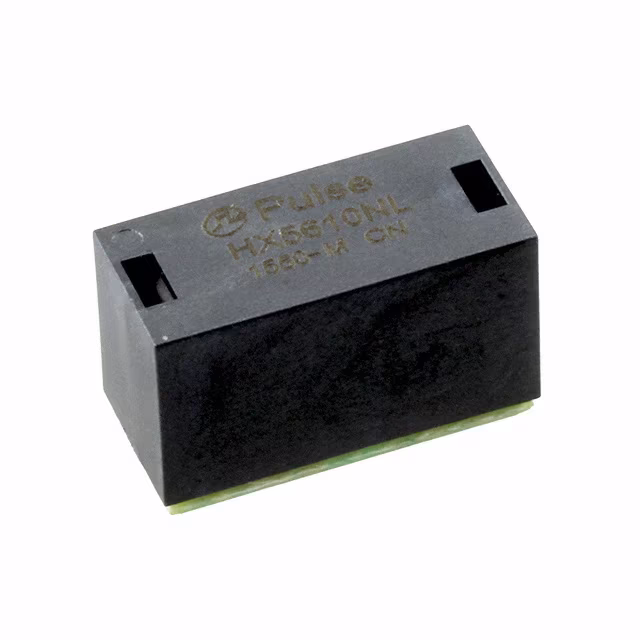

HX5610NLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
559 | 10.33 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|

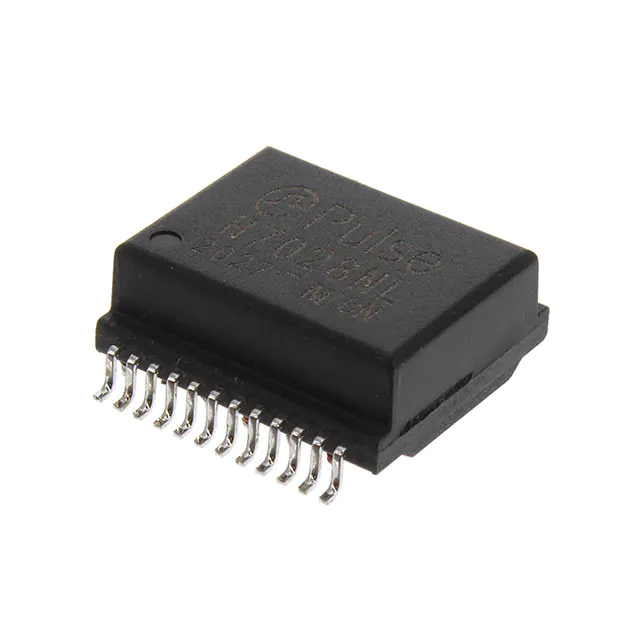

H7028NL10GBASE-T DISCRETE 4CH BCM PHY Pulse Electronics |
131 | 8.65 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 120µH | - | 1:1 | - | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

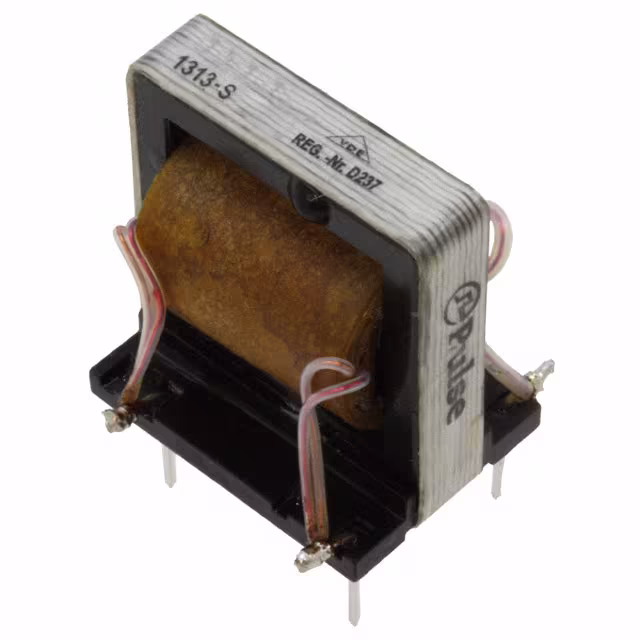

PE-63385NLPULSE XFMR 1:1 1.5MH Pulse Electronics |
914 | 8.77 |
|
Datasheet |
- | Tray | Active | - | 1.5mH | 200VµS | 1:1 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|
HX6096NLPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
2,461 | 8.93 |
|
Datasheet |
- | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|

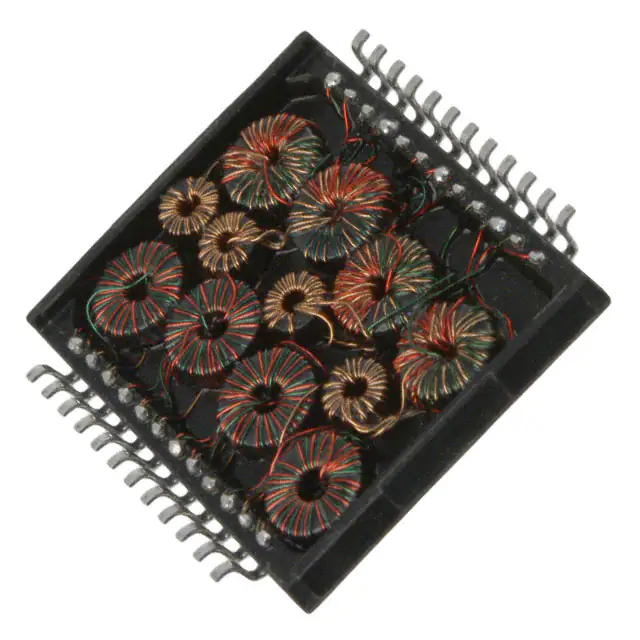

H5019NLTTRANSFORMER MODULE GIGABIT 1PORT Pulse Electronics |
4,604 | 9.37 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.780" L x 0.655" W (19.81mm x 16.64mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
HX6062NLPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
123 | 9.33 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
HX1148NLMODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics |
523 | 9.13 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

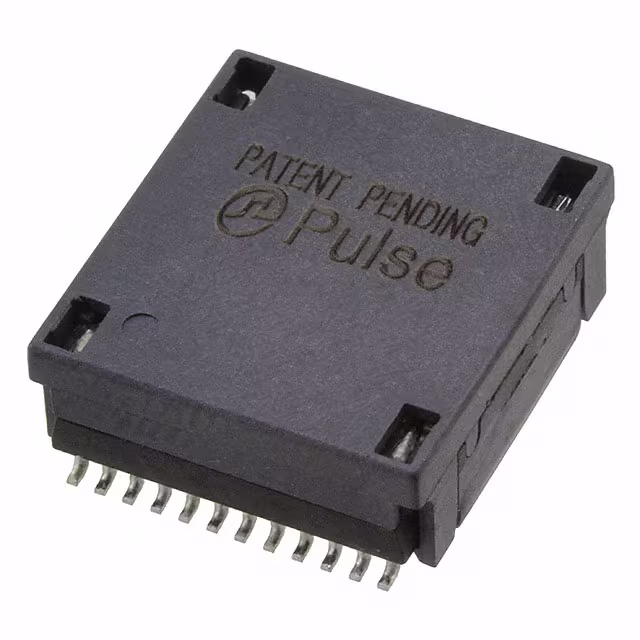

H7008FNLTTRANSFORMER MODULE 10GBASE-T Pulse Electronics |
3,021 | 9.90 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.591" L x 0.539" W (15.00mm x 13.70mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|

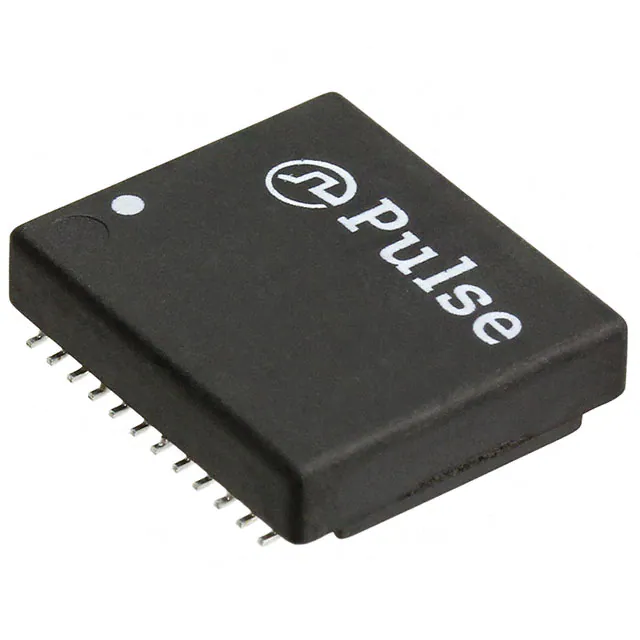

H5015FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,782 | 9.59 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.695" L x 0.596" W (17.66mm x 15.14mm) | 0.180" (4.57mm) | 0°C ~ 70°C | - | - |
|

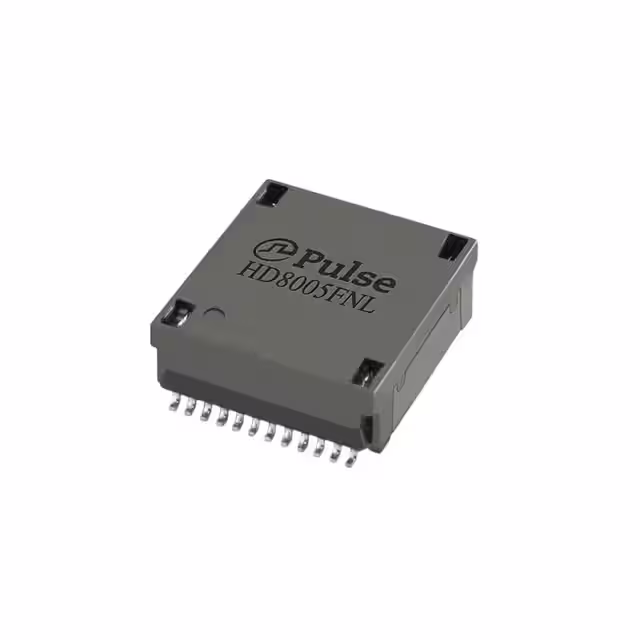

HD8005FNLTTRANSFORMER HDBASE-T 57W Pulse Electronics |
900 | 10.61 |
|
Datasheet |
- | Tape & Reel (TR) | Active | HDBase-T | 100µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
