Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9572.233NLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics |
14,367 | 1.77 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 1.8mH | 56.5VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
PH9572.211NLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics |
13,154 | 1.77 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 4mH | 84.7VµS | 2:1:1 | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|

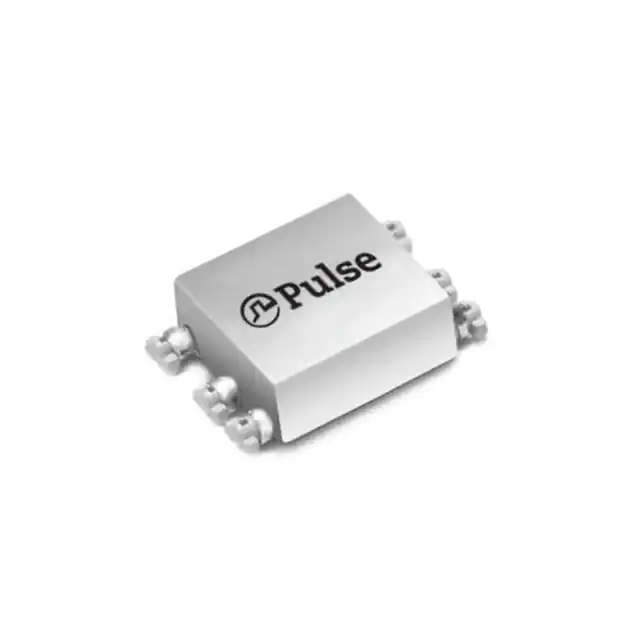

PA3493NLTPULSE XFMR 1.25:1 656UH Pulse Electronics |
3,586 | 3.01 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 656µH | 23VµS | 1.25:1 | Surface Mount | 0.430" L x 0.380" W (10.92mm x 9.65mm) | 0.105" (2.67mm) | -40°C ~ 130°C | - | - |
|

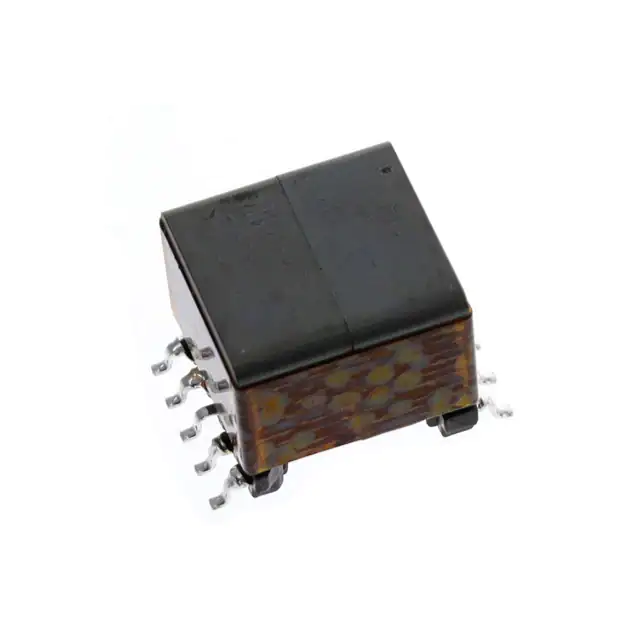

PA2649NLTPULSE XFMR 100.5UH Pulse Electronics |
1,360 | 4.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 100.5µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|

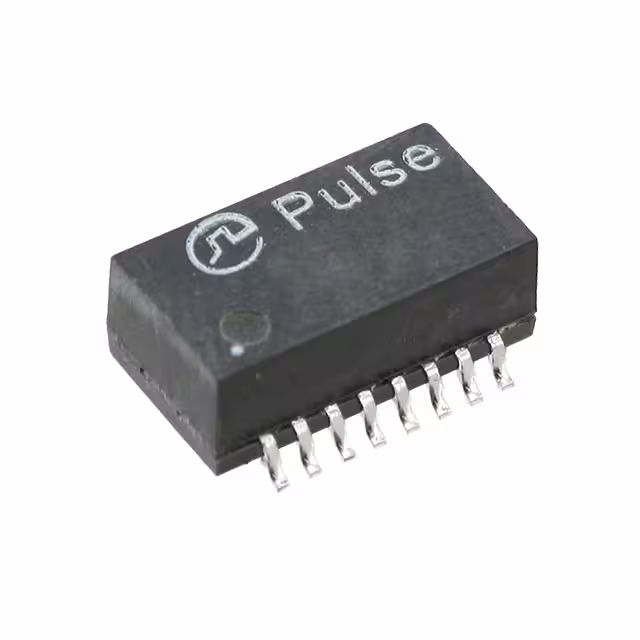

PE-65745NLTXFRMR LAN ISOL 1CT:1.414CT 10B-T Pulse Electronics |
2,759 | 4.75 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
PE-65728NLTRANSFMR AUI ETHERNET LAN 16SOIC Pulse Electronics |
483 | 5.52 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
H1260NLTXFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics |
1,430 | 5.38 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
PA2649NLTRANSFMR 33-57VIN 12VOUT 2.5ASMD Pulse Electronics |
3,852 | 4.71 |
|
Datasheet |
- | Tray | Active | - | 100.5µH | - | - | Surface Mount | 0.690" L x 0.529" W (17.53mm x 13.44mm) | 12.45mm | -40°C ~ 130°C | - | - |
|
|
HM1238NLXFMR CMC MODULE AECQ BATT MNGT Pulse Electronics |
667 | 2.57 |
|
Datasheet |
- | Tube | Active | - | 300µH | - | 1:1 | Surface Mount | 0.413" L x 0.330" W (10.50mm x 8.38mm) | 0.167" (4.25mm) | - | - | - |
|
|
PH9572.122ANLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics |
11,803 | 2.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 1mH | 42.4VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
