Single Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NSR15304NXT5GDIODE SCHOTTKY 30V 1.5A 2DSN |
2,984 | 0.00 |
|
Datasheet |
- | 0402 (1006 Metric) | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 1.5A | 580 mV @ 1.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 80 µA @ 30 V | 60pF @ 0V, 1MHz | - | - | Surface Mount | 2-DSN (1x0.6), (0402) | 150°C |
|
SB10-03A3DIODE SCHOTTKY 30V 1A DO41 |
9,302 | 0.00 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Obsolete | Schottky | 30 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 mA @ 30 V | - | - | - | Through Hole | DO-41 | 125°C (Max) |
|
MMBD6050-HE3-08DIODE GEN PURP 70V 200MA SOT23-3 |
3,000 | 0.00 |
|
- |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Standard | 70 V | 200mA | 1.1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | - | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 | 150°C (Max) |
|
|
A15BDIODE GEN PURP 200V 5A AXIAL |
2,616 | 0.00 |
|
Datasheet |
- | Axial | Bulk | Active | Standard | 200 V | 5A | 1.1 V @ 5 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 5 µA @ 200 V | - | - | - | Through Hole | Axial | -65°C ~ 175°C |
|
1N5819SCHOTTKY DIODE 1A 20V DO-41 |
2,290 | 0.00 |
|
Datasheet |
* | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | 110pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -50°C ~ 125°C |
|
|
1N5817SCHOTTKY DIODE 1A 20V DO-41 |
2,290 | 0.00 |
|
Datasheet |
* | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | Schottky | 20 V | 1A | 450 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | 110pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -50°C ~ 125°C |
|
SS22T3DIODE SCHOTTKY 20V 2A SMB |
3,561 | 0.00 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Schottky | 20 V | 2A | 500 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 400 µA @ 40 V | - | - | - | Surface Mount | SMB | -55°C ~ 150°C |
|
|
1N4001DIODE GEN PURP 50V 1A DO41 |
5,000 | 0.00 |
|
Datasheet |
DO-41 | DO-41, Axial | Tape & Box (TB) | Active | Standard | 50 V | 1A | 1.1 V @ 1 A | - | - | - | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-41 | -55°C ~ 150°C |
|

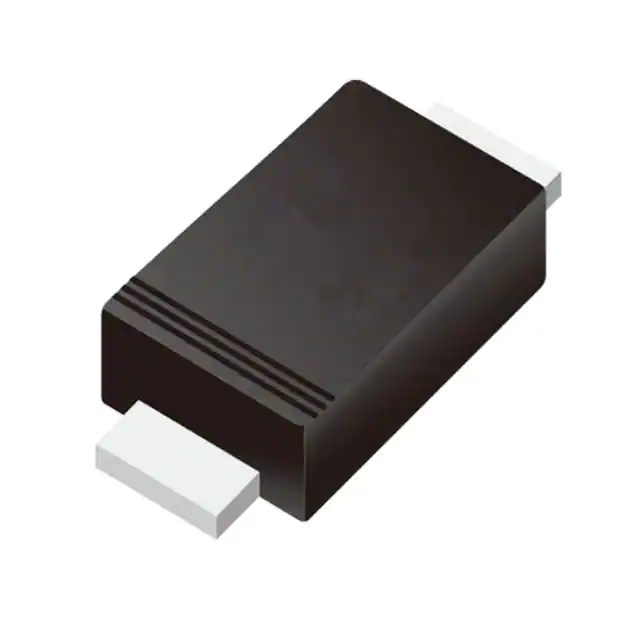

SS36FDIODE SCHOTTKY 60V 3A SMAF |
3,000 | 0.00 |
|
Datasheet |
SS3 | DO-221AC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 60 V | 3A | 700 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | 180pF @ 4V, 1MHz | - | - | Surface Mount | SMAF | -55°C ~ 150°C |
|
HSU83-91TRFDIODE FOR HIGH VOLTAGE SWITCHING |
534,000 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS0503EC-TR-HDIODE SCHOTTKY 30V 500MA 2ECSP |
3,898 | 0.00 |
|
Datasheet |
- | 2-UDFN | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 500mA | 560 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 100 µA @ 15 V | 6pF @ 10V, 1MHz | - | - | Surface Mount | 2-ECSP1008 | -55°C ~ 125°C |
|
SB2003M-TL-EDIODE SCHOTTKY 30V 2A 6MCPH |
100,684 | 0.00 |
|
Datasheet |
- | 6-SMD, Flat Leads | Bulk | Obsolete | Schottky | 30 V | 2A | 500 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 30 µA @ 15 V | 75pF @ 10V, 1MHz | - | - | Surface Mount | 6-MCPH | -55°C ~ 125°C |
|
|
HSB83JTLDIODE FOR HIGH VOLTAGE SWITCHING |
93,000 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSB83TR-EDIODE FOR HIGH VOLTAGE SWITCHING |
75,000 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMSD301T1DIODE SCHOTTKY 225MW 30V SOD123 |
6,808 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HSM2694TR-EPLANAR DIODE FOR TUNER SWITCHING |
40,000 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1N4933GPDIODE GEN PURP 50V 1A DO204AL |
39,102 | 0.00 |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Obsolete | Standard | 50 V | 1A | 1.2 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 5 µA @ 50 V | 12pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 175°C |
|
|
HSB83TL-EDIODE FOR HIGH VOLTAGE SWITCHING |
30,000 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1SS5004WSDIODE GP 400V 0.225A SOD323F |
12,000 | 0.00 |
|
Datasheet |
- | SC-90, SOD-323F | Bulk | Active | Standard | 400 V | 225mA | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 100 nA @ 240 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | SOD-323F | -55°C ~ 150°C |
|
DSB15TGRECTIFIER DIODE, 1.5A, 600V |
7,770 | 0.00 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
