RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT1204F002R0433ARF ANT 433MHZ CHIP SOLDER SMD Pulse Electronics |
14,593 | 1.59 |
|
Datasheet |
1204 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 419MHz ~ 447MHz | Chip | 1 | - | -6.5dB | 0.79dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|

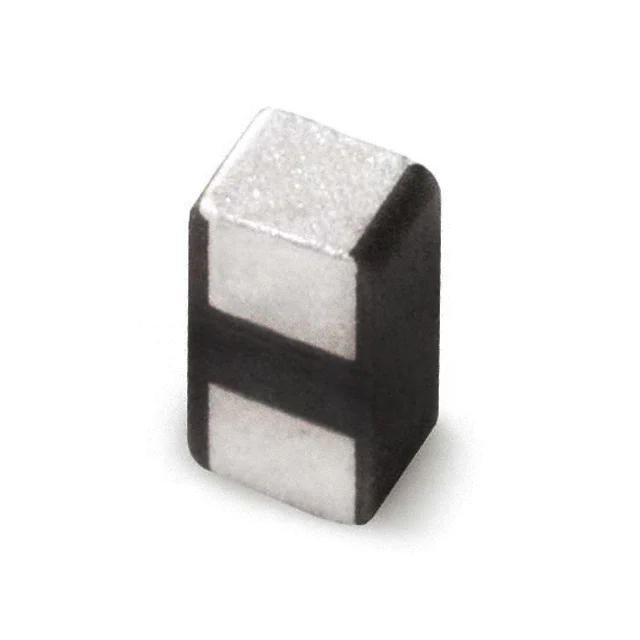

W3008RF ANT 2.4GHZ CHIP SOLDER SMD Pulse Electronics |
10,197 | 1.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | - | -8dB | 1.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth |
|
|
W3008CRF ANT 2.4GHZ CHIP SOLDER SMD Pulse Electronics |
6,605 | 1.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | - | -8dB | 1.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, WLAN, Zigbee™ |
|

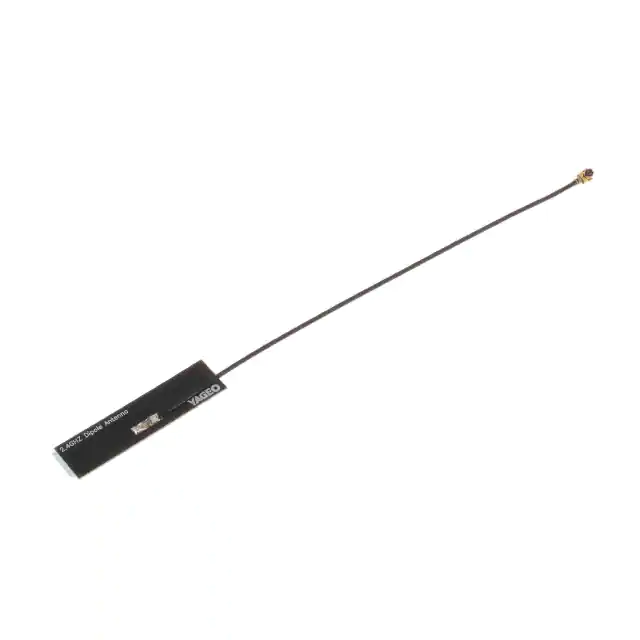

ANTX100P011B24003RF ANT 2.45GHZ PCB TRACE CAB ADH Pulse Electronics |
3,169 | 1.63 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 2.2dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

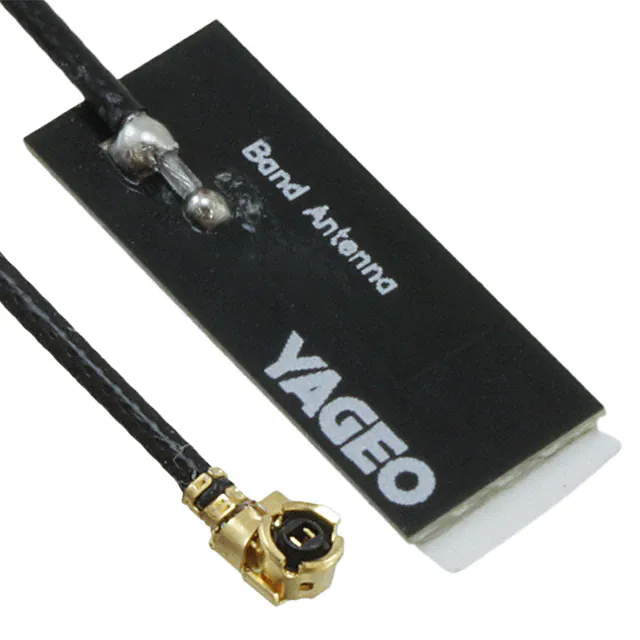

ANTX200P001B24003RF ANT 2.4GHZ FLAT PATCH IPEX Pulse Electronics |
2,569 | 1.72 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 2 | - | 4.4dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, WLAN, Zigbee™ |
|

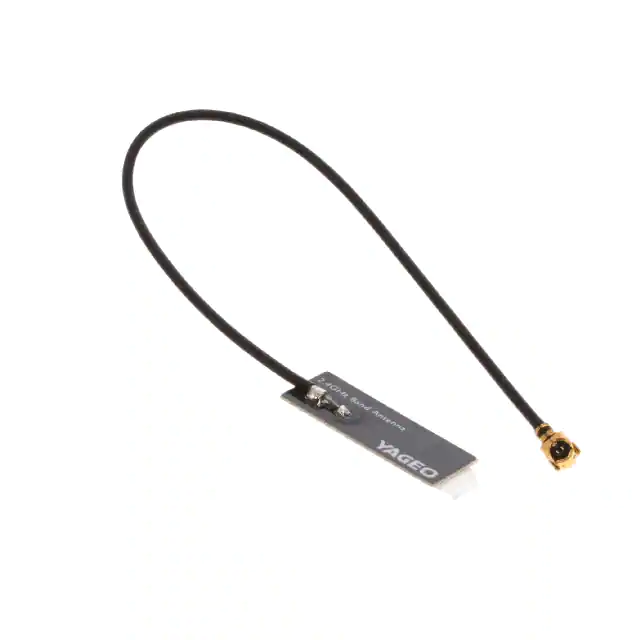

ANTX100P001B24003RF ANT 2.45GHZ PCB TRACE CAB ADH Pulse Electronics |
4,739 | 1.75 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 4.4dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W3113RF ANT 900MHZ HELICAL SOLDER SMD Pulse Electronics |
756 | 1.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Helical | 1 | - | -10dB | 0.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.098" (2.50mm) | - |
|

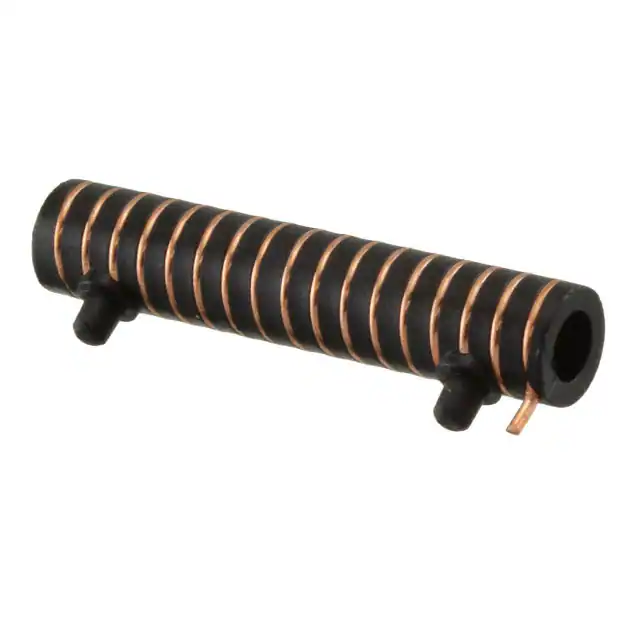

W3126RF ANT 315MHZ HELICAL SOLDER SMD Pulse Electronics |
2,403 | 1.75 |
|
Datasheet |
- | Tray | Active | - | UHF (300MHz ~ 1GHz) | 315MHz | - | Helical | 1 | - | -10dB | -5dBi | - | - | Solder | - | - | - | Surface Mount | 0.276" (7.00mm) | - |
|

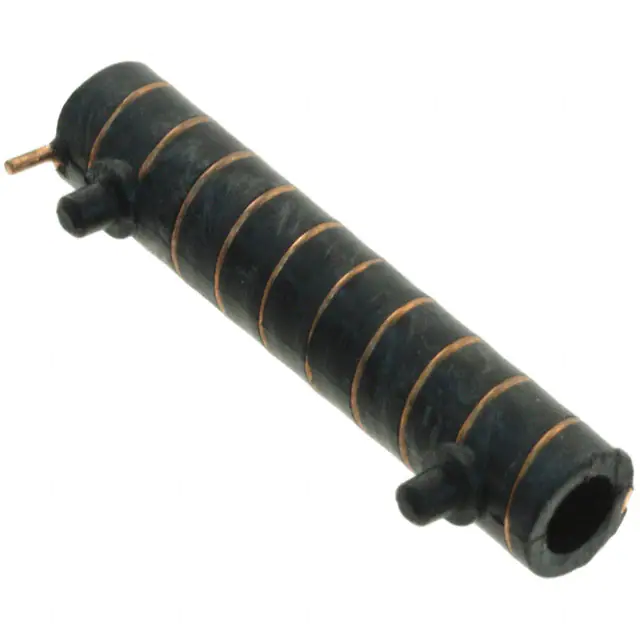

W3127RF ANT 433MHZ HELICAL SLD TH Pulse Electronics |
1,804 | 1.75 |
|
Datasheet |
- | Tray | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 433MHz ~ 435MHz | Helical | 1 | - | -15dB | -2.9dBi | - | - | Solder | - | - | - | Through Hole | 0.276" (7.00mm) | - |
|

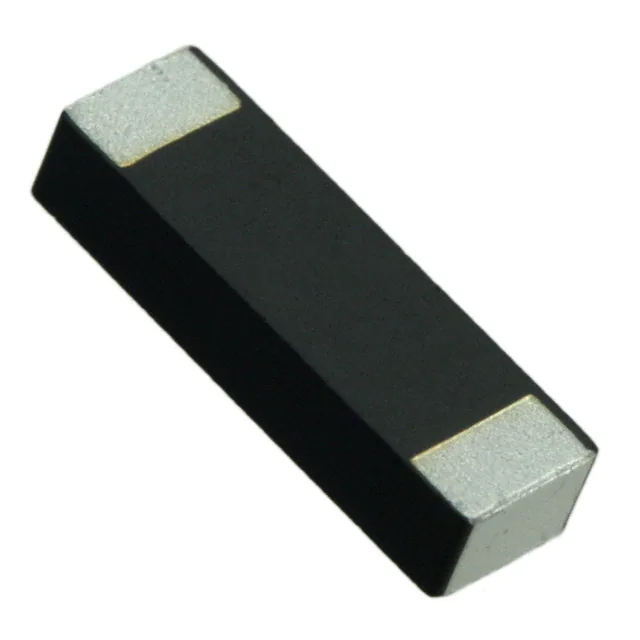

W3070RF ANT 900MHZ/1.8GHZ CHIP SLD Pulse Electronics |
5,552 | 2.78 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Chip | 2 | - | -3.8dB, -4dB | 1.5dBi, 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GSM |
