RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

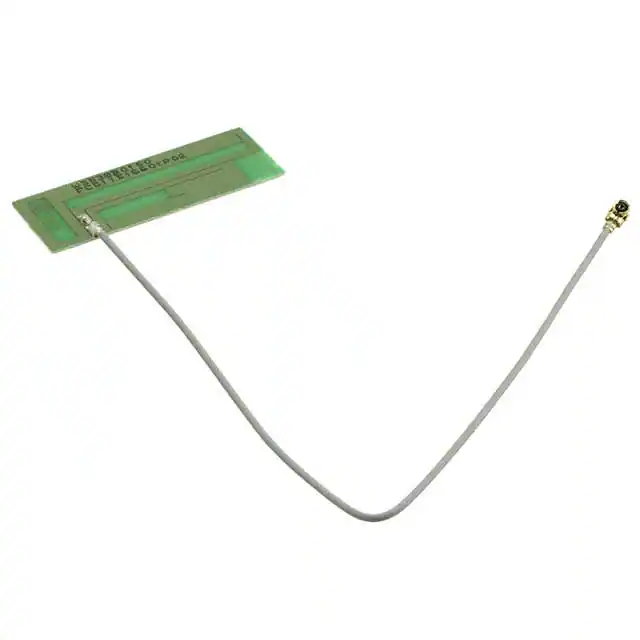

W3538B0150RF ANT 850/900MHZ PCB TRAC 150MM Pulse Electronics |
5,569 | 3.37 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | -3dB, -6dB | 1.5dBi, 4.5dBi, 3.9dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|

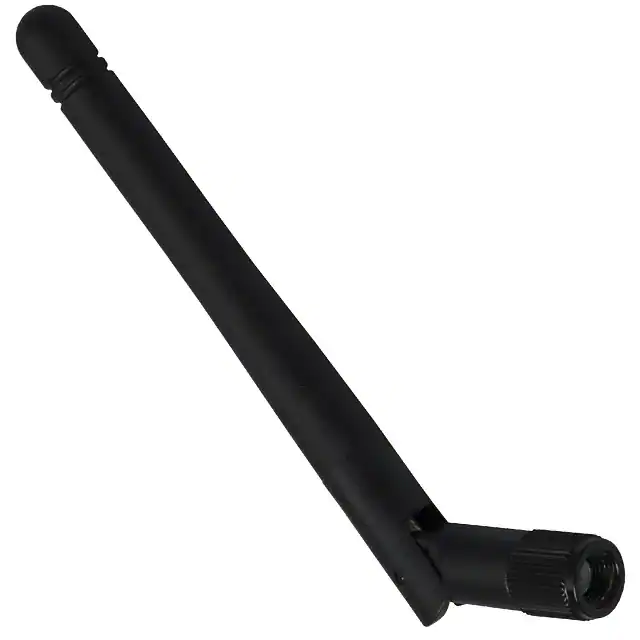

W1030RF ANT 2.4GHZ WHP TILT RP-SMA 3" Pulse Electronics |
4,067 | 3.96 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.264" (108.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W3538B0045STAND ALONE PWB ANTENNA Pulse Electronics |
578 | 3.96 |
|
Datasheet |
Internal PCB Antenna | Box | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99MHz, 1.92GHz ~ 2.17GHz | PCB Trace | 5 | - | -3dB, -5dB | 0.78dBi, 1.73dBi, 1.84dBi | - | Cable - 45mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.028" (0.70mm) | GPS, WCDMA |
|

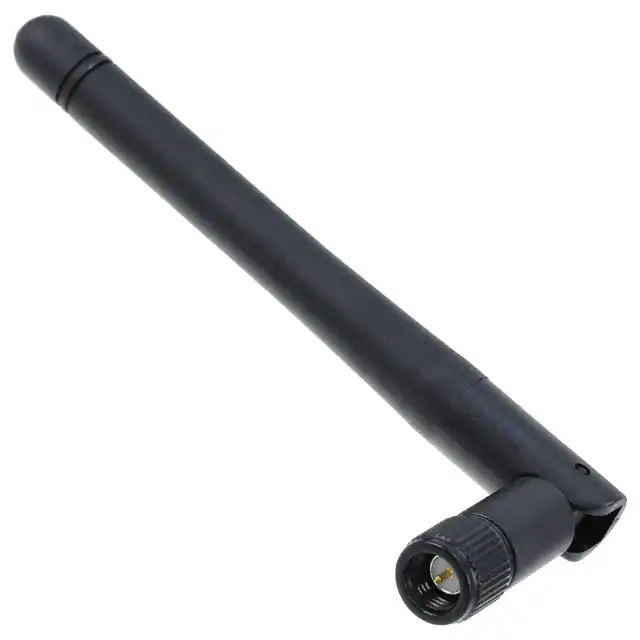

W1010RF ANT 2.4GHZ WHIP TILT SMA 3" Pulse Electronics |
544 | 4.27 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.274" (108.55mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

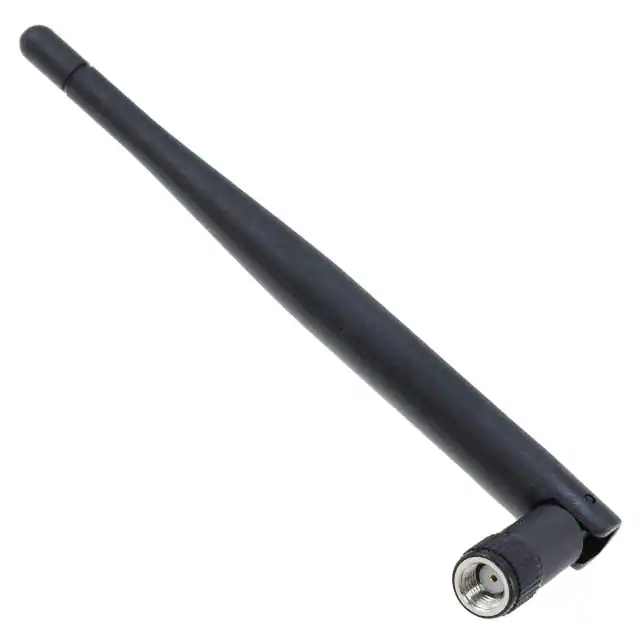

W1027RF ANT 2.4GHZ WHP TILT RP-SMA 5" Pulse Electronics |
1,319 | 4.92 |
|
Datasheet |
- | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.9 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.913" (150.20mm) | WLAN, Zigbee™ |
|

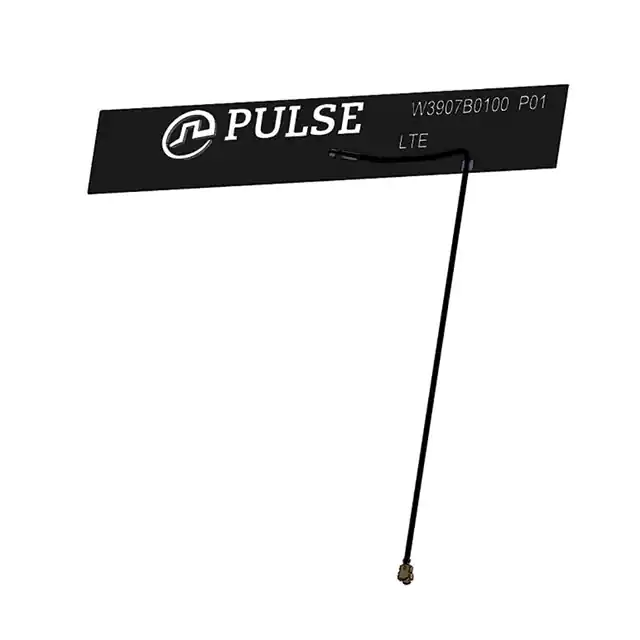

W3907B0100RF ANT 2.15GHZ FLAT PATCH CAB Pulse Electronics |
1,685 | 4.97 |
|
Datasheet |
GEMINI | Bulk | Active | Cellular | Wide Band | 2.15GHz | 698MHz ~ 3.6GHz | Flat Patch | 6 | - | -7.5dB | 4.2dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | LTE |
|

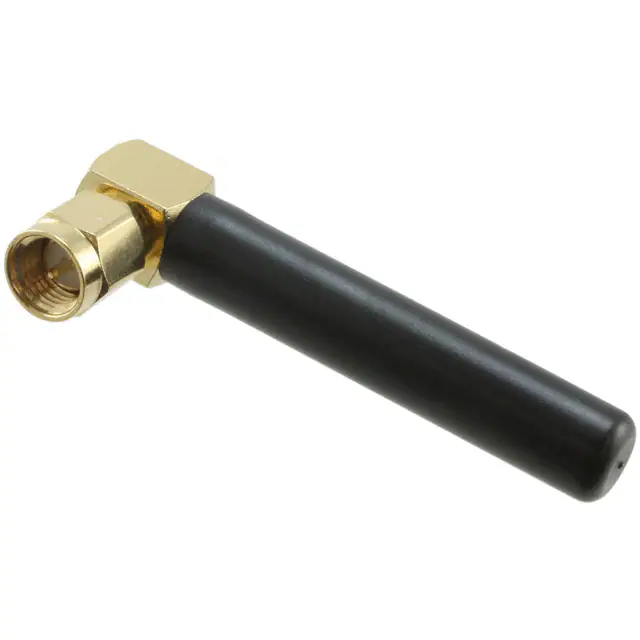

W1900RF ANT 850MHZ/900MHZ WHIP RA Pulse Electronics |
797 | 6.46 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.949" (49.50mm) | GSM, WCDMA |
|

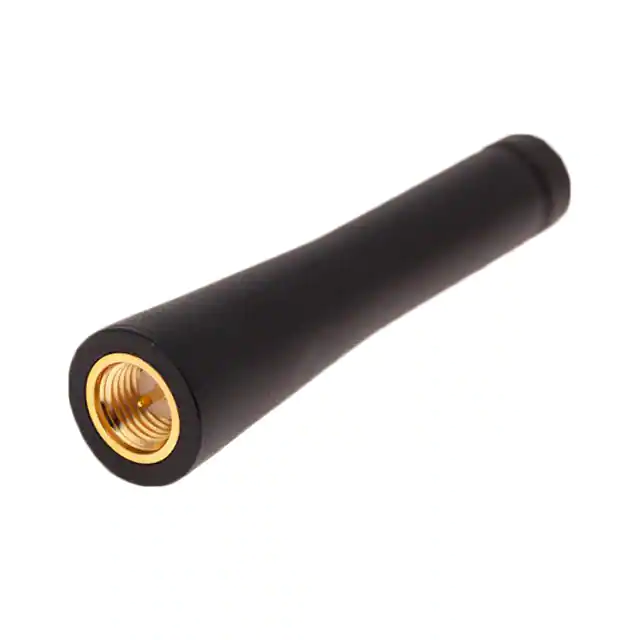

W1696-MANT EXT 0.617-3.8GHZ SMA Pulse Electronics |
1,407 | 6.80 |
|
Datasheet |
Stubby Antenna | Tray | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Whip, Straight | 3 | - | -5dB, -4dB | -0.5dBi, 1dBi, 0dBi | 5 W | - | SMA | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | LTE |
|

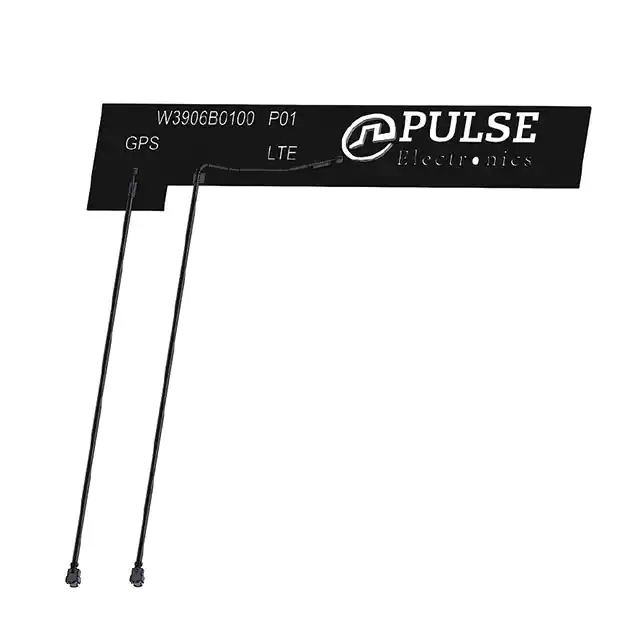

W3906B0100RF ANT 2.15GHZ FLAT PATCH CAB Pulse Electronics |
1,435 | 6.38 |
|
Datasheet |
GEMINI | Bag | Active | Cellular | Wide Band | 2.15GHz | 698MHz ~ 3.6GHz | Flat Patch | 1 | - | -10dB | 4dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | LTE |
|

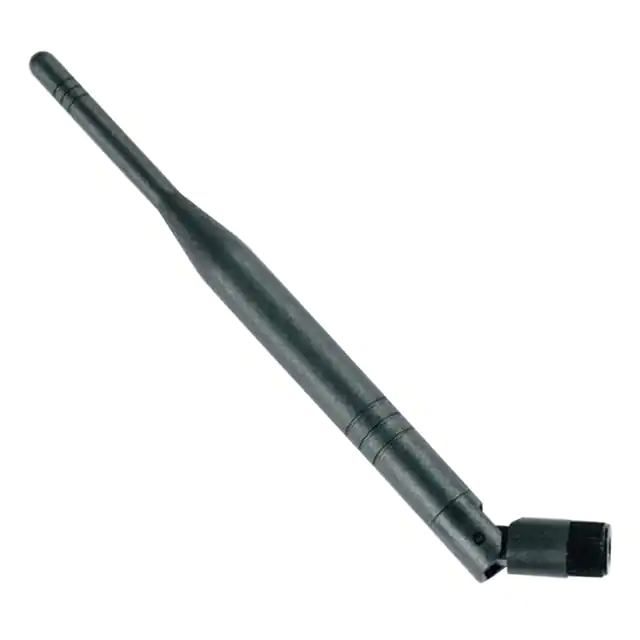

W1063RF ANT 898MHZ WHIP TILT 6.6" Pulse Electronics |
2,046 | 8.02 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 898MHz | 868MHz ~ 928MHz | Whip, Tilt | 1 | 2.5 | - | 3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.673" (194.90mm) | WLAN |
