RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

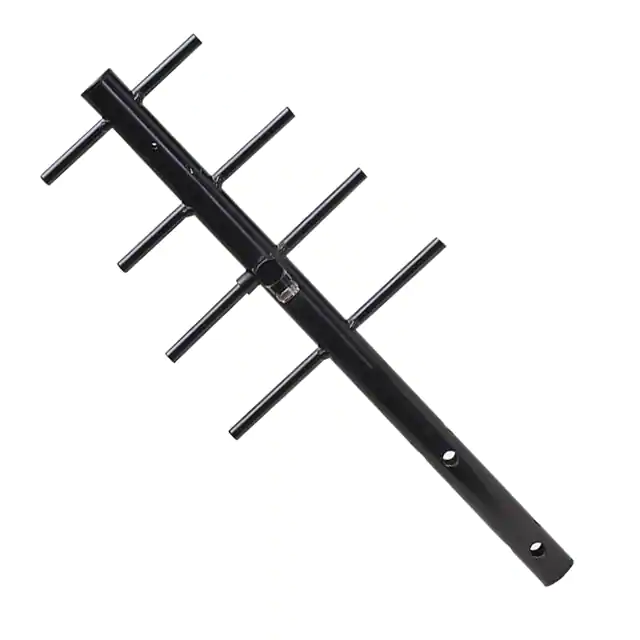

YA6900WANT YAGI 890-960MHZ 8DBI N-FEM Pulse Electronics |
2,012 | 122.49 |
|
Datasheet |
Yagi | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 890MHz ~ 960MHz | Directional Antenna | 1 | 2 | - | 8.8dBi | 300 W | - | N Type Female | - | - | - | Pole Clamp | 17.520" (445.00mm) | General Purpose |
|
ARM42111DMRF ANT 829MHZ/1.582GHZ MOD PANEL Pulse Electronics |
4,704 | 138.90 |
|
Datasheet |
ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 4 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|

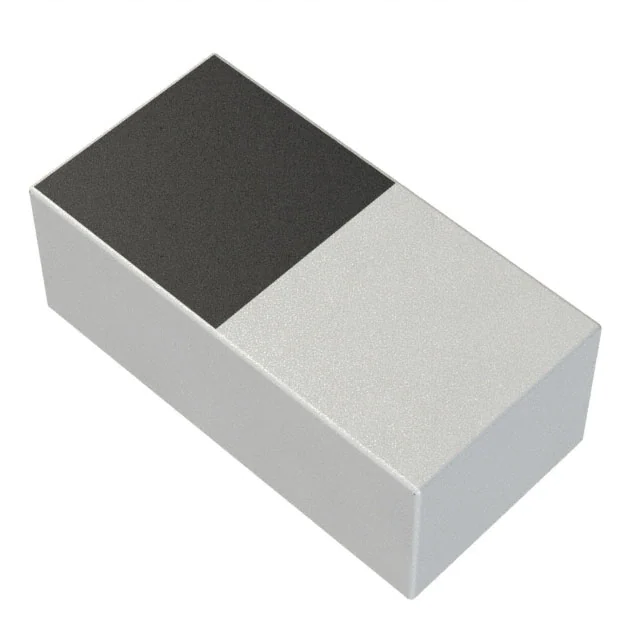

ANT1005LL14R2400ARF ANT 2.442GHZ CHIP SOLDER SMD Pulse Electronics |
40,360 | 0.43 |
|
Datasheet |
1005 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 3 | - | 2.21dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.015" (0.37mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

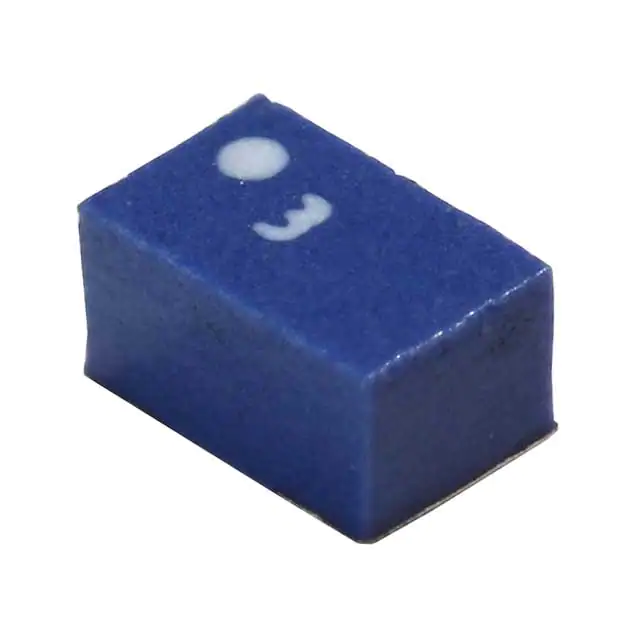

ANT2012LL13R2400ARF ANT 2.4GHZ CHIP SOLDER SMD Pulse Electronics |
17,098 | 0.67 |
|
Datasheet |
2012 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.408GHz ~ 2.492GHz | Chip | 1 | - | -22dB | 2.72dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

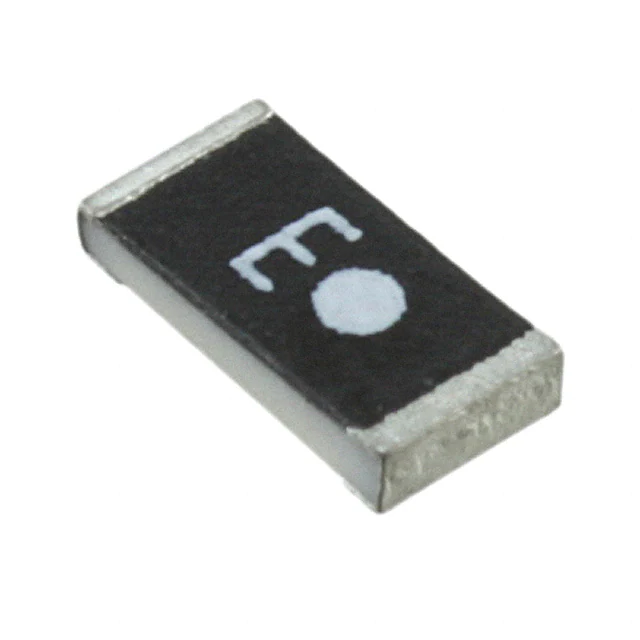

ANT3216A063R2400ARF ANT 2.4GHZ CHIP SOLDER SMD Pulse Electronics |
11,408 | 0.52 |
|
Datasheet |
3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.335GHz ~ 2.565GHz | Chip | 1 | - | -10dB | 1.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, WLAN, Zigbee™ |
|

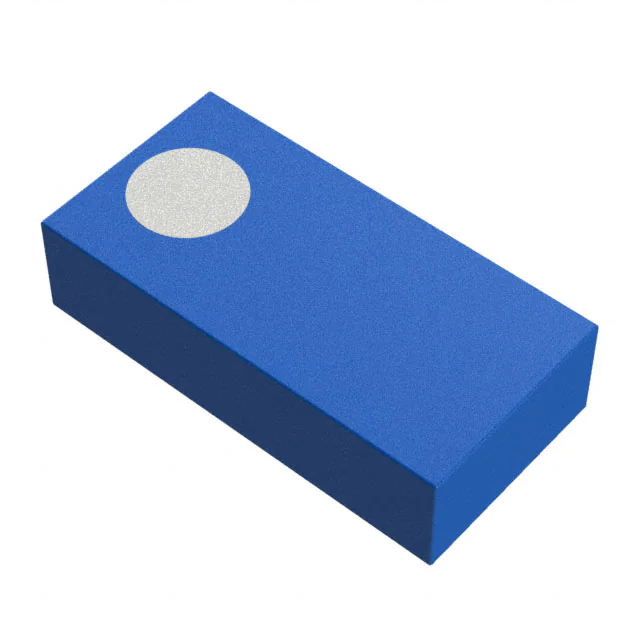

ANT1608LL14R2400ARF ANT 2.45GHZ CHIP SOLDER SMD Pulse Electronics |
22,206 | 0.44 |
|
Datasheet |
1608 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 6 | - | 2dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

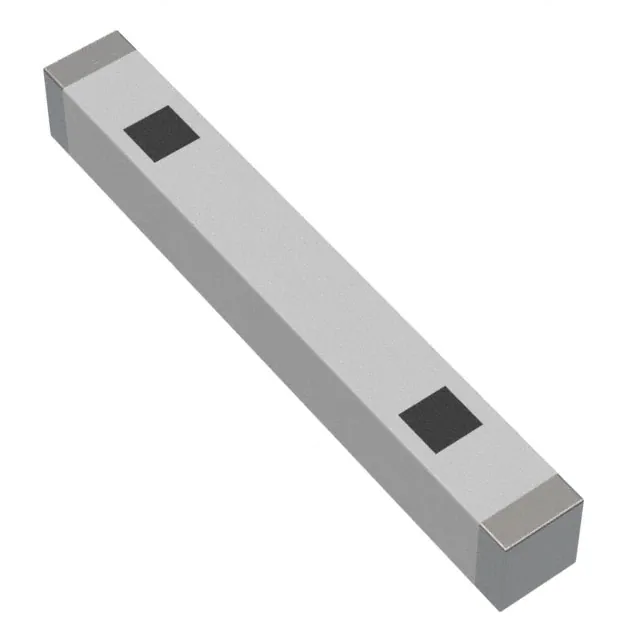

ANT8010LL05R1516ARF ANT 1.575GHZ/1.602GHZ CHIP Pulse Electronics |
8,768 | 0.68 |
|
Datasheet |
8010 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Chip | 2 | - | 10dB | 1.53dBi, 1.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Galileo, GLONASS, GPS |
|
ANT8010LL04R2400ARF ANT 2.4GHZ CHIP SOLDER SMD Pulse Electronics |
16,465 | 0.65 |
|
Datasheet |
8010 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -24.9dB | 5.46dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

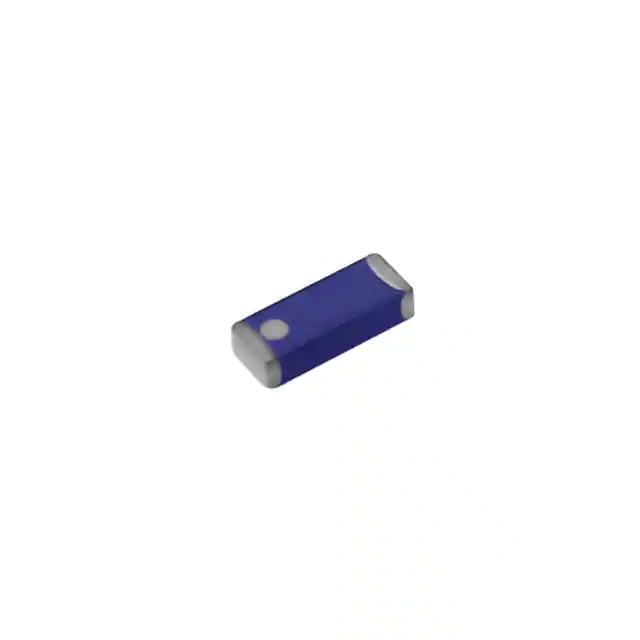

ANT5320LL45R2400AANTENNA CHIP 2.4G HELIX Pulse Electronics |
14,149 | 0.87 |
|
Datasheet |
5320 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | 10dB | 5.22dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

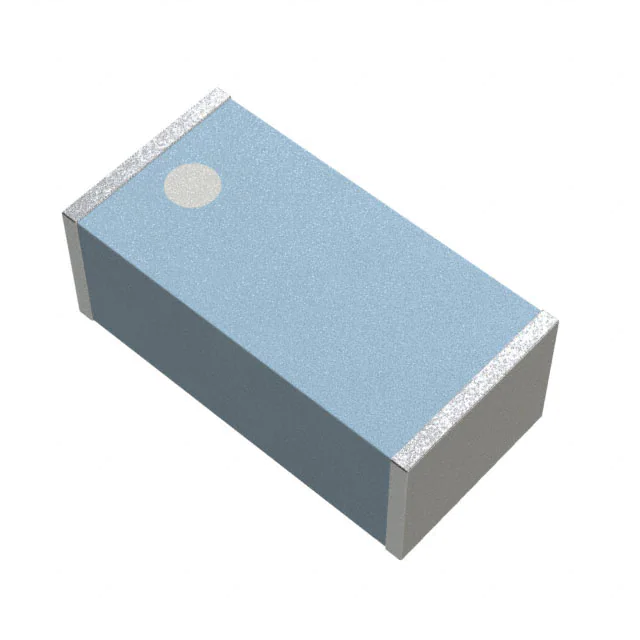

ANT3216LL00R2400ARF ANT 2.45GHZ CHIP SOLDER SMD Pulse Electronics |
34,792 | 0.65 |
|
Datasheet |
3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | 5.05dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
