RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

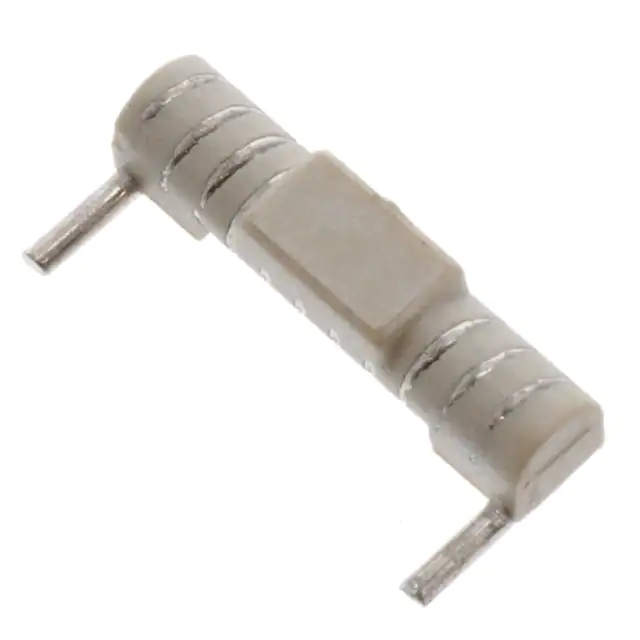

W3139ANTENNA HELIX SMT ISM868/915 Pulse Electronics |
3,229 | 2.13 |
|
Datasheet |
SMD Helical Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 930MHz | Helical | 2 | - | -8dB, -10dB | -0.5dBi, -1dBi, -2.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | ISM |
|

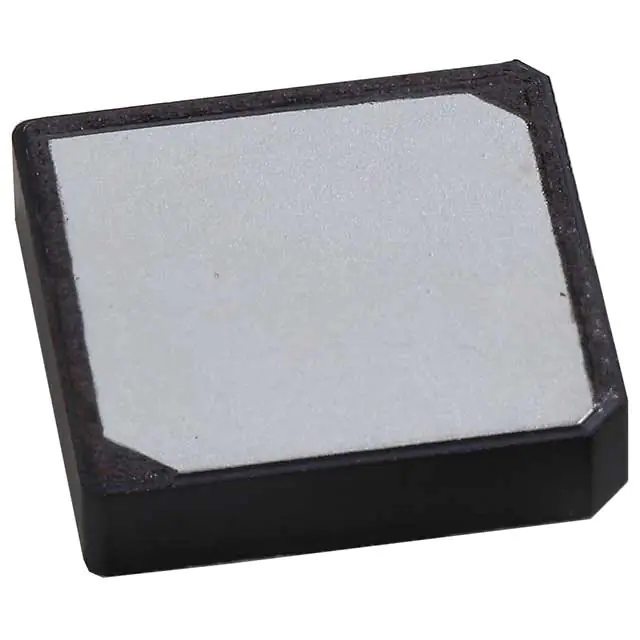

ANT1818B00BT1516SRF ANT 1.575/1.602GHZ CER PATCH Pulse Electronics |
2,524 | 2.98 |
|
Datasheet |
1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -17.801dB, -17.008dB | 1.89dBi, 2.59dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
BTPA0061204G0C4A04ANTENNA FPC 698-2700MHZ Pulse Electronics |
370 | 0.00 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | - | -10dB, -5dB | 4.5dBi, 4.5dBi, 4.5dBi | 1 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.016" (0.40mm) | 4G, LTE |
|

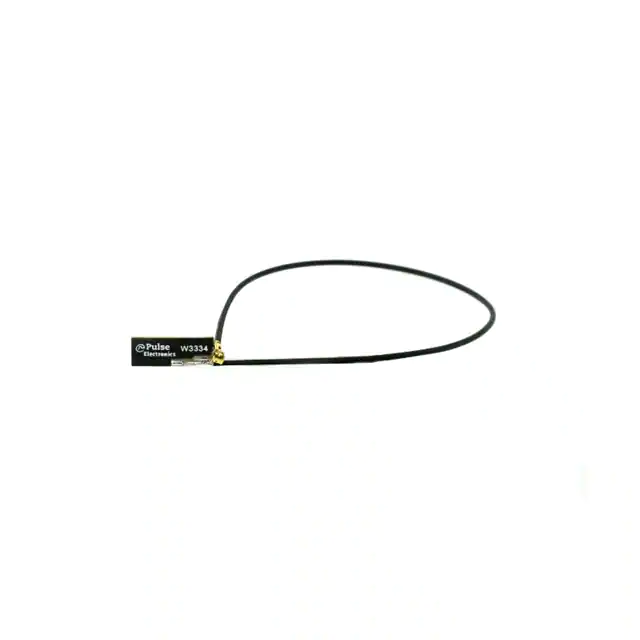

W3334B0100FPC ANTENNA 2.4/5.XGHZ/DSRC Pulse Electronics |
1,411 | 1.64 |
|
Datasheet |
Internal Antenna | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2, 2.5 | - | 4dBi, 5.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|

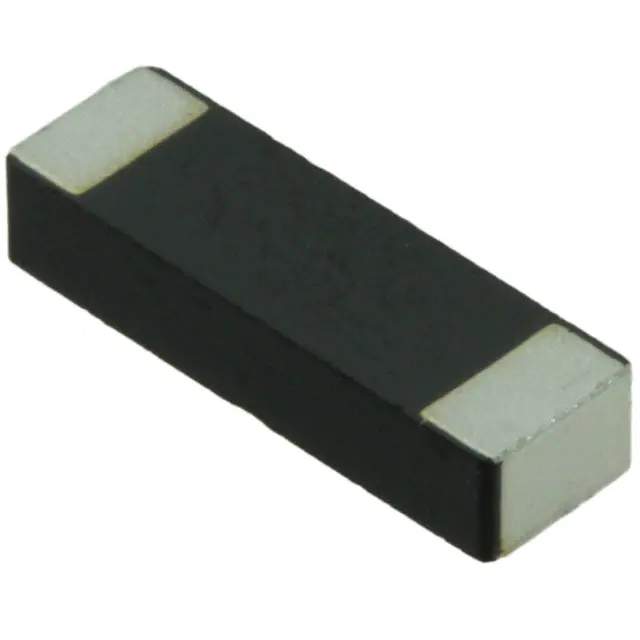

W3010RF ANT 1.575GHZ CHIP SOLDER SMD Pulse Electronics |
42,461 | 1.78 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | -18dB | 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|

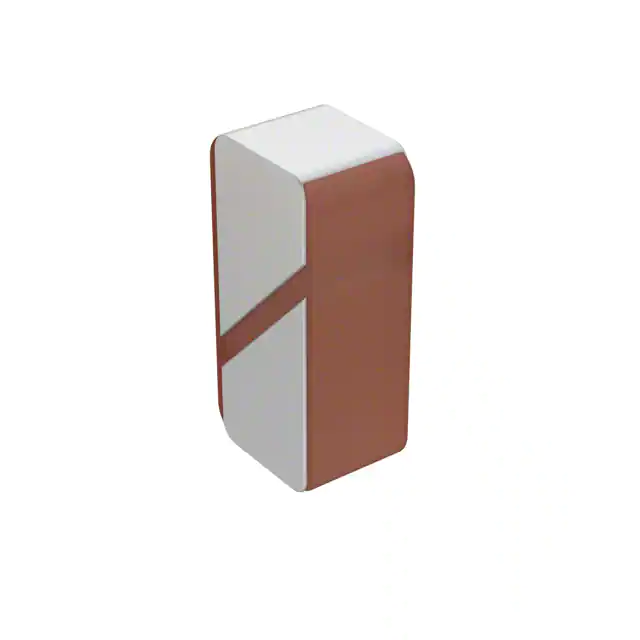

W3011ARF ANT 1.575GHZ CHIP SOLDER SMD Pulse Electronics |
27,509 | 1.69 |
|
Datasheet |
Ceramic Chip Antenna | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.5755GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Chip | 3 | - | -7dB, -10dB, -10dB | 1.3dBi, 2dBi, 2.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
W3011RF ANT 1.575GHZ CHIP SOLDER SMD Pulse Electronics |
8,594 | 1.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | -12dB | 3.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | GPS |
|

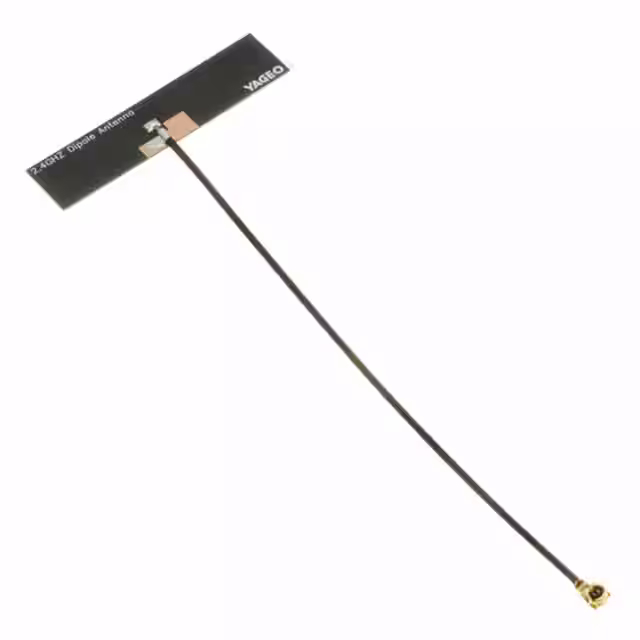

ANTX100P111B24003RF ANT 2.45GHZ PCB TRACE CAB ADH Pulse Electronics |
2,060 | 1.72 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 3.3dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

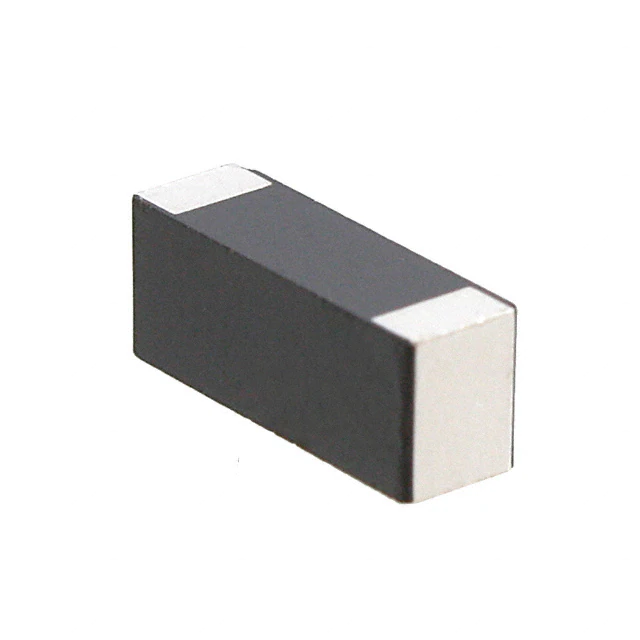

W3013RF ANT 868MHZ CHIP SOLDER SMD Pulse Electronics |
6,619 | 1.78 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 868MHz ~ 870MHz | Chip | 1 | - | -10dB | 1.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
|
ANTX100P113B24003RF ANT 2.45GHZ PCB TRACE CAB ADH Pulse Electronics |
2,866 | 2.63 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 2.8dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
