RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

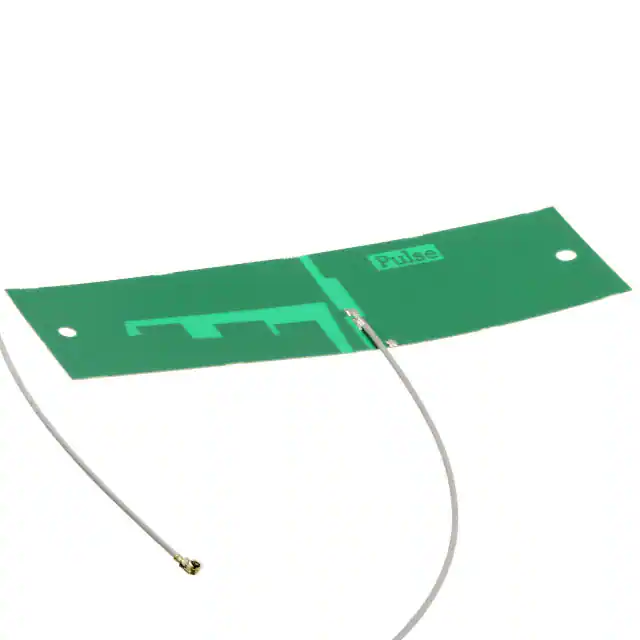

W3554B0140RF ANT 829MHZ/2.2GHZ PCB TRACE Pulse Electronics |
233 | 5.39 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | - | -27.1dB | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | GSM, LTE, W-CDMA |
|

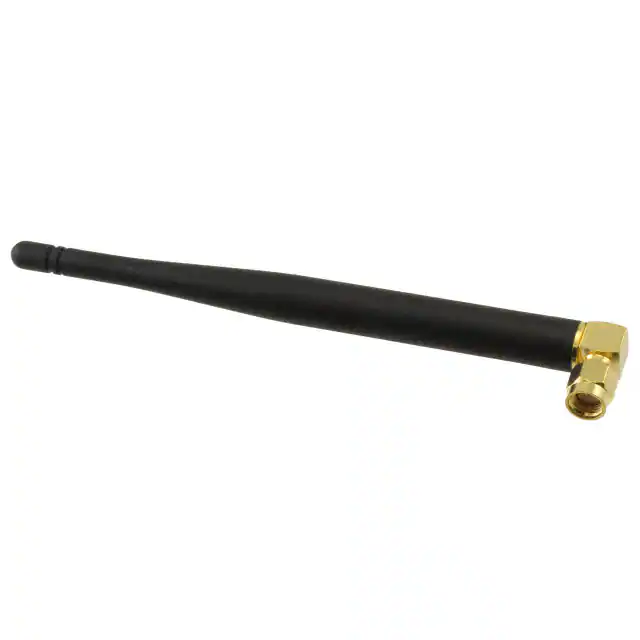

W50292.4-2.5 / 5.15-5.925 GHZ STICK A Pulse Electronics |
798 | 6.32 |
|
Datasheet |
External Antenna | Bulk | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.538GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Whip, Right Angle | 2 | - | -10dB, -4dB | 1.8dBi, 2.55dBi | 1 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 3.071" (78.00mm) | DSRC, WLAN, Zigbee™ |
|

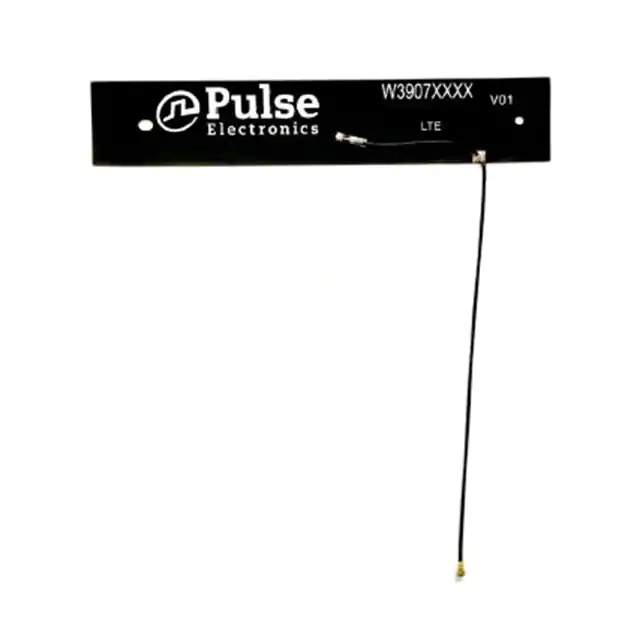

W3907BD0100ANTENNA 0.698-3.6GHZ I-PEXMHF4 Pulse Electronics |
220 | 6.43 |
|
Datasheet |
GEMINI | Bag | Active | Cellular | Wide Band | 2.15GHz | 698MHz ~ 3.6GHz | Flat Patch | 6 | - | -7.5dB | 4.2dBi | 3 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|

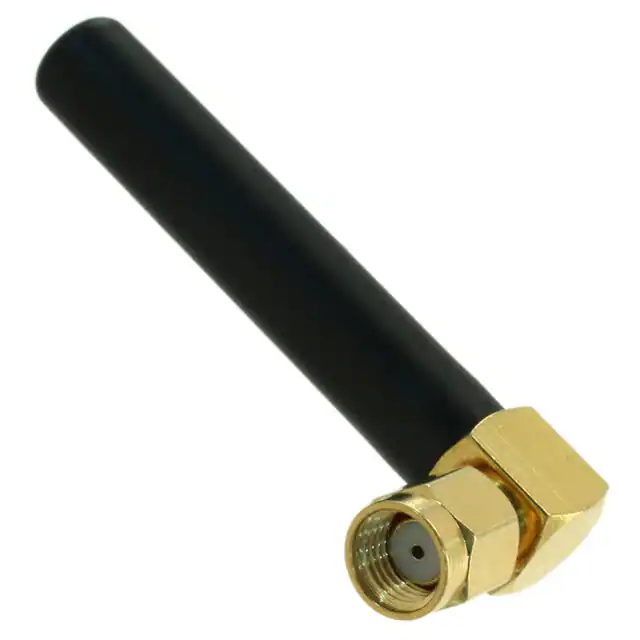

W1902RF ANT 850MHZ/900MHZ WHIP RA Pulse Electronics |
2,701 | 6.46 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.949" (49.50mm) | GSM, WCDMA |
|
W1698-MANT EXT ISM868/915/2.4 SMA Pulse Electronics |
443 | 6.80 |
|
Datasheet |
Stubby Antenna | Tray | Active | Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 915MHz, 2.45GHz | 868MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Whip, Straight | 3 | 3 | - | 0.3dBi, 1.2dBi | 5 W | - | SMA | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | Bluetooth, LoRa, Sigfox, Wi-Fi |
|

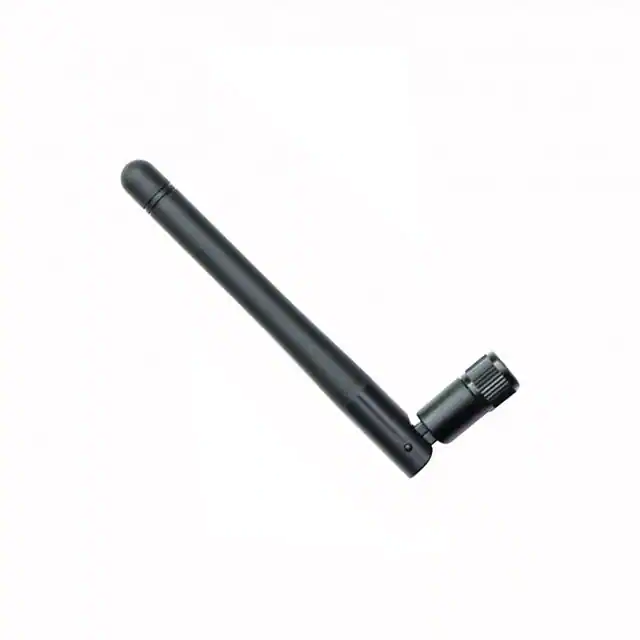

W1076ANT EXT 430-435MHZ SMA MALE Pulse Electronics |
668 | 6.57 |
|
Datasheet |
Stick Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Whip, Tilt | 1 | 1.5 | - | -4dBi | 5 W | - | SMA Male | IP40 | - | - | Connector Mount | 4.252" (108.00mm) | ISM |
|
|
W1698ANT EXT ISM868/915/2.4 SMA Pulse Electronics |
469 | 6.80 |
|
Datasheet |
Stubby Antenna | Tray | Active | Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 915MHz, 2.45GHz | 868MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Whip, Straight | 3 | 3 | - | 0.3dBi, 1.2dBi | 5 W | - | SMA | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | Bluetooth, LoRa, Sigfox, Wi-Fi |
|

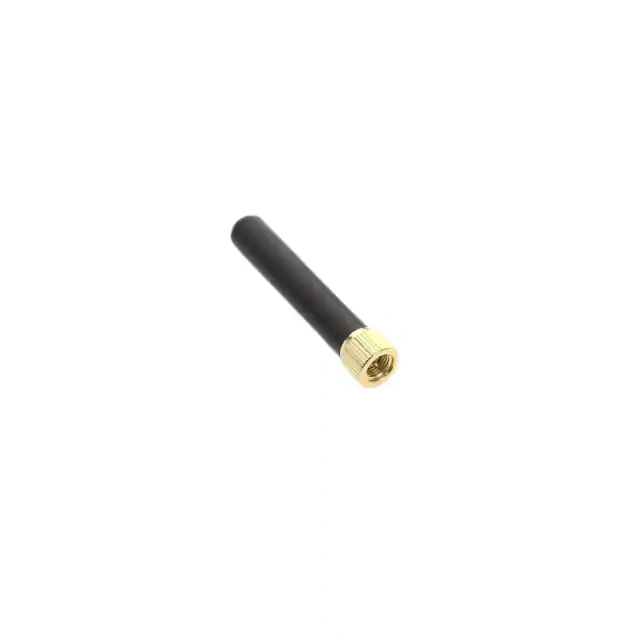

W1696ANT EXT 0.617-3.8GHZ SMA Pulse Electronics |
215 | 6.80 |
|
Datasheet |
Stubby Antenna | Tray | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Whip, Straight | 3 | - | -5dB, -4dB | -0.5dBi, 1dBi, 0dBi | 5 W | - | SMA | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | LTE |
|

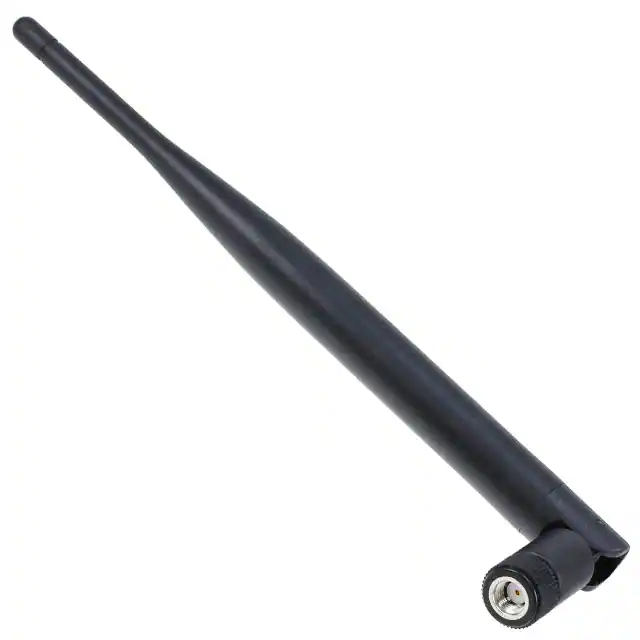

W1038RF ANT 2.4GHZ WHIP TILT 6.6" Pulse Electronics |
816 | 6.43 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | -10dB | 3.8dB | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.760" (197.10mm) | Bluetooth, WLAN, Zigbee™ |
|
|
W5017RF ANT 868MHZ/915MHZ WHIP STR Pulse Electronics |
129 | 8.17 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 868MHz ~ 928MHz | Whip, Straight | 1 | - | -8dB | 2dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 7.047" (179.00mm) | - |
